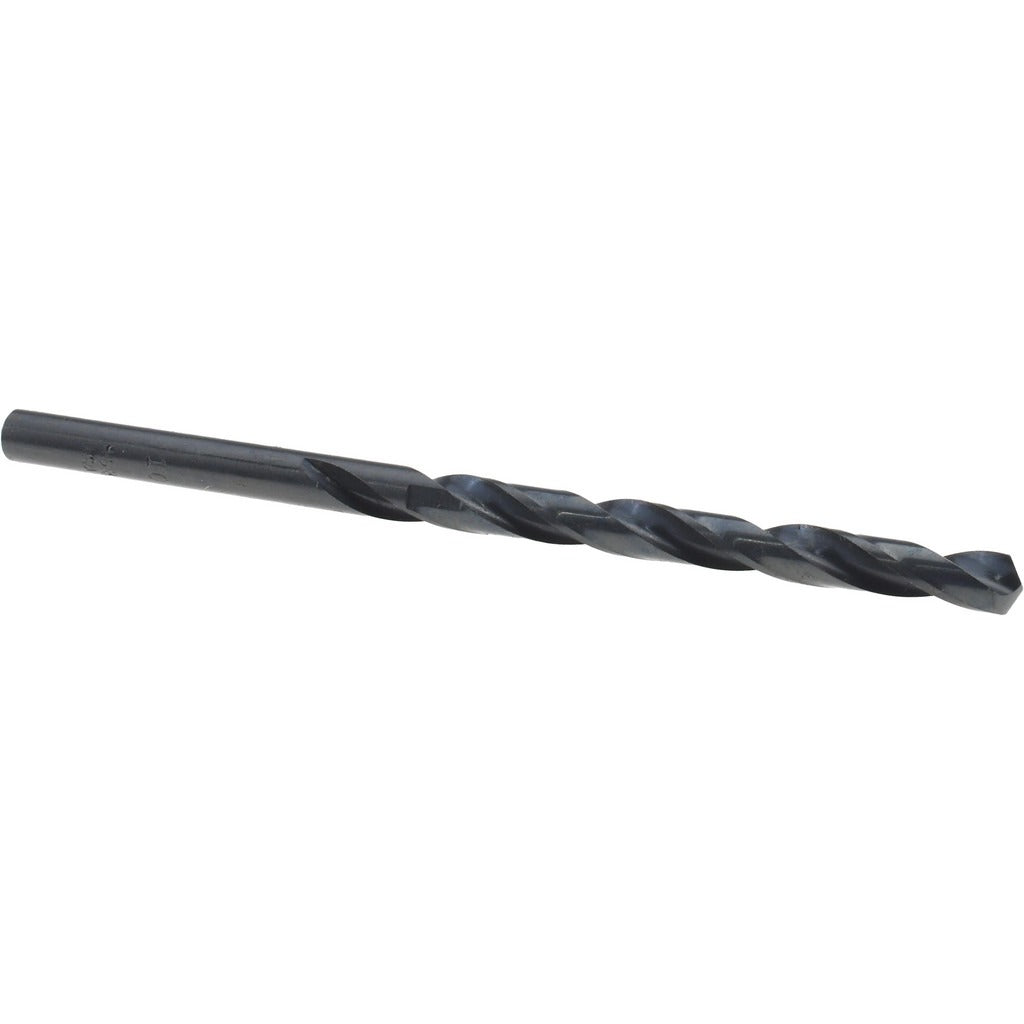

Titan Usa CD40210 Jobber Drill Bit Wire 10 Hss Black Oxide

Product Description

The TITAN USA CD40210 is a wire gauge size 10 jobber-length drill bit designed for general-purpose drilling in metal and alloy applications. Manufactured from high speed steel with a black oxide coating, it provides improved lubricity and corrosion resistance during cutting operations. The bit measures 0.1935 inches in diameter with a 118-degree standard point angle, a 2-flute right-hand spiral flute configuration, and an overall length of 3.625 inches. It is suited for production drilling and maintenance work where a straight-cylindrical shank and consistent tolerances are required.

This drill bit is used in machine shop, fabrication, and field maintenance environments. It fits standard drill chucks and is appropriate for use in drill presses, hand drills, and CNC drilling operations. Primary workpiece materials include steel, stainless steel, cast iron, non-ferrous metals, and superalloys including titanium. The CD40 series is a standard jobber-length line intended for shops and technicians who need reliable, repeatable performance in everyday metal drilling tasks.

Key Features

• Wire gauge size 10 (0.1935 inches) with tight diameter tolerance of -0.0007 to +0.0000 inches
• 118-degree standard point angle for general-purpose entry in ferrous and non-ferrous metals
• Black oxide coating reduces friction and improves chip flow during drilling
• 2-flute right-hand regular spiral with 13xD flute-to-diameter ratio for efficient chip evacuation
• Straight-cylindrical shank compatible with standard drill chucks
• Maximum drilling depth of 2.4375 inches with a flute length of 2.4375 inches

Compatibility

Designed for use in standard drill chucks accepting a 0.1935-inch straight-cylindrical shank, compatible with drill presses, hand drills, and CNC drilling equipment used in metal drilling applications across steel, stainless steel, cast iron, non-ferrous metals, and superalloys.

Installation Notes

Installation is performed by machinists, tool-and-die technicians, and maintenance tradespeople. Secure the shank fully in the chuck and verify runout before beginning a drilling operation. Always power down the machine before inserting or removing the bit. Use appropriate cutting fluid for the workpiece material, particularly when drilling stainless steel or titanium-based alloys, to extend tool life and maintain hole quality.
