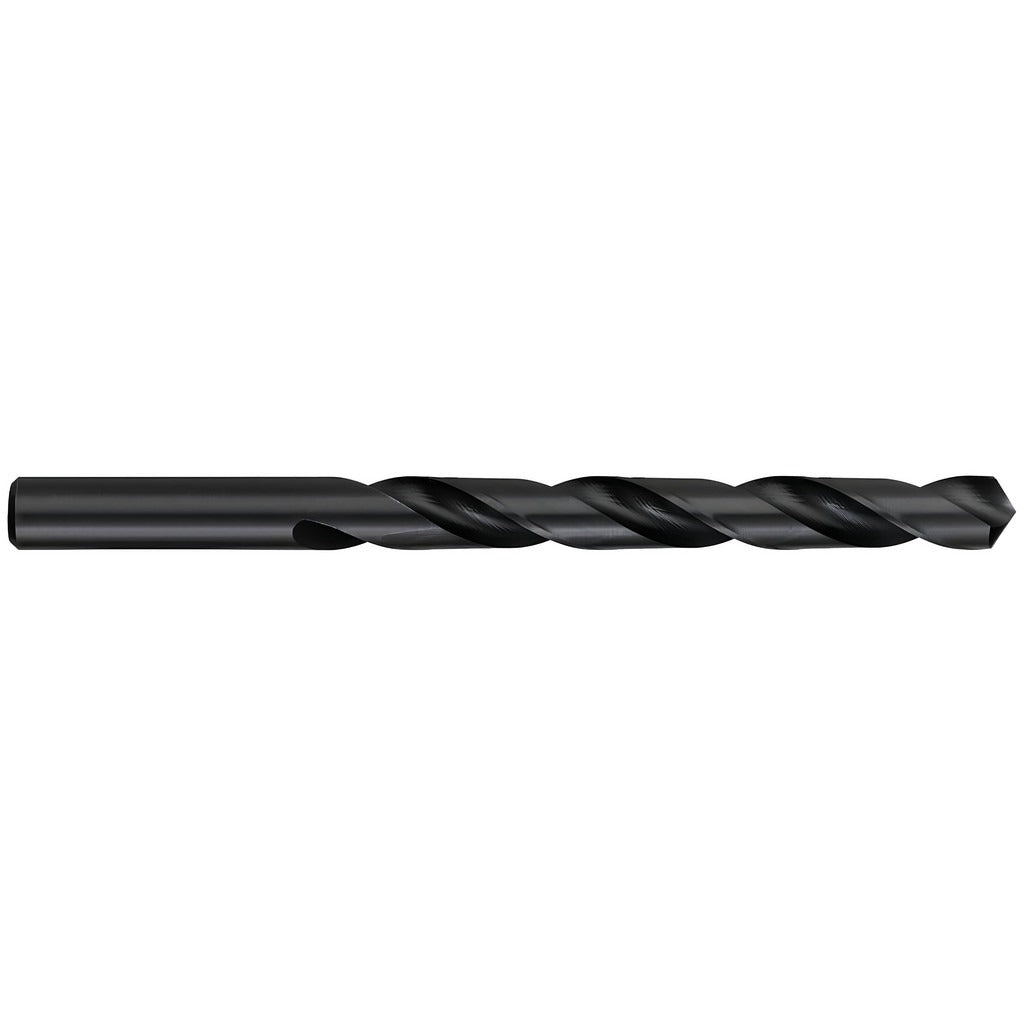

Titan Usa CD40205 Jobber Drill Bit No 5 Hss Black Oxide

Product Description

The TITAN USA CD40205 is a No. 5 wire-size jobber-length drill bit ground from high speed steel and coated with black oxide for improved lubricity and surface hardness. It measures 0.2055 inches in diameter with an overall length of 3.75 inches and a 2.5-inch spiral flute length. The 118-degree standard point angle suits general-purpose drilling across a wide range of workpiece materials. The straight-cylindrical shank seats directly in standard drill chucks without adapters. This bit is suited for machinists, maintenance technicians, and trade professionals performing production or field drilling operations.

The CD40205 is designed for drilling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. It fits into everyday production drilling, fabrication work, and MRO maintenance applications where a wire-gauge-size hole is required. The 12xD flute-to-diameter ratio supports chip evacuation in deeper passes, and the regular spiral geometry works across the full range of listed workpiece materials without requiring a specialty point grind.

Key Features

• No. 5 wire size — 0.2055 inch diameter with tight tolerance of -0.0007 to +0.0000 inches
• 118-degree standard point angle for general-purpose drilling across multiple material groups
• High speed steel construction with black oxide coating for reduced friction and corrosion resistance
• 2-flute regular spiral design with 2.5-inch flute length for effective chip clearing
• Straight-cylindrical shank compatible with standard drill chucks — no adapter required
• Maximum drilling depth of 2.5 inches suits most through-hole and blind-hole applications

Compatibility

Designed as an OEM-style jobber drill bit for use in standard drill chucks accepting a 0.2055-inch straight-cylindrical shank, suitable for drilling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium workpieces.

Installation Notes

Install and remove this bit with the drill or drill press fully powered down and the chuck key secured. Seat the shank fully into the chuck and tighten evenly before starting any cut. Use appropriate cutting fluid or coolant for stainless steel, cast iron, and superalloy applications to extend tool life, noting that this bit does not have a coolant-through design. Follow applicable shop safety standards and wear appropriate eye protection when drilling.
