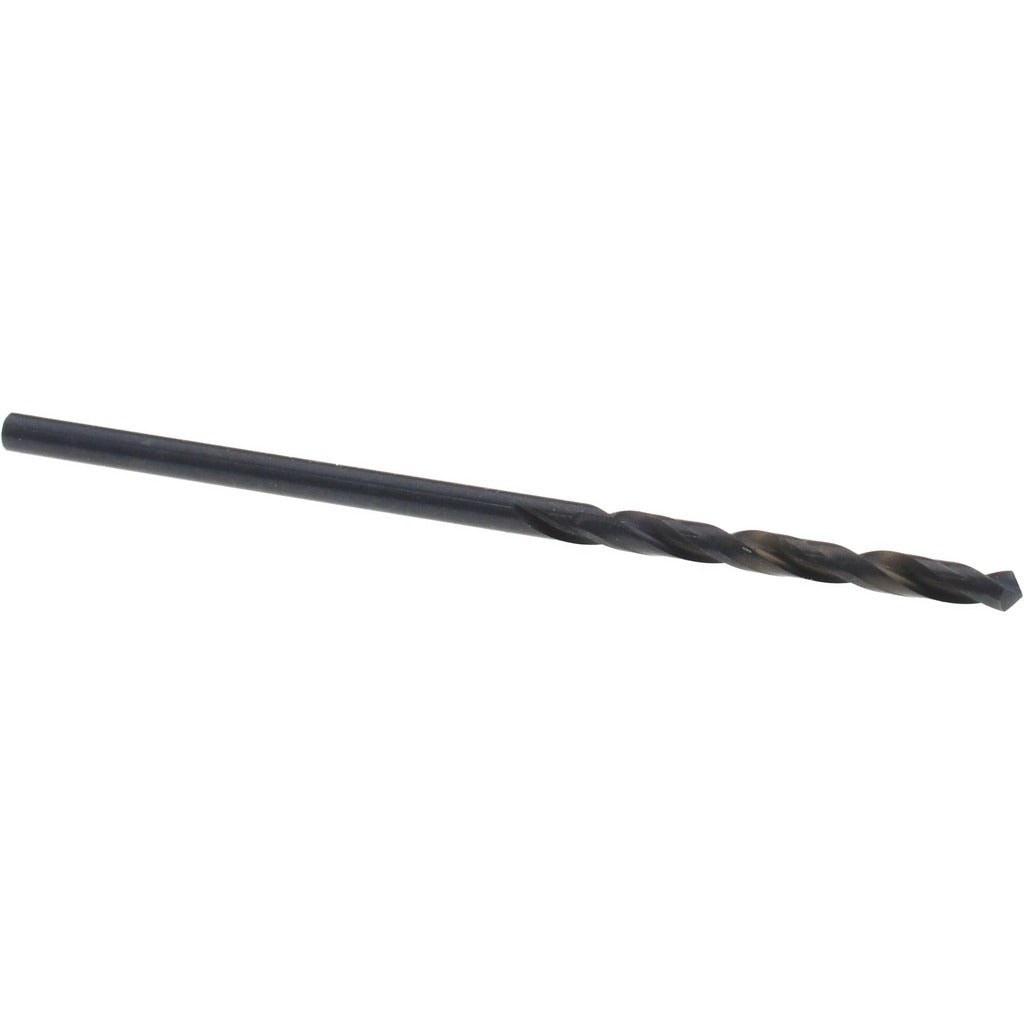

Titan Usa CD40005 Jobber Drill Bit 5/64 Inch Hss

Product Description

The TITAN USA CD40005 is a 5/64 inch (0.0781 inch decimal) high speed steel jobber drill bit designed for general-purpose drilling in metalworking applications. It features a 118-degree standard point angle and a black oxide coating that reduces friction and provides mild corrosion resistance during use. The two-flute spiral design with a regular spiral type promotes chip evacuation and smooth cutting action. At 2 inches overall length with a 1-inch flute length, this bit fits standard drill chucks in handheld drills, drill presses, and CNC equipment. It is sized and constructed for use by machinists, maintenance technicians, HVAC installers, plumbers, and electricians needing precise small-diameter holes in ferrous and non-ferrous metals.

The CD40005 is suited for drilling into steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. It carries a 13xD flute-to-diameter ratio, which is standard for jobber-length bits and accommodates most benchtop and portable drilling setups. The straight-cylindrical shank fits standard three-jaw chucks without adapters. This bit is appropriate for light production work, field repair drilling, and bench work where a small-diameter, short-reach drill is required.

Key Features

• 5/64 inch (0.0781 inch) diameter with a straight-cylindrical shank of matching diameter
• 118-degree standard point angle for general-purpose entry into multiple metal types
• Black oxide coating reduces friction and provides mild surface protection
• Two-flute regular spiral design promotes chip clearing during drilling
• 1-inch maximum drilling depth suitable for through-holes in light stock
• Right-hand cutting direction compatible with all standard drill drivers and presses

Compatibility

Designed as an OEM-style replacement jobber drill bit compatible with standard three-jaw drill chucks accepting straight-cylindrical shanks in the 5/64 inch shank diameter range. Part of the TITAN USA Series CD40 jobber drill line.

Installation Notes

Installation and use should follow safe drilling practices for the workpiece material — secure the workpiece firmly before drilling and use appropriate cutting fluid when drilling stainless steel, cast iron, or superalloys to extend tool life. Ensure the drill press or handheld drill is set to an appropriate speed for the bit diameter and material hardness before advancing the bit. This bit does not support coolant-through operation. Worn or damaged bits should be replaced rather than resharpened given the small diameter.
