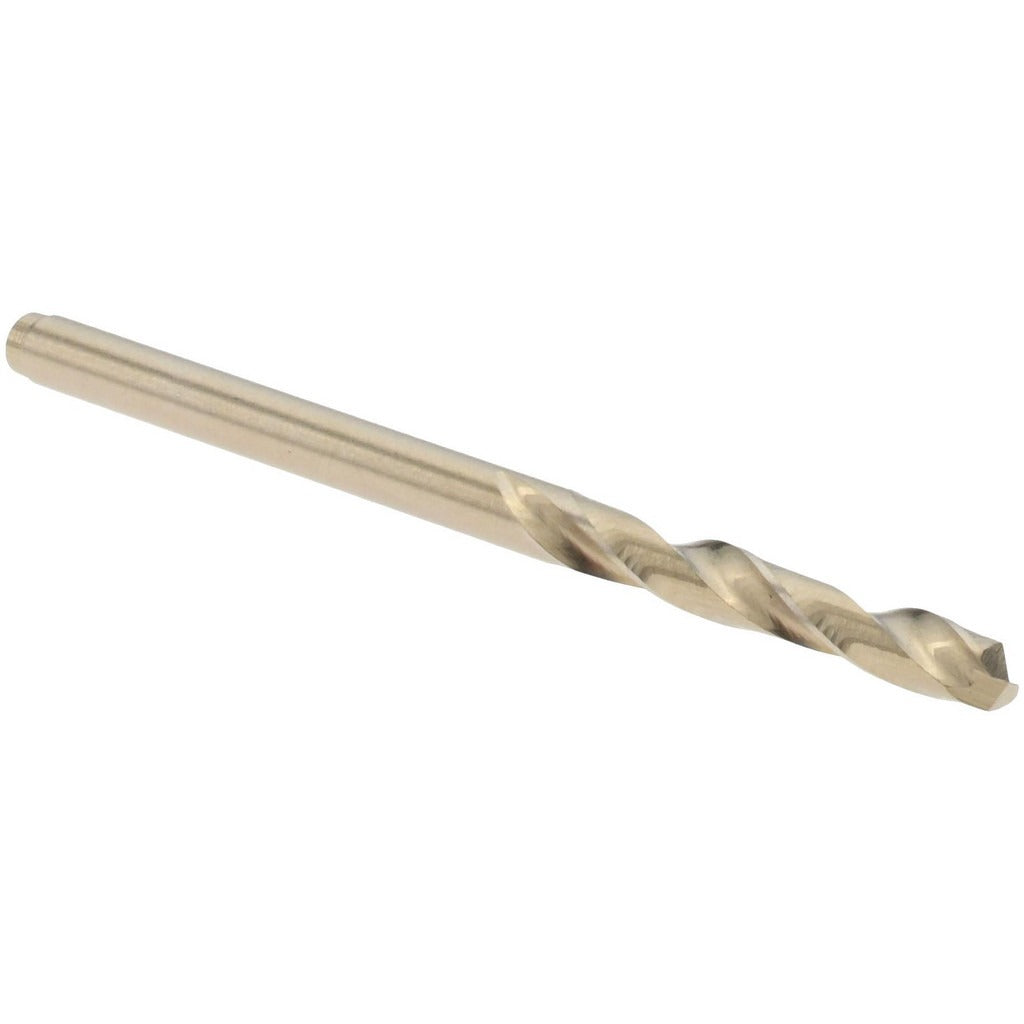

Titan Usa CD32632 Drill Bit Size 32 Cobalt 135 Deg

Product Description

The TITAN USA CD32632 is a screw machine length drill bit designed for high-speed, short-reach drilling in metal fabrication and machining applications. Built from cobalt steel with a bright, uncoated finish, this bit handles hard materials and elevated cutting temperatures without sacrificing edge life. The 135-degree split point reduces walking on entry and requires less thrust than a standard 118-degree point. At 1-7/8 inches overall length, the stub-length design fits tightly into drill presses, CNC machines, and hand-held power drills where clearance is limited. The straight-cylindrical shank seats securely in standard chucks. This is a two-flute, right-hand cutting bit with a spiral flute configuration for efficient chip evacuation.

The CD32632 is suited for production drilling in steel, stainless steel, cast iron, and other ferrous metals where standard high-speed steel bits wear prematurely. The wire gauge size 32 corresponds to 0.1160 inches decimal, making it a common choice for clearance holes, pilot holes, and tapping prep in light manufacturing, sheet metal shops, and general machine work. The heavy-duty grade and NAS 907 Type J specification designation make it appropriate for aerospace-adjacent and industrial maintenance applications where dimensional accuracy and material consistency are required.

Key Features

• Cobalt construction withstands high cutting temperatures for extended tool life in hard metals
• 135-degree split point reduces thrust requirement and minimizes bit walking on entry
• Screw machine (stub) length of 1-7/8 inches OAL provides rigidity and fits tight-clearance setups
• Spiral flute with 7/8-inch flute length promotes efficient chip removal
• Right-hand cutting direction, straight-cylindrical shank for universal chuck compatibility
• Meets NAS 907 Type J specification for use in precision and industrial applications

Compatibility

Designed as an OEM-style replacement screw machine length drill bit suitable for standard drill chucks and collet holders accepting a straight-cylindrical shank in the 0.1000 to 0.1500 inch drill bit size range.

Installation Notes

Installation and use should be performed by machinists, tool-and-die technicians, or qualified trades professionals familiar with rotary cutting tools. Ensure the drill press, CNC spindle, or hand-held drill is powered off and fully stopped before inserting or removing the bit. Secure the shank fully in the chuck and confirm runout is within acceptable limits before initiating a cut. Use appropriate cutting fluid for hard or ferrous materials to preserve edge life and maintain hole tolerance.
