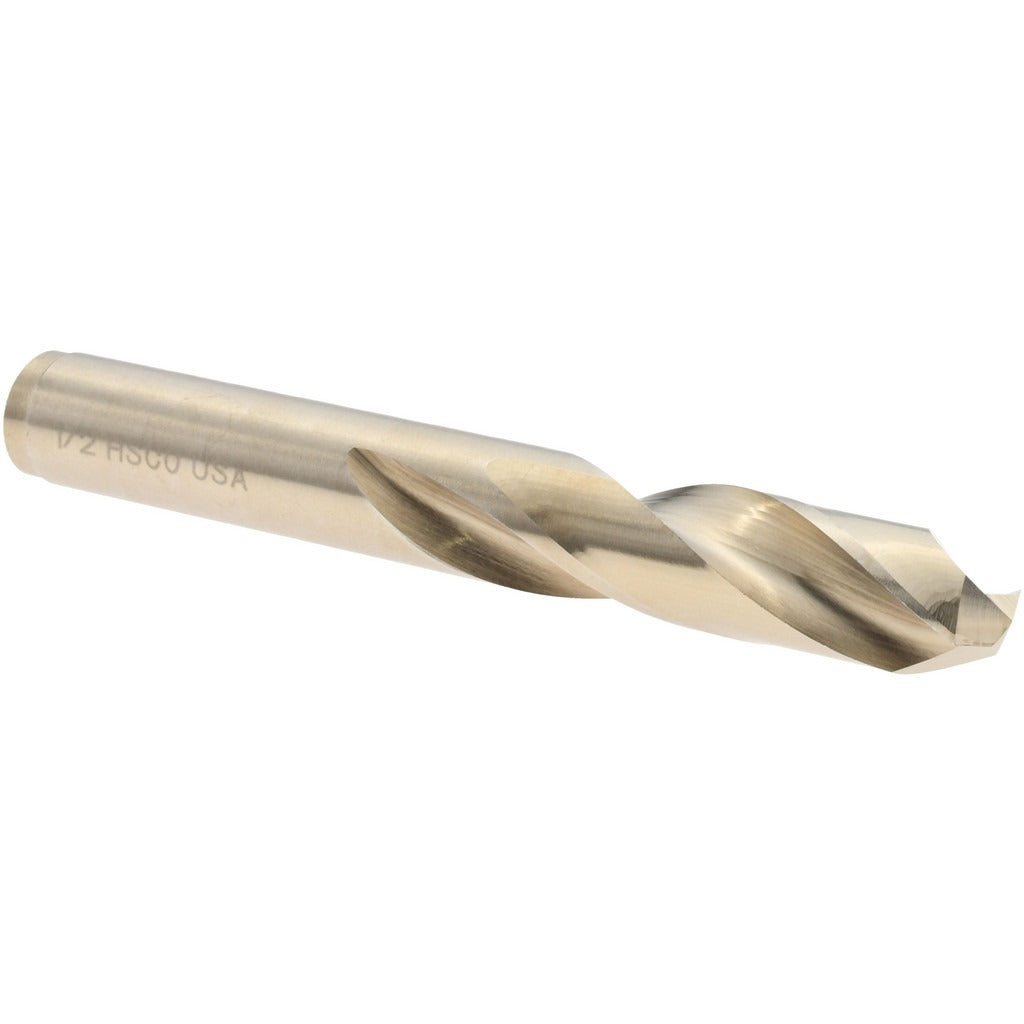

Titan Usa CD32532 Cobalt Screw Machine Drill Bit 1/2 in

Product Description

The TITAN USA CD32532 is a cobalt screw machine length drill bit designed for demanding metal drilling applications. It measures 1/2 inch in diameter with an overall length of 3.75 inches and a flute length of 2.25 inches. The 135-degree split point reduces walking on startup and allows drilling without a center punch on most materials. Built to a heavy-duty grade and conforming to NAS 907 Type J specification, this bit handles tough ferrous metals, stainless steel, and high-alloy materials where standard high-speed steel bits fail. The right-hand spiral flute evacuates chips efficiently during through-hole and blind-hole operations. Machinists, maintenance technicians, and fabricators install it in standard drill chucks and CNC drilling operations.

This bit is suited for production drilling in job shops, maintenance and repair operations, and fabrication environments where short-flute rigidity is an advantage over jobber-length bits. Screw machine length geometry reduces deflection in deep setups and tight clearance situations. It works in handheld drills, drill presses, and machining centers. The bright uncoated finish makes it compatible with cutting oils and coolants used in metal drilling. It is a practical choice wherever cobalt cutting performance is needed at a standard 1/2-inch diameter.

Key Features

• Cobalt construction handles stainless steel, hardened alloys, and difficult-to-machine metals
• 135-degree split point reduces thrust and eliminates center-punch requirement on most surfaces
• Screw machine length body provides greater rigidity and reduced deflection versus jobber-length bits
• Right-hand spiral flute with 2.25-inch flute length promotes efficient chip evacuation
• Bright uncoated finish is compatible with a wide range of cutting fluids and coolants
• Meets NAS 907 Type J specification for consistent dimensional and performance standards

Compatibility

Designed as a heavy-duty replacement screw machine length drill bit for 1/2-inch diameter applications in the Series 325 product family, conforming to NAS 907 Type J specification with a drill bit size range of 0.5000 to 0.6000 decimal inches.

Installation Notes

Machinist or maintenance technician installation is standard for drill bits of this type. Secure the shank fully in a drill chuck or collet before operation and confirm the workpiece is clamped or fixtured. Apply appropriate cutting fluid or coolant to extend tool life when drilling ferrous metals. Inspect the cutting edges for wear before each use and replace the bit if chipping or dulling is observed to avoid workpiece damage.
