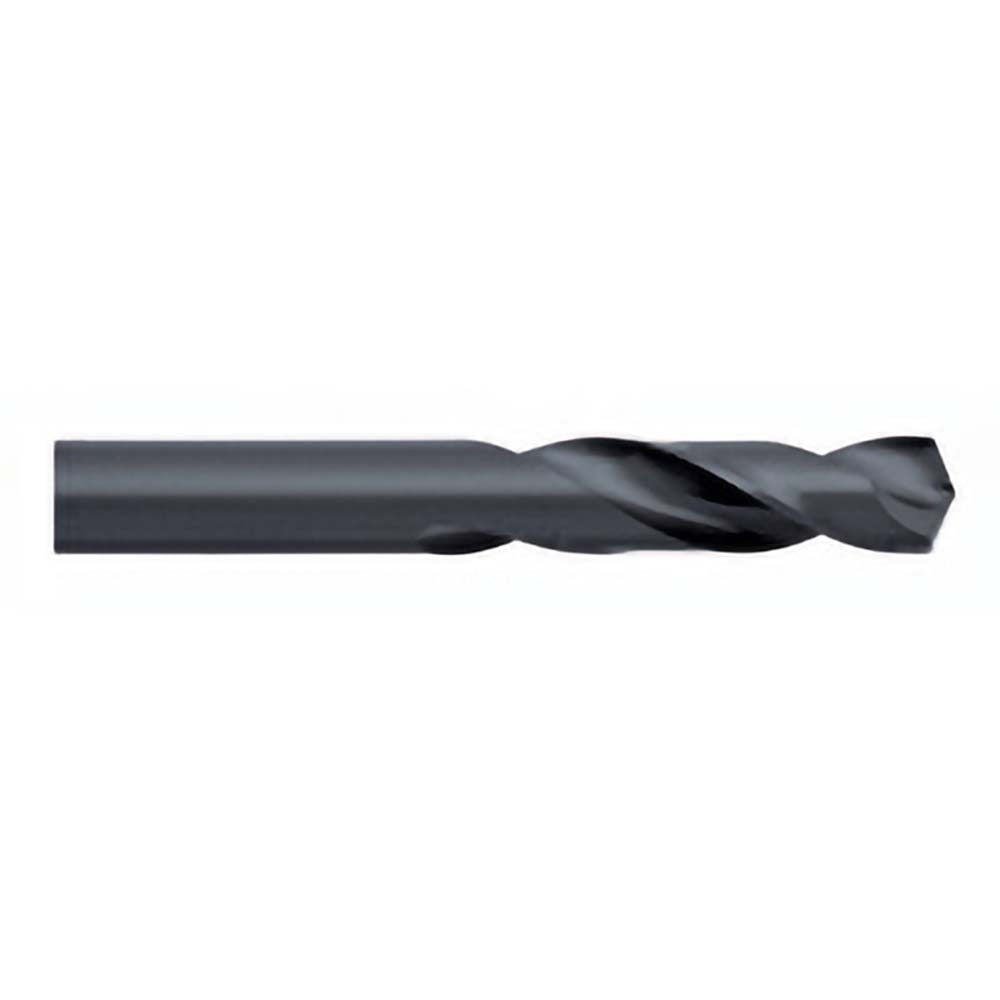

Titan Usa CD30206 Screw Machine Drill Bit Size 6 Hss

Product Description

The TITAN USA CD30206 is a screw machine length drill bit designed for high-speed drilling in metal, wood, and composite materials. Built from high-speed steel with a black oxide coating, it resists heat and corrosion during demanding cutting operations. The 135-degree split point reduces walking and requires less thrust to start a hole without a center punch. At 2-3/8 inches overall length with a 1-1/4 inch spiral flute, this stub-length bit delivers added rigidity compared to jobber-length bits, making it well suited for work in tight clearances. Machinists, tool-and-die workers, and maintenance mechanics are the primary users.

This bit fits screw machine applications, CNC drilling operations, drill press work, and hand-held power tool use where a short, stiff bit reduces deflection. The straight cylindrical shank seats in standard three-jaw drill chucks without modification. Wire size 6 corresponds to a decimal diameter of 0.2040 inches, placing it in the 0.2000 to 0.2500 inch size range. It is well suited for production drilling of close-tolerance holes in ferrous and non-ferrous metals in both shop and field environments.

Key Features

• 135-degree split point reduces bit walking and lowers required entry thrust
• High-speed steel construction handles elevated cutting temperatures in metal drilling
• Black oxide finish provides corrosion resistance and reduces friction at the cutting edge
• Screw machine (stub) length adds rigidity and minimizes deflection in tight spaces
• Two-flute spiral design clears chips efficiently during through-hole drilling
• Straight cylindrical shank fits standard drill chucks without adapters

Compatibility

Designed as an OEM-style replacement or direct-use screw machine drill bit for standard three-jaw drill chucks accepting straight cylindrical shanks in the 0.2000 to 0.2500 inch decimal inch size range.

Installation Notes

Installation of this bit is performed by machinists and maintenance technicians using a keyed or keyless drill chuck on a drill press, CNC machine, or handheld power drill. Secure the shank fully into the chuck before operation and verify the bit runs true before engaging the workpiece. Use appropriate cutting fluid for ferrous metals to extend bit life and maintain hole quality. Always wear eye protection and secure the workpiece before drilling.
