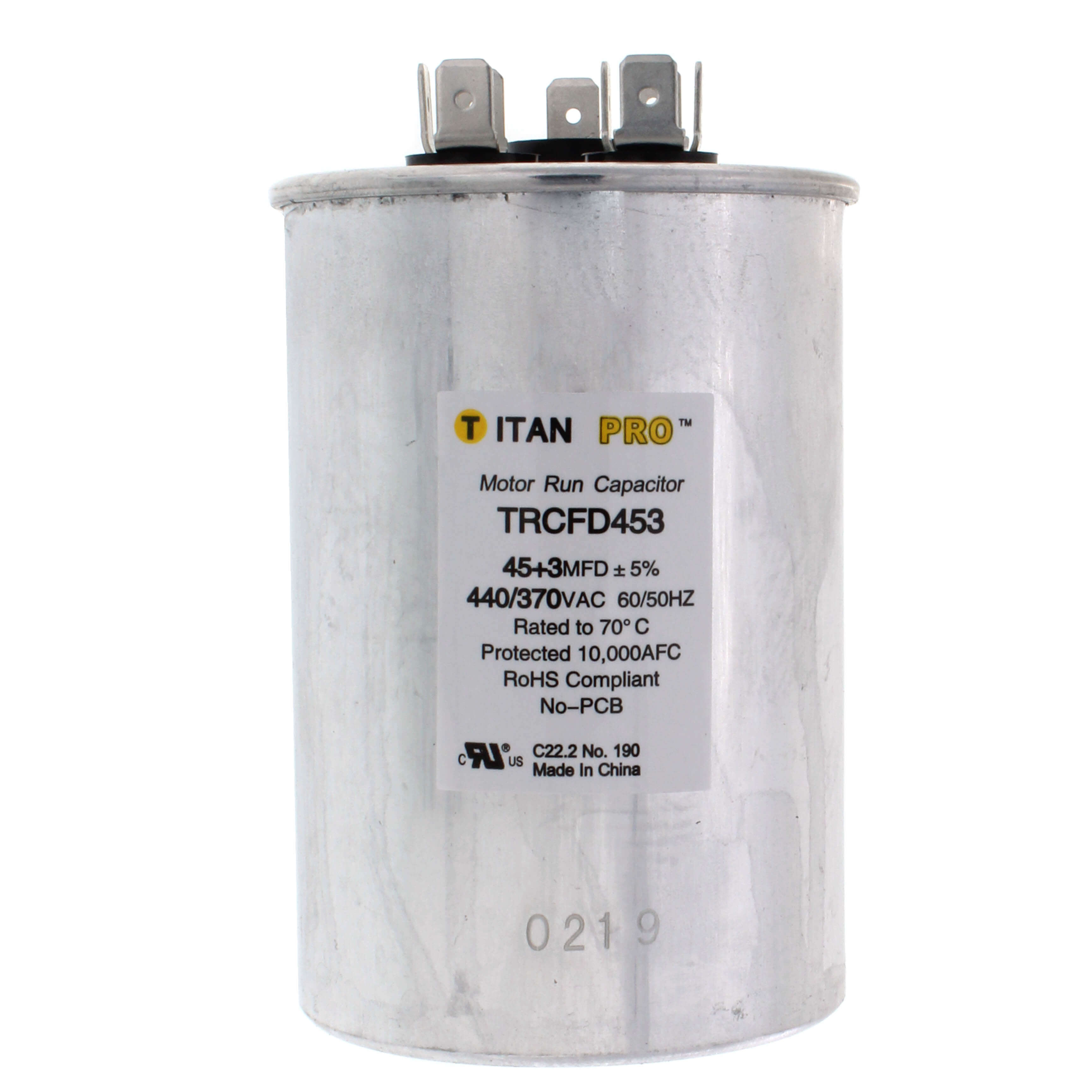

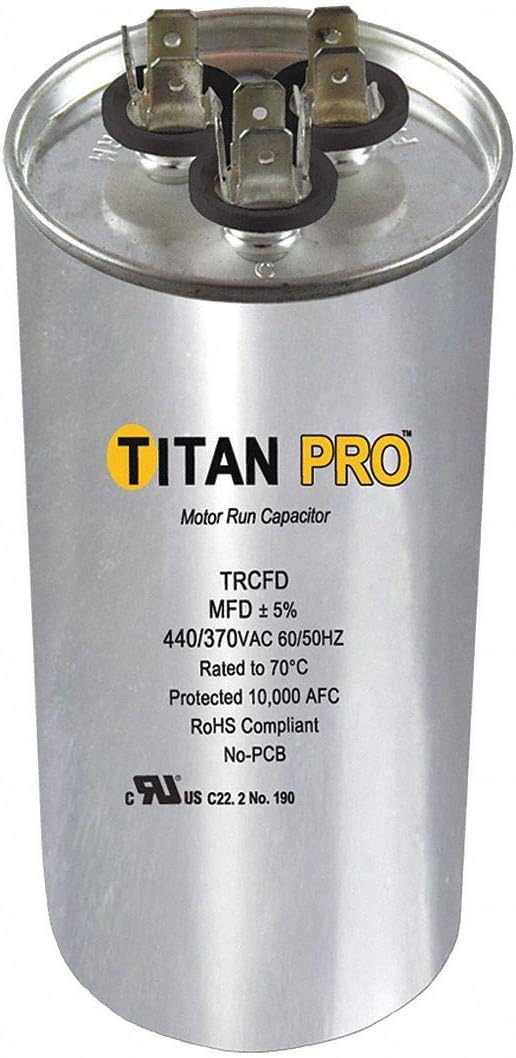

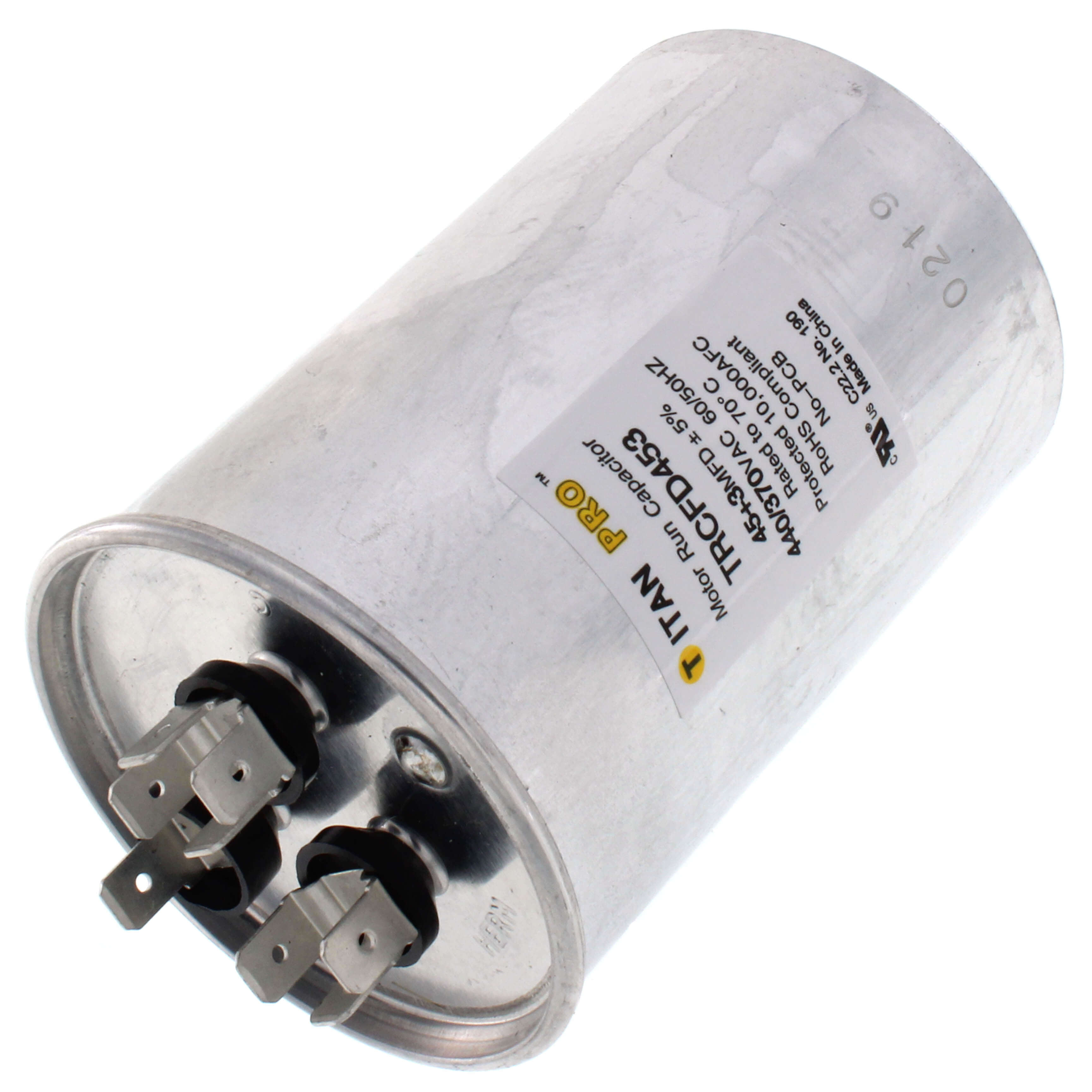

Titan Pro TRCFD453 Round Motor Dual Run Capacitor 45/3 Microfarad Rating 370-440VAC Voltage

Product Description

The TITAN PRO TRCFD453 is a round motor dual run capacitor with a 45/3 microfarad rating and 370-440VAC voltage. These dual run motor capacitors contain two capacitance values in a single unit. They can replace two single run capacitors and connect to two motors, such as a blower and a compressor in HVAC applications.

• Round shape
• Contains two capacitance values in a single unit
• Can replace two single run capacitors

Product Highlights

This dual run capacitor is ideal for HVAC applications, connecting to two motors such as a blower and compressor.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCFD453
• Country of Origin: China

Technical Specifications

• Shape: Round
• Material: Aluminum
• Maximum Voltage: 440 Volts
• Operating Voltage: 440 Volts
• Item: Motor Run Capacitor
• Microfarad Rating: 45/3
• Voltage: 370-440V
• Frequency: 60/50 Hz
• Diameter: 2-1/2"
• Case Height: 3-1/8"
• EIA UL Base: T
• Terminal Type: 1/4" Male Quick-Connect
• Temperature Range: -40 Degrees to 70 Degrees C
• Case Material: Aluminum
• Cover Material: Steel
• Standards: UL Recognized (E185318)
• Product Type: Dual Run Capacitor
• Housing Shape: Round
• Operating Temperature - Minimum: -40 °C
• Operating Temperature - Maximum: 70 °C
• Housing Height: 3-3/4 in
• Terminal Gender: Male
• Terminal Tab Width: 1/4 in
• Number of Pieces: 1
• Terminal Connection Type: Quick Connect
• Number of Terminals: 3
• Sub-brand: Titan Pro
• EIA Tolerance Code: A
• Brand: Titan Pro
• MPN: TRCFD453
• Model: TRCFD453
• Mfd: 45/3
• Volts: 440/370
