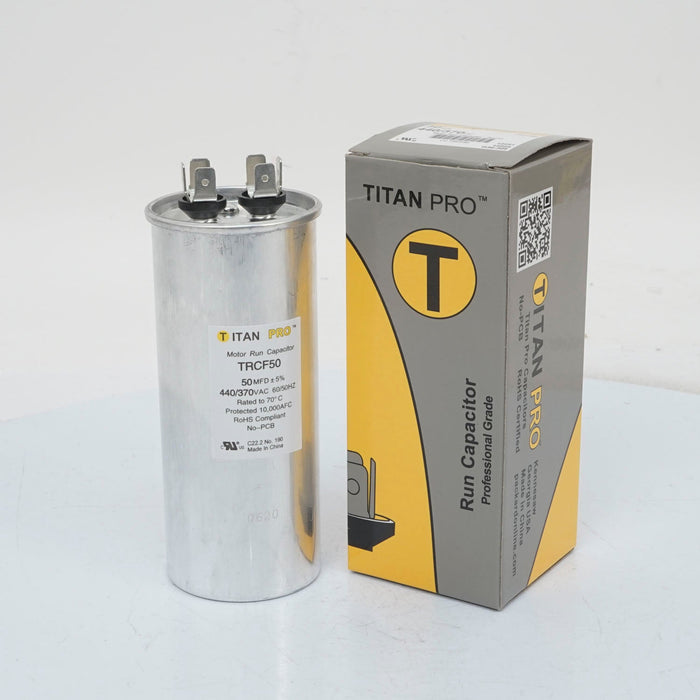

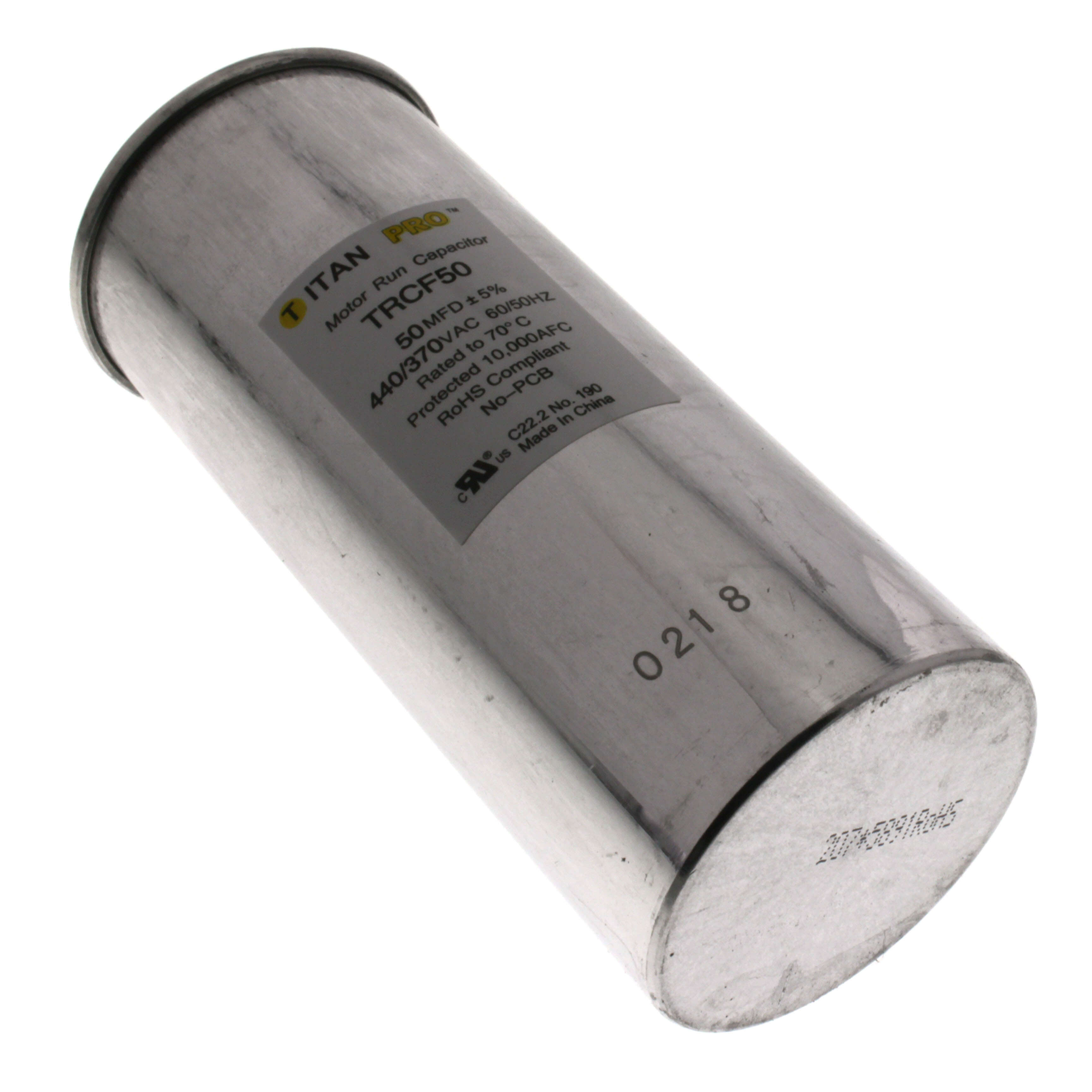

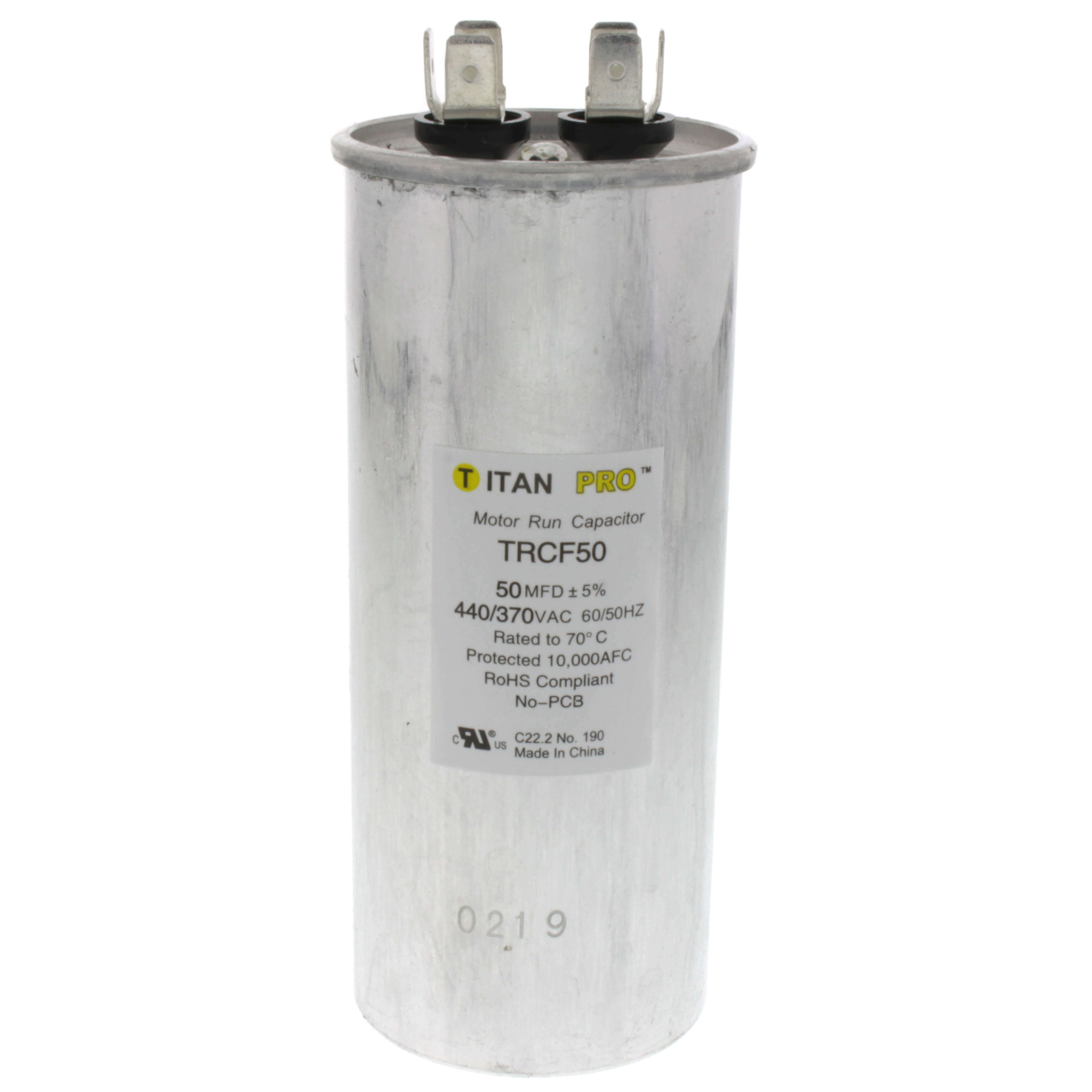

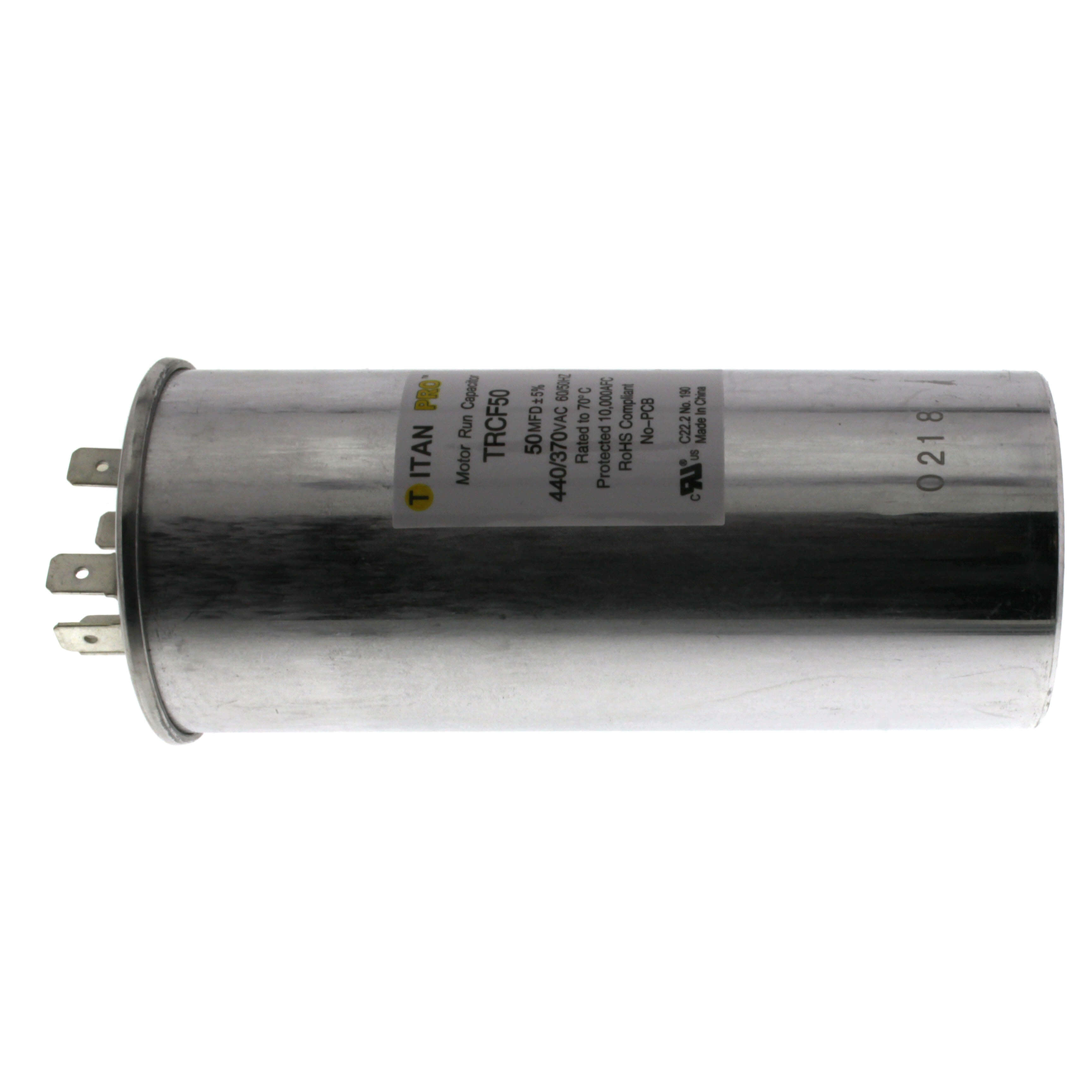

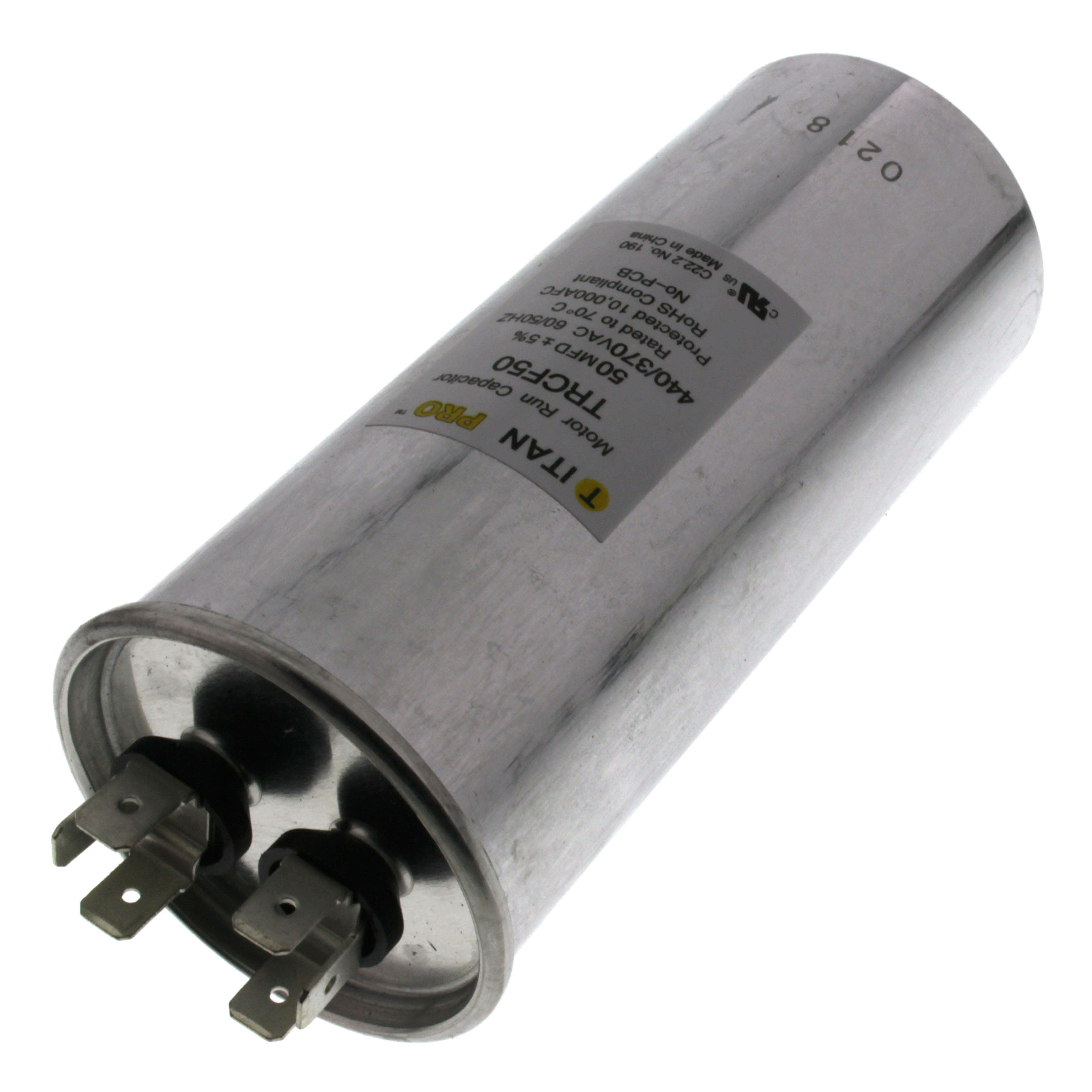

Titan Pro TRCF50 Round Motor Run Capacitor 50 Microfarad 370-440VAC

Product Description

The TITAN PRO TRCF50 is a round motor run capacitor with a 50 microfarad rating and 370-440VAC voltage. It is built to meet the toughest international standards for AC motor run capacitors including EIA-456-A and IEC 60252-1:2001. The capacitor has an operational life of 60,000 hours and uses a proprietary bio-degradable oil.

• Rated for 50 microfarads
• Voltage rating of 370-440VAC
• Round shape

Product Highlights

This TITAN PRO capacitor is designed for motor run applications, offering long life and reliable performance.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCF50
• Country of Origin: China

Technical Specifications

• Microfarad Rating: 50
• Voltage: 440/370V AC
• Hz: 60/50
• Shape: Round
• Standards: UL Recognized (E185318)
• Capacitor Voltage: 370-440VAC
• Case Material: Aluminum
• Cover Material: Steel
• Terminal Type: 1/4" Male Quick-Connect
• Temp. Range: -40 Degrees to 70 Degrees C
• Motor Capacitor Type: Motor Run Capacitor
• EIA UL Base: S
• MFD: 50
• Product Type: Capacitor
• Frequency: 60/50 Hz
• Item: Motor Run Capacitor
• Operating Temperature Range: -40 to 70
• Terminals: Standard blade terminals
• Tolerance: +/- 5%
• Rated: 50 MFD/uf
• Oil Type: Soy Bean Based
