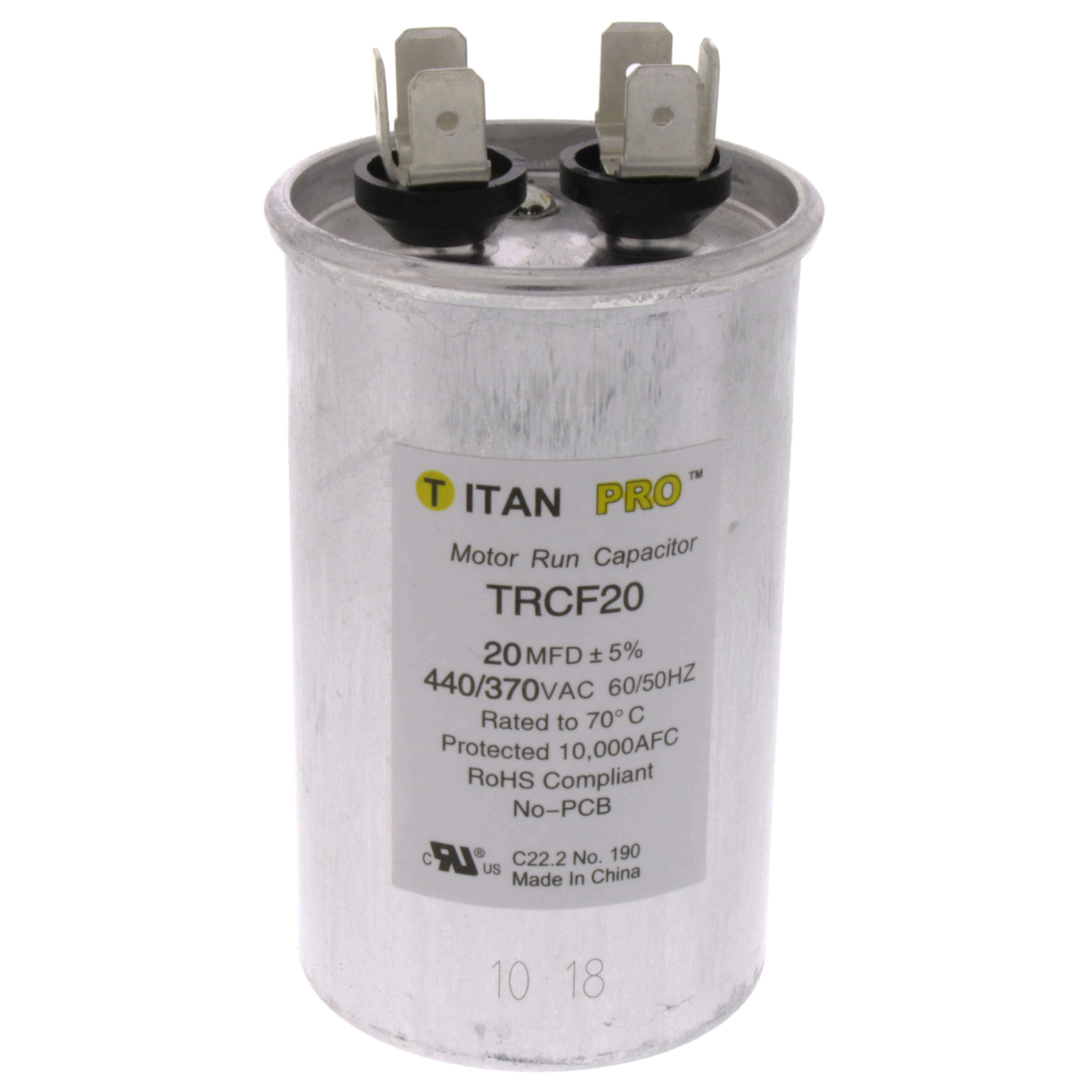

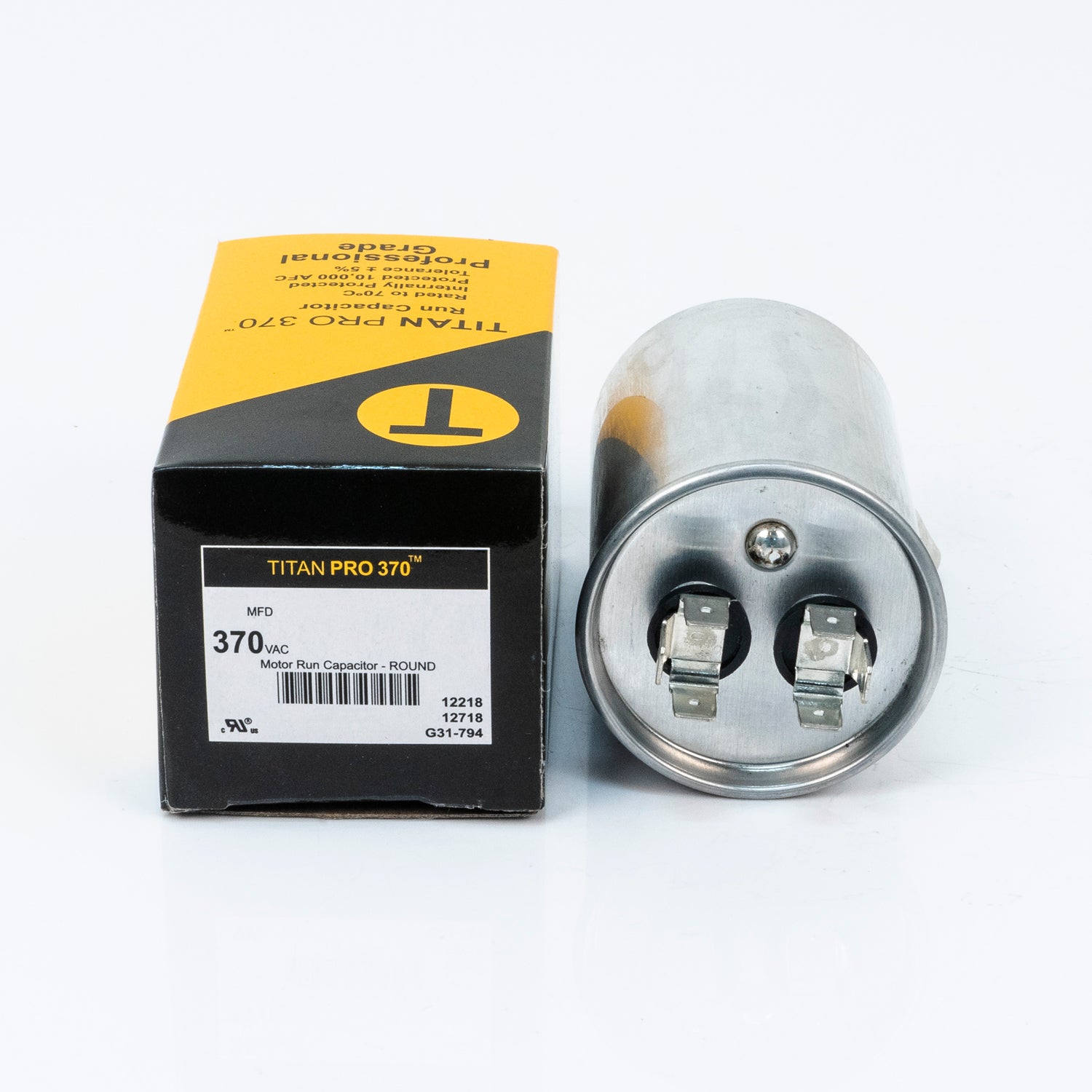

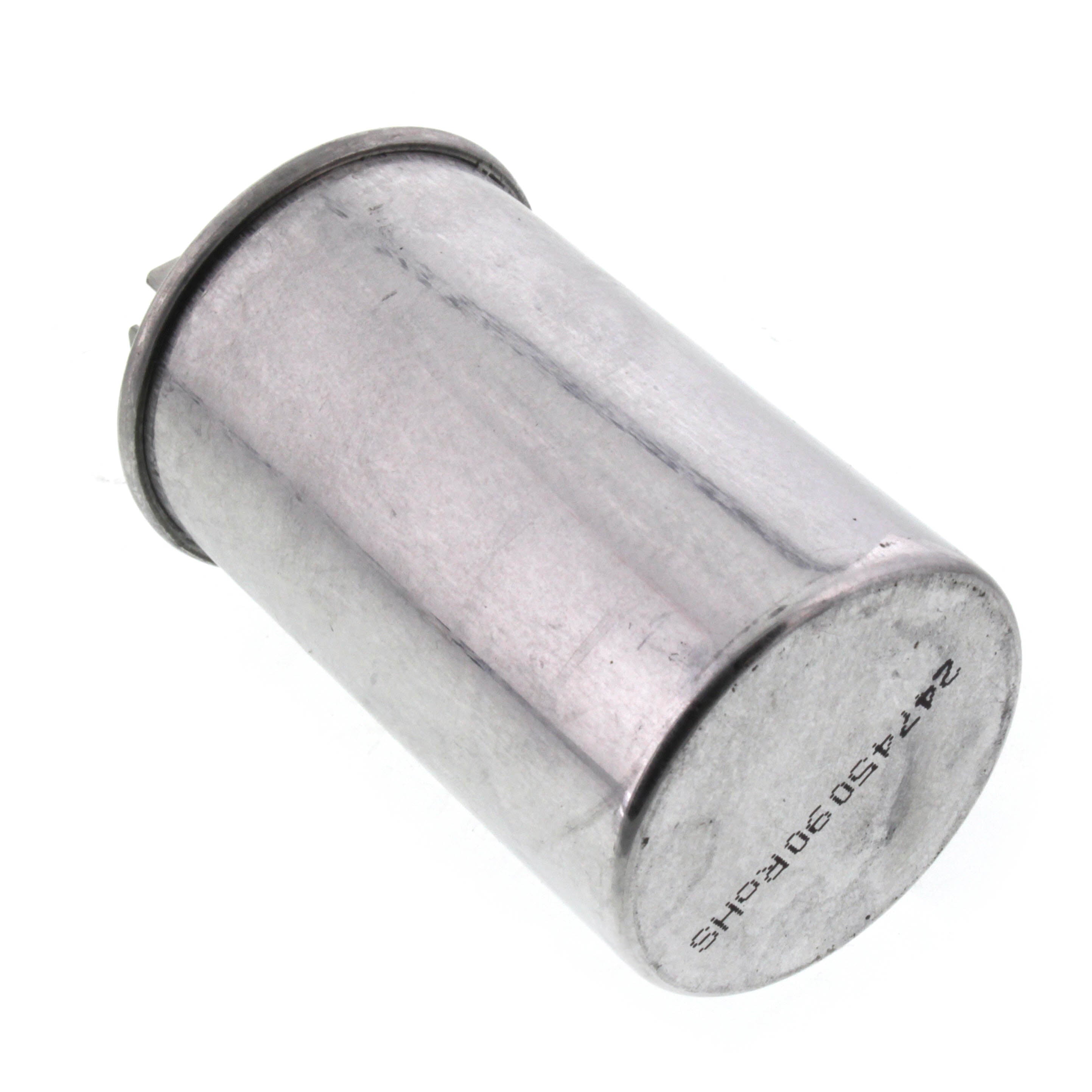

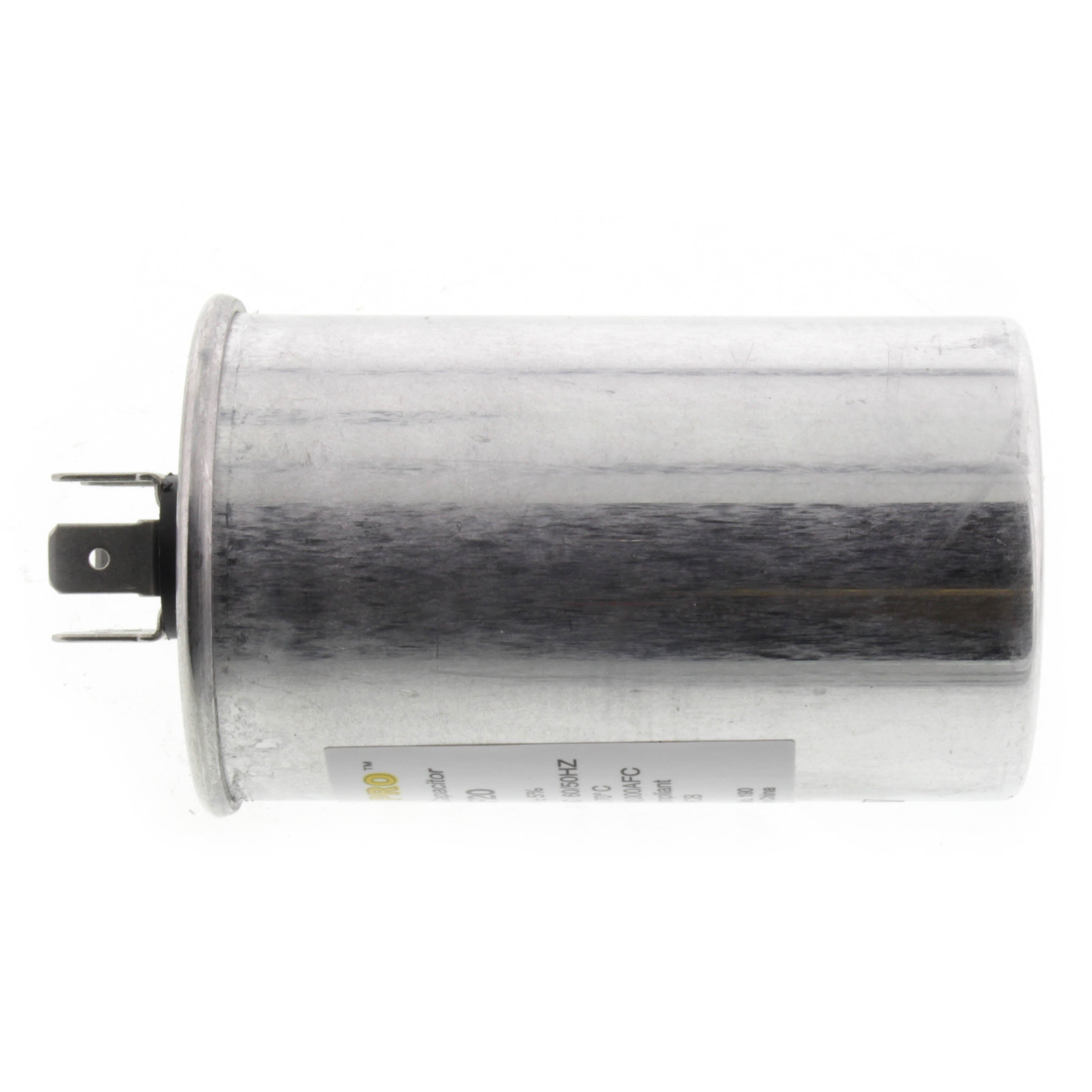

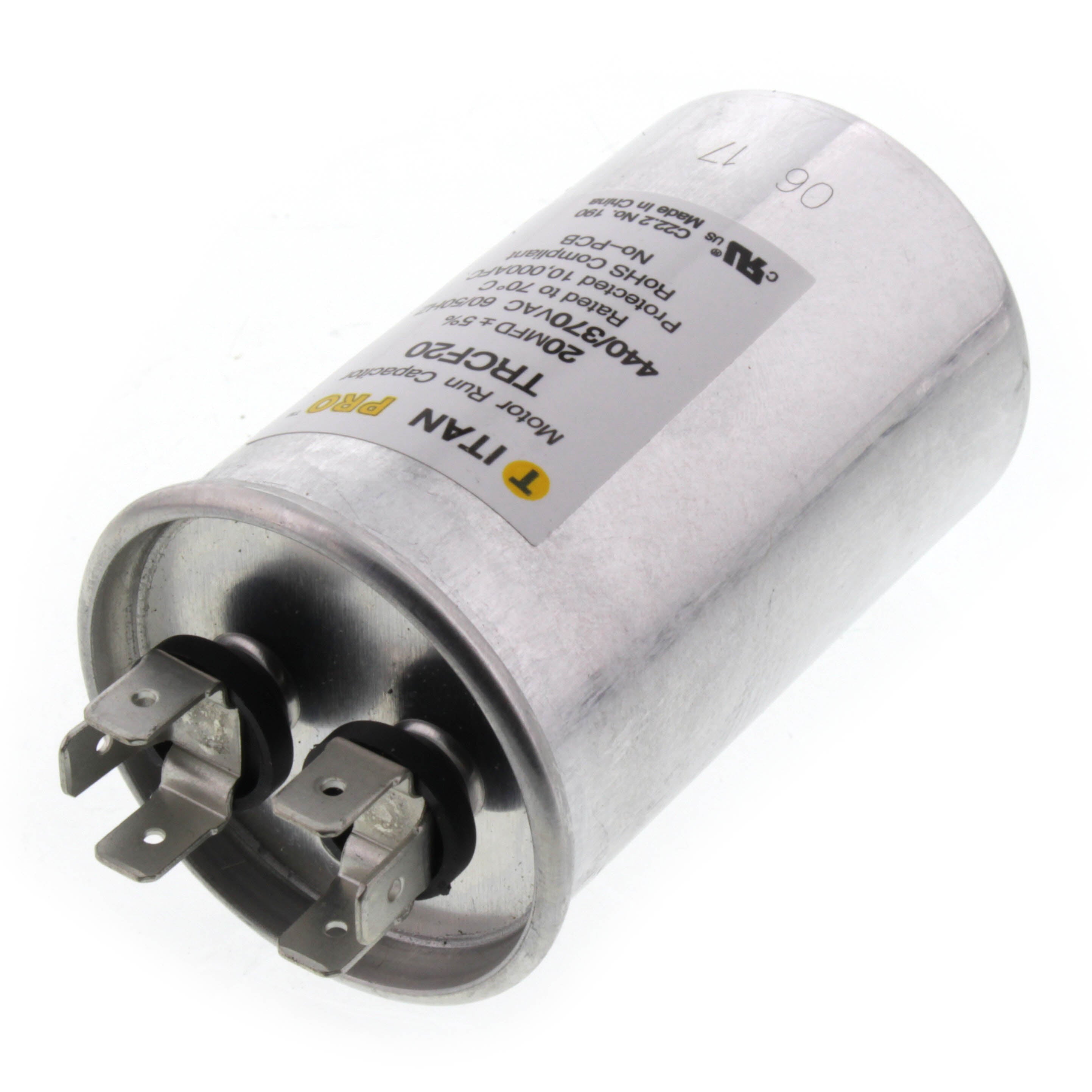

Titan Pro TRCF20 Round Motor Run Capacitor 20 Microfarad 440/370V

Product Description

The TITAN PRO TRCF20 is a round motor run capacitor with a 20 microfarad rating and a 370-440VAC voltage. It is constructed from aluminum and designed for use with electric motors. This capacitor helps start and run the compressor and fan motors in HVAC equipment. Built to international standards for AC motor run capacitors.

• 60,000 hours operational life
• 440/370 volt design reduces inventory
• Built to international standards for AC motor run capacitors including EIA-456-A and IEC 60252-1:2001

Product Highlights

This motor run capacitor is a quality replacement for HVAC systems, helping to start and run compressor and fan motors. It features a durable design.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCF20
• Country of Origin: China

Technical Specifications

• Shape: Round
• Material: Aluminum
• Capacitance: 20 Microfarad
• Maximum Voltage: 440 Volts
• Operating Voltage: 440 Volts
• Voltage: 440/370V AC
• Product Type: Capacitor
• Diameter: 1.77"
• Width: 1.77"
• Height: 2.95"
• Frequency: 60/50 Hz
• Standards: IEC 60252-1:2001
• Temp. Range: -40 Degrees to 70 Degrees C
• For Use With: Electric Motors
• Overall Depth: 1 3/4 in
• Overall Width: 1 3/4 in
• Terminal Type: 1/4 in Male Quick-Connect
• Cover Material: Steel
• Overall Height: 3 15/32 in
• Connection Type: Quick Connect
• Terminal Gender: Male
• Max. Temperature: 70 Degrees C
• Min. Temperature: -40 Degrees C
• Number of Pieces: 1
• Terminal Tab Width: 1/4 in
• Number of Terminals: 2
• Motor Capacitor Type: Motor Run Capacitor
• Terminal Designations: Standard
• Capacitor Voltage Group: 440V AC
• Capacitor Voltage (Merch): 440V AC
• Model: TRCF20
• MPN: TRCF20
• UPC: 840899104348
• Product type: Round motor run capacitor
