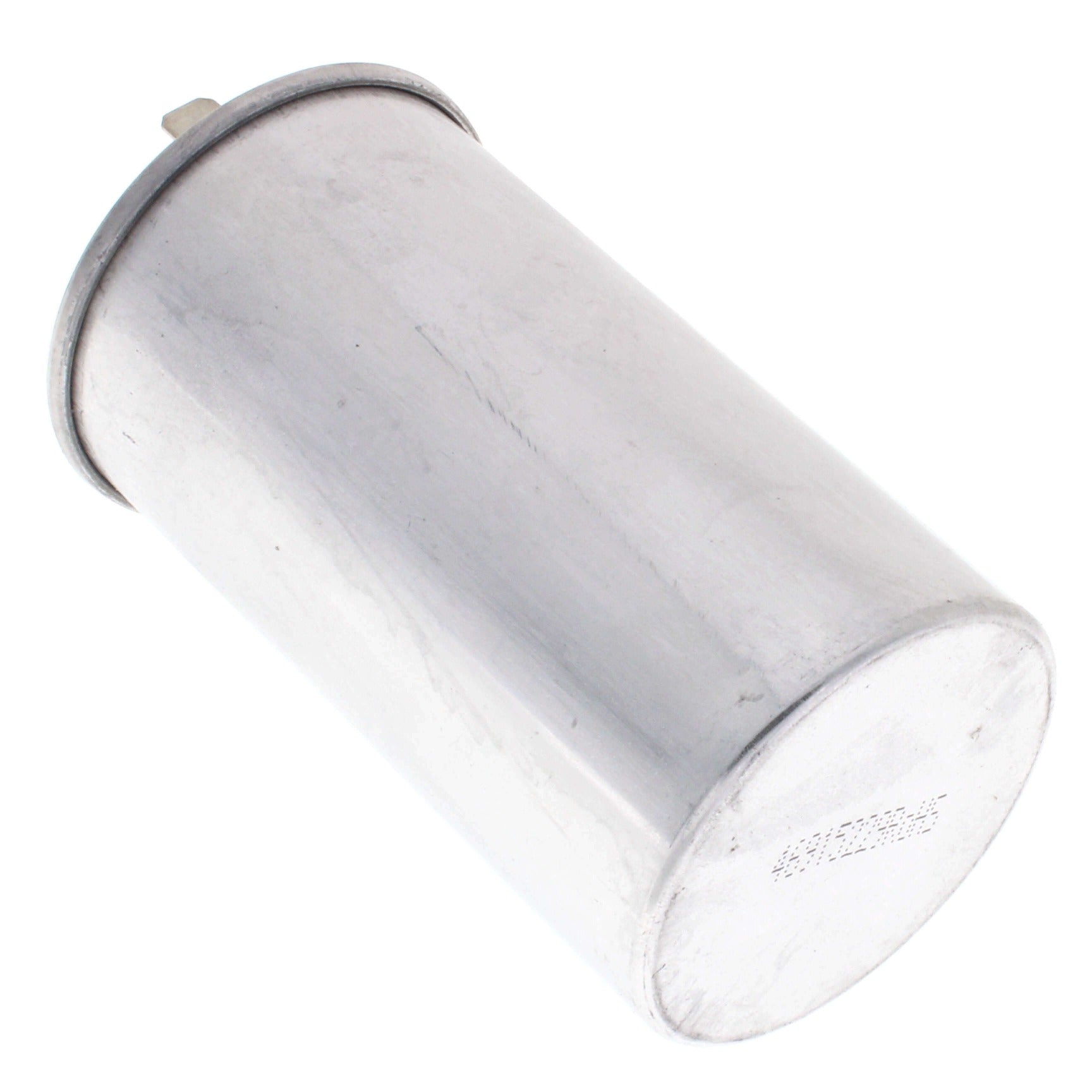

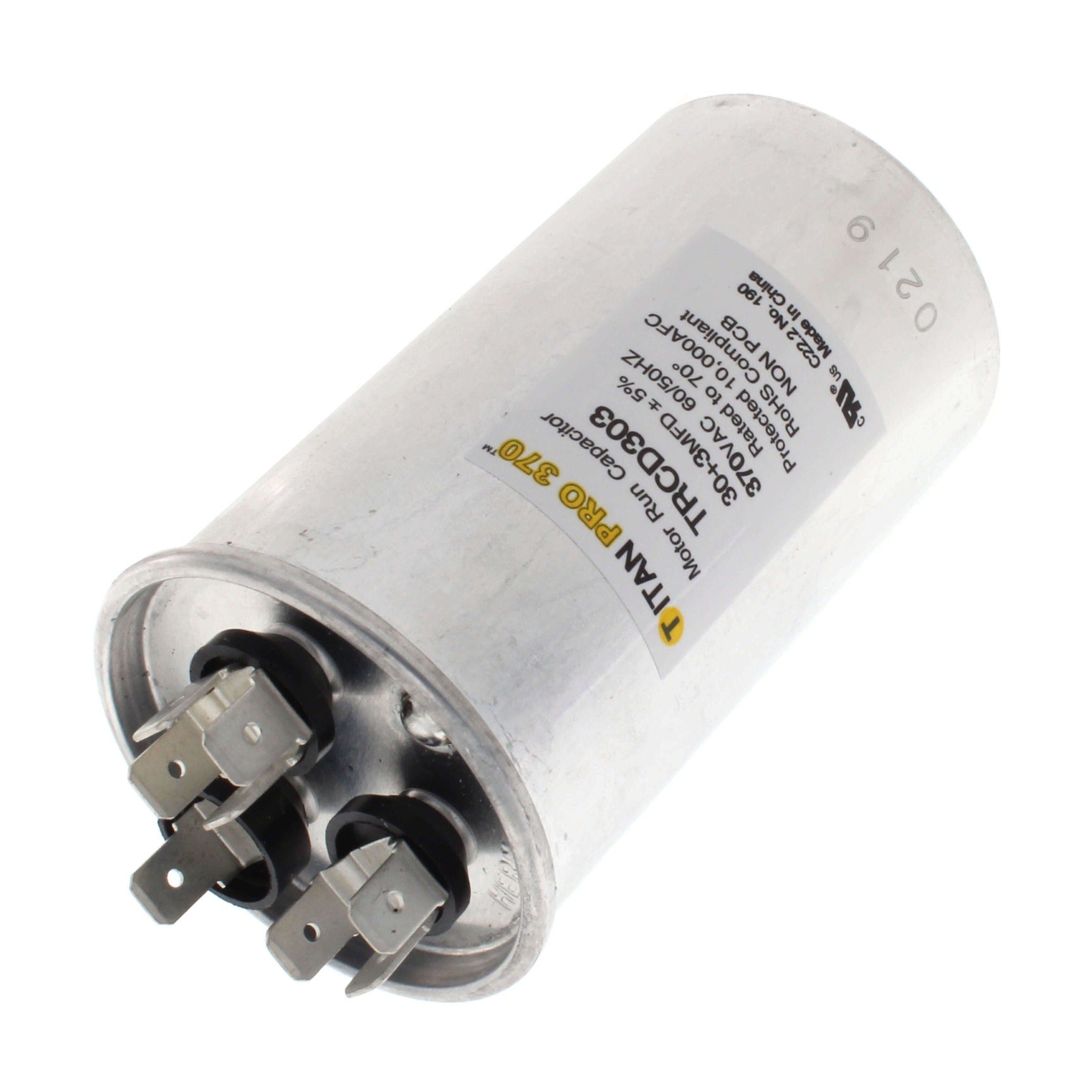

Titan Pro TRCD303 30/3 MFD Round Dual Motor Run Capacitor 370V

Product Description

Titan Pro TRCD303 is a 30/3 MFD round dual motor run capacitor rated 370V. It provides continuous run capacitance for dual-motor circuits using a heavy-edged metallized polypropylene film dielectric and proprietary biodegradable oil. The capacitor is 100% electrically tested and built to EIA-456-A and IEC 60252-1:2001 standards, with a rated operational life of 60,000 hours and a second-generation anti-explosion safety switch for failure protection.

• Capacitance: 30/3 MFD; Rated voltage: 370V (440/370 volt design option available)
• 60,000 hours operational life; compliant with EIA-456-A and IEC 60252-1:2001; 100% electrical testing
• Heavy-edged metallized polypropylene film dielectric, proprietary biodegradable oil, second-generation anti-explosion safety switch

Product Highlights

30/3 MFD dual motor run capacitor, 370V rating, 60,000 hours operational life, metallized polypropylene dielectric, EIA-456-A and IEC 60252-1:2001 compliance

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCD303
