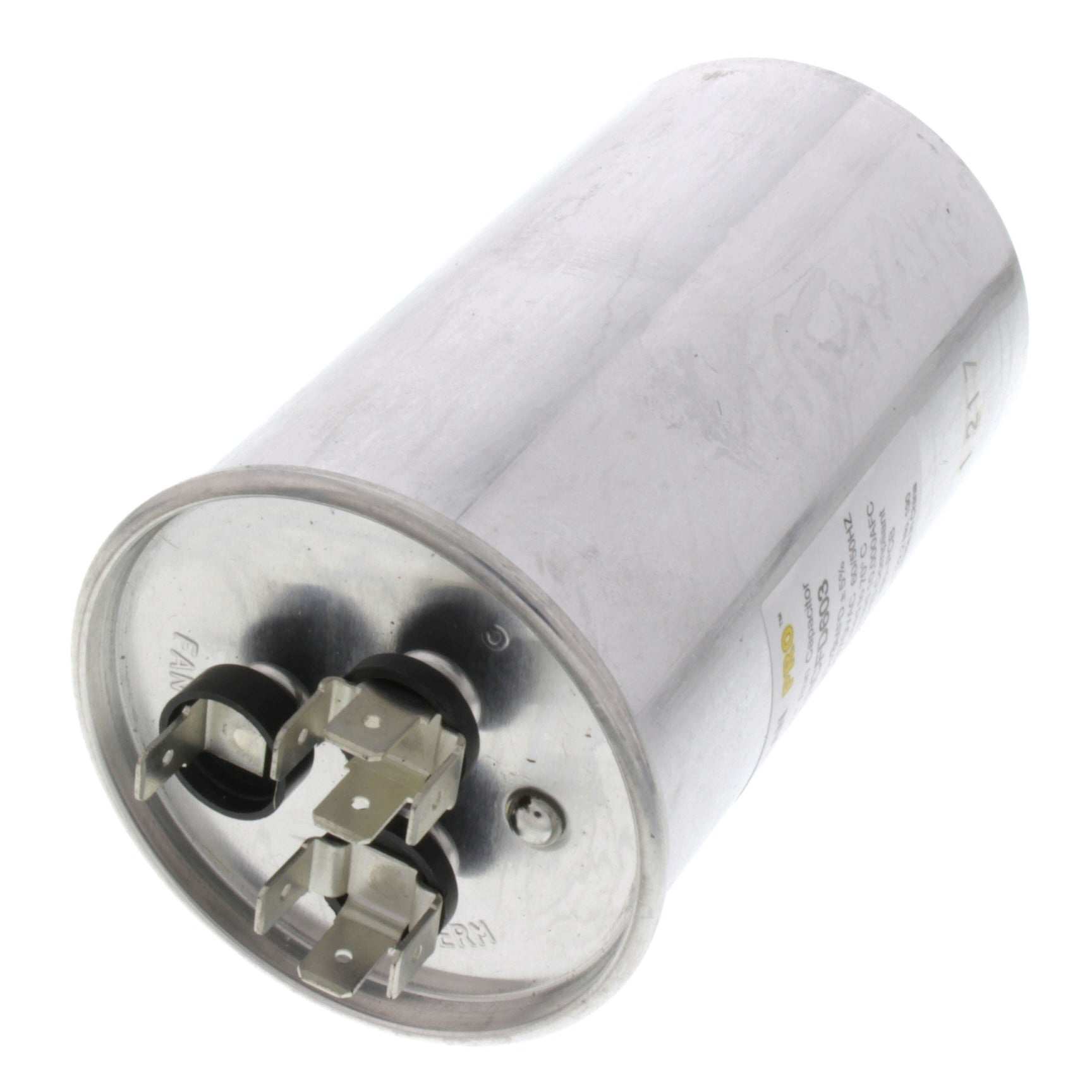

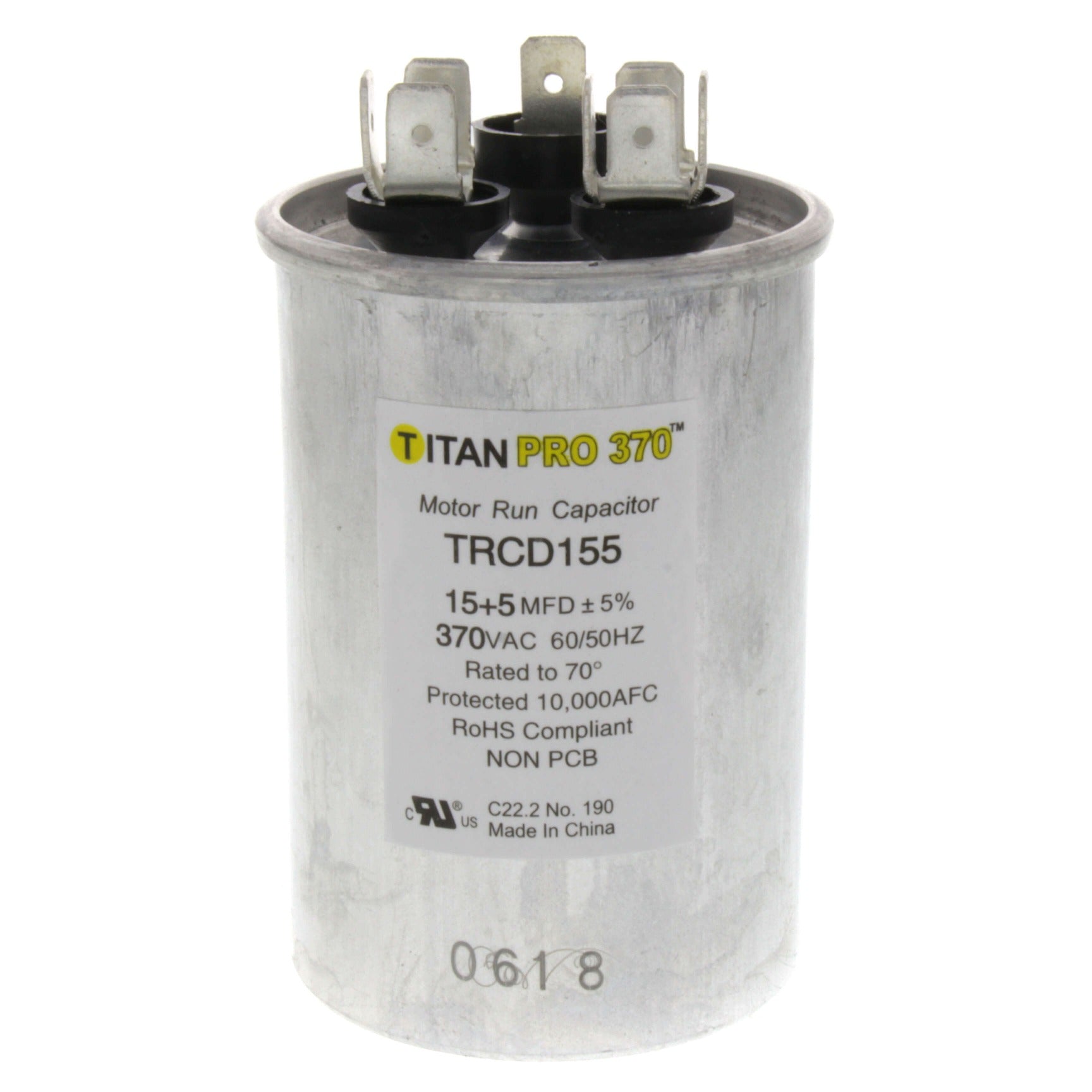

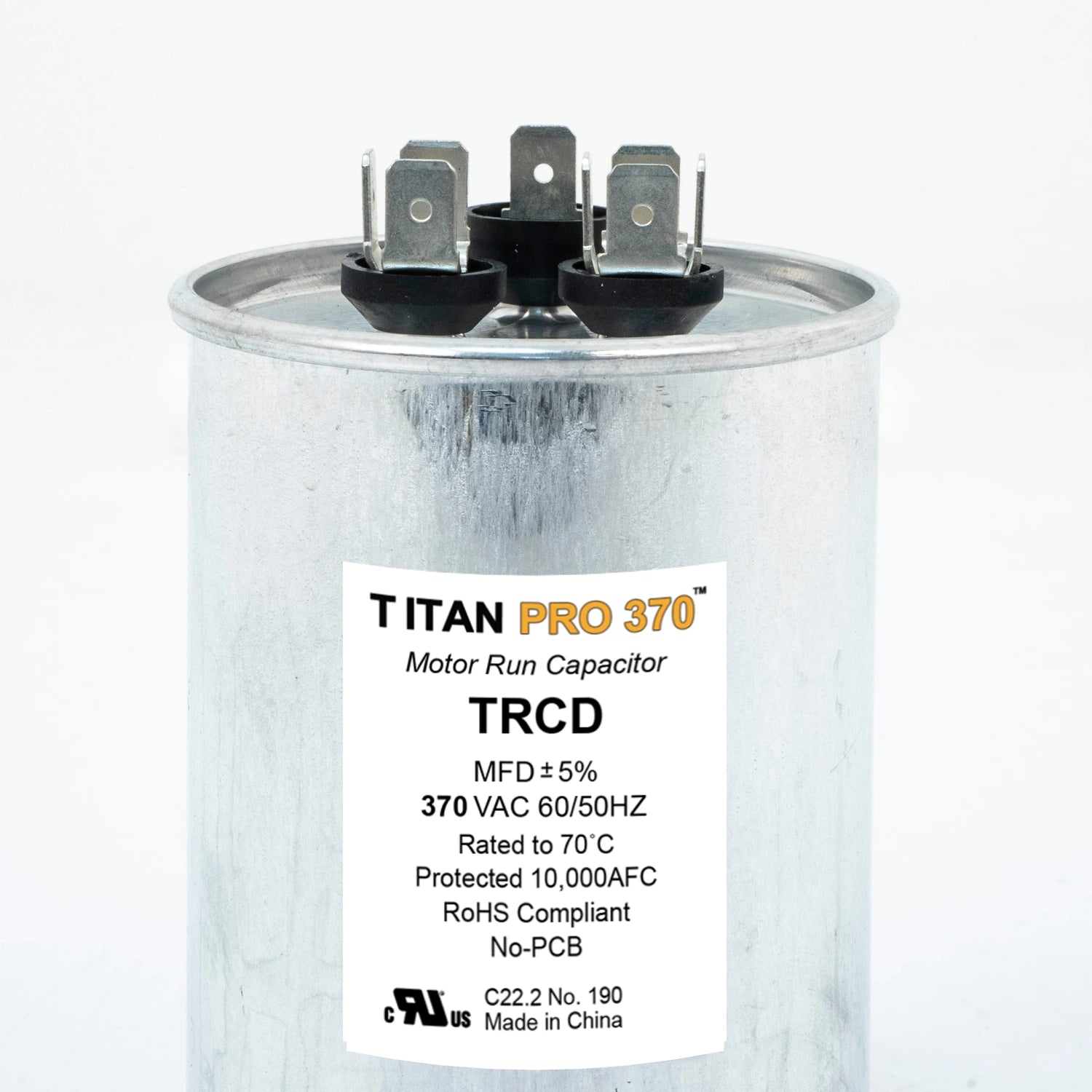

Titan Pro TRCD155 Dual Motor Run Capacitor 370V (15/5 MFD) Supco CD15+5X370RV

Product Description

Titan Pro TRCD155 is a 15/5 MFD dual motor run capacitor rated 370 V. Designed for HVAC and motor applications, the round aluminum capacitor supports 50/60 Hz systems and provides a reported operational life of 60,000 hours. It uses a heavy-edged metalized polypropylene film dielectric with proprietary biodegradable oil, includes a second-generation anti-explosion safety switch, and is 100% electrically tested to EIA-456-A and IEC 60252-1:2001 standards.

• Dual capacitance 15/5 MFD at 370 V, compatible with 50/60 Hz for motors, blowers, and refrigeration equipment
• Reported operational life of 60,000 hours; 100% electrical testing; compliant with EIA-456-A and IEC 60252-1:2001
• Round aluminum housing with heavy-edged metalized polypropylene film dielectric, proprietary biodegradable oil, and second-generation anti-explosion safety switch

Product Highlights

Dual run capacitor 15/5 MFD at 370 V for HVAC and motor applications; 60,000-hour operational life; standards compliant

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCD155
• Country of Origin: China
