Titan Pro TOCFD405 Motor Dual Run Capacitor 40/5 MFD (Oval)

Product Description

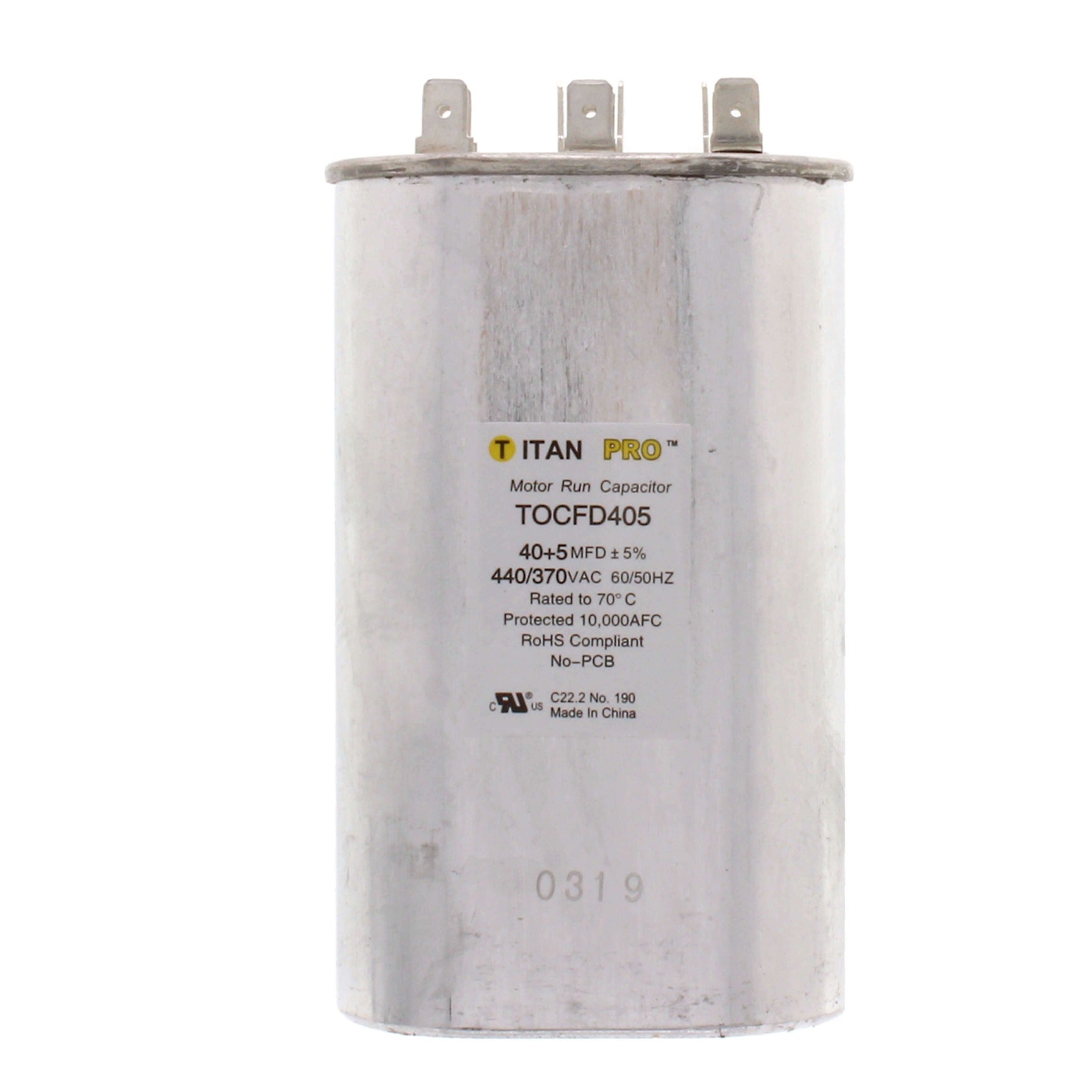

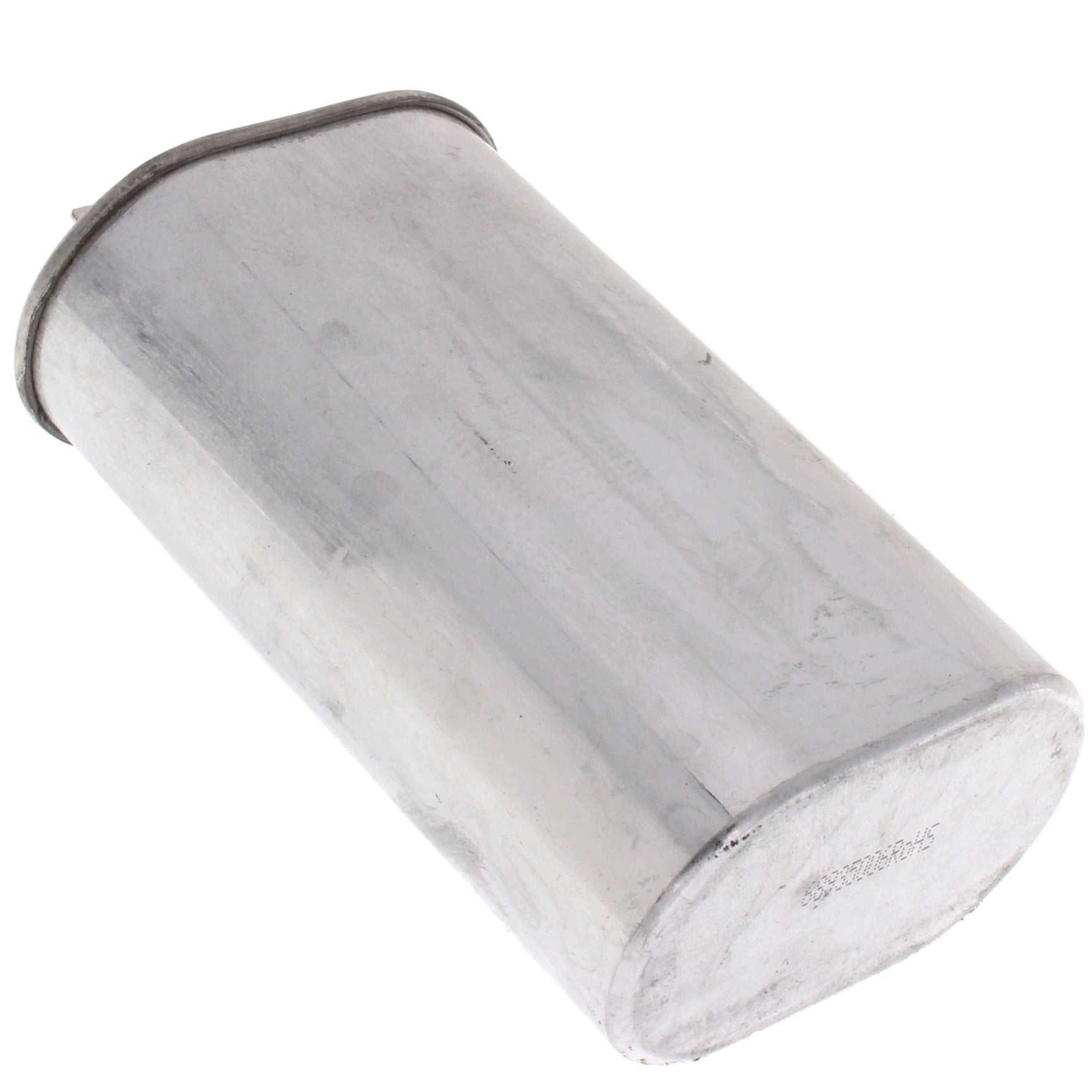

The Titan Pro TOCFD405 is a dual-run motor capacitor rated 40/5 µF for 370–440 V AC systems in an oval aluminum can. It supports 50/60 Hz operation, features three 1/4 in. male quick-connect terminals and an EIA UL base C, and is UL recognized (E185318). Operating temperature range is -40 to 70 °C; overall dimensions accommodate typical motor or control panel mounting.

• Capacitance 40/5 µF; voltage rating 370–440 V AC; frequency 50/60 Hz
• Oval aluminum case with steel cover; EIA UL base C; UL recognized (E185318); meets IEC 60252-1:2001 and EIA-456-A

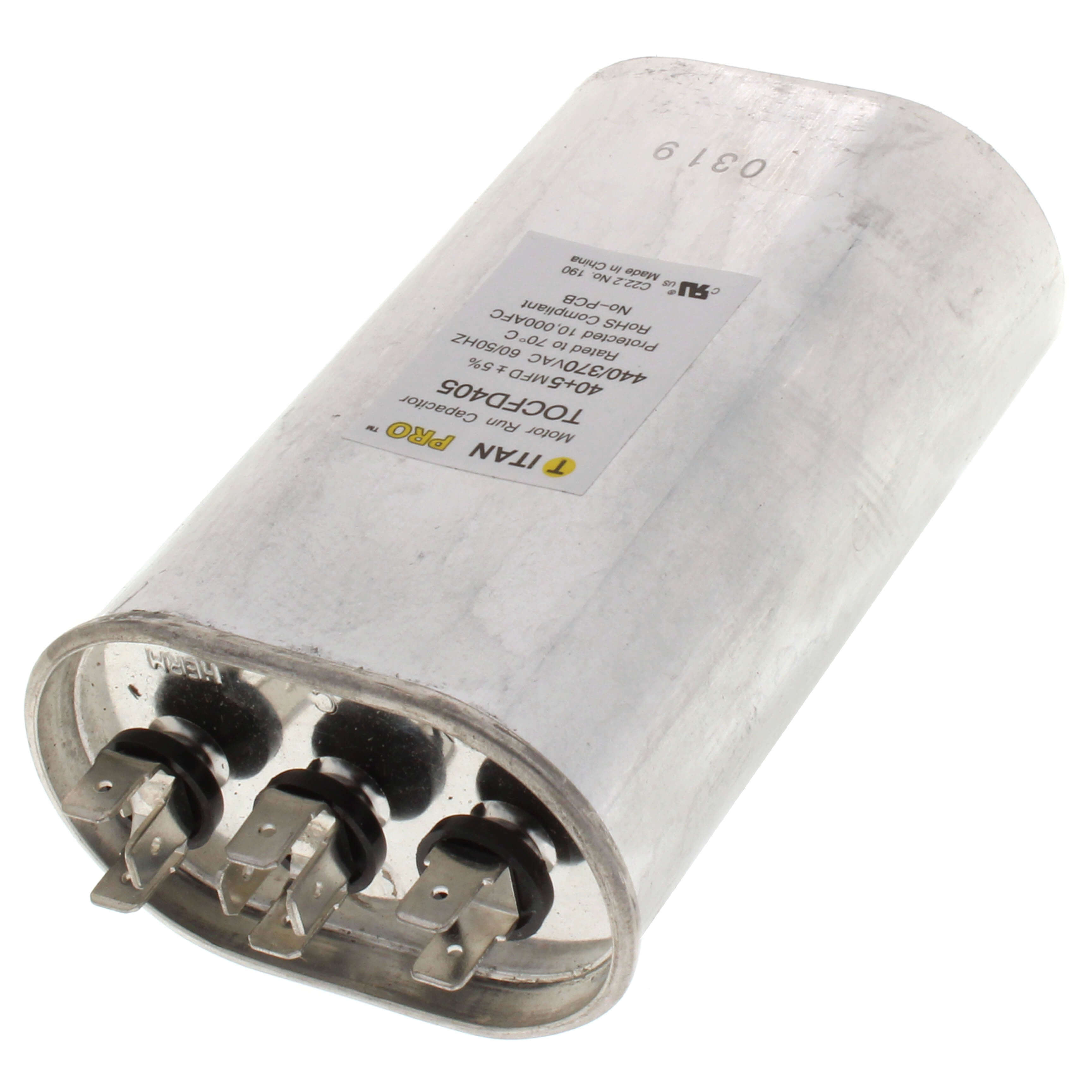

• Three 1/4 in. male quick-connect terminals; operating temperature -40 to 70 °C; overall height 5-1/8 in., case height 4-5/16 in.

Product Highlights

Dual-rated 40/5 µF motor run capacitor for 370–440 V AC applications with oval aluminum enclosure, quick-connect terminals, and industrial temperature range.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TOCFD405
• Country of Origin: China
