Description

Product Description

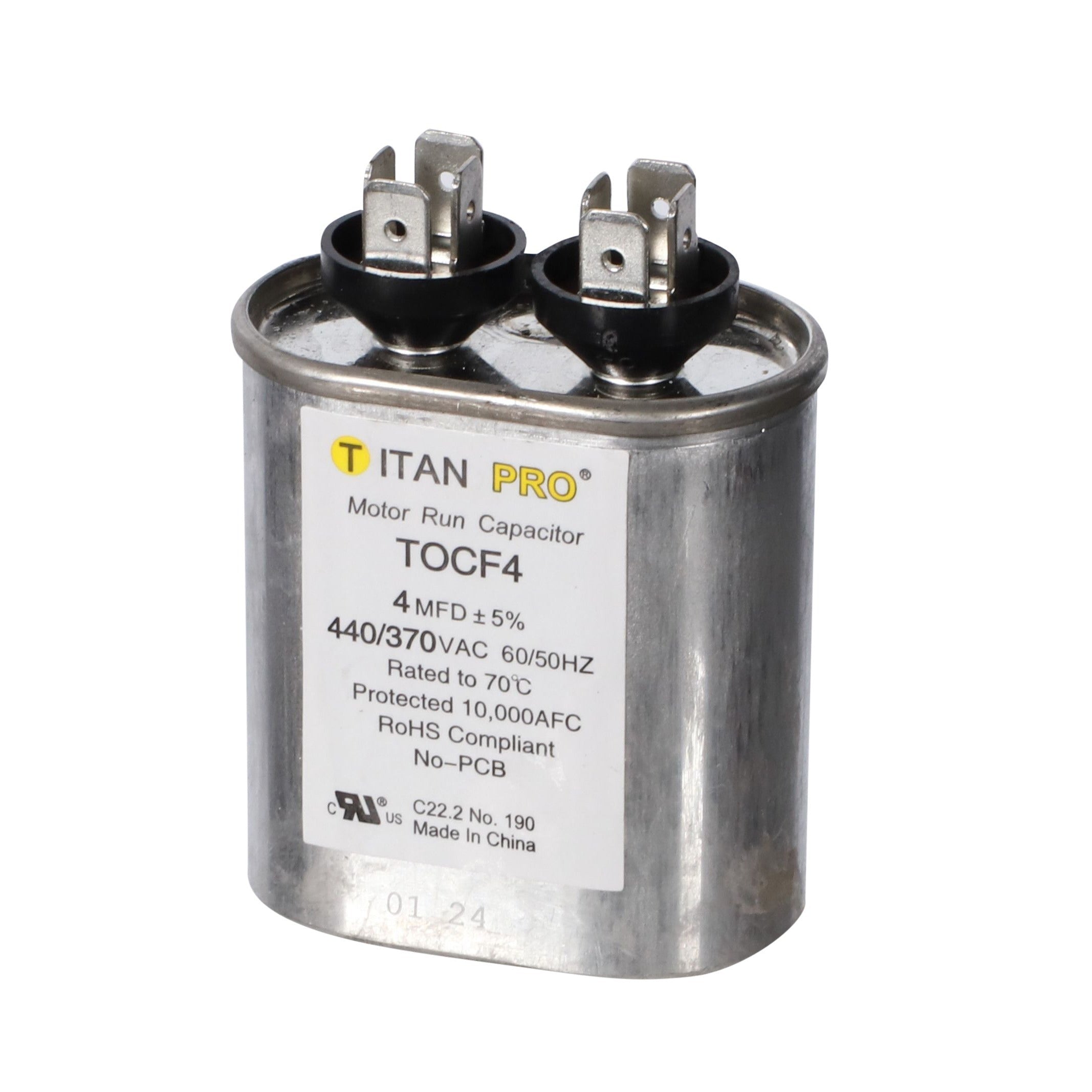

The Titan Pro TOCF4 is a motor run capacitor rated at 4 MFD for use in AC motor applications. It is rated for 370-440 VAC at 50/60 Hz and housed in an oval aluminum case with an overall height of about 2-3/4 inches. The capacitor uses a metalized polypropylene film dielectric, features 1/4 inch male quick-connect terminals, and is UL recognized (E185318) with an operating range of -40 to 70 °C.

  • 4 MFD capacitance, rated 370-440 VAC for 50/60 Hz motor run applications
  • Oval aluminum case with overall height ~2-3/4 in and 1/4 in male quick-connect terminals
  • UL recognized (E185318), -40 to 70 °C operating range, +/-5% tolerance

Product Highlights

4 μF motor run capacitor, 370-440 VAC, oval aluminum case, 1/4 in quick-connect terminals, UL recognized

Product Information

Standard Information

  • Brand: TITAN PRO
  • Manufacturer Part Number: TOCF4
  • Country of Origin: China
Technical Specifications
Brand
TITAN PRO
MPN
TOCF4
Product Type
Motor Run Capacitor
Capacitance
4 microfarad (4 µF)
Voltage Rating
370-440 VAC (maximum 440 V)
Frequency
50/60 Hz
Tolerance
+/-5%
Shape
Oval
Case Material
Aluminum
Cover Material
Steel
Dielectric
Metalized polypropylene film
Terminal Type
1/4 in male quick-connect (standard blade)
Standards / Certifications
UL recognized (E185318); IEC 60252-1:2001; EIA-456-A; RoHS compliant
Operating Temperature
-40 to 70 °C
Operational Life
60,000 hours
Testing
100% electrical testing
Dimensions (product)
2.03 x 1.24 x 2.17 inches
Overall Height
2-3/4 inches
Case Height
1-9/16 inches
Overall Width
2 inches
Overall Depth
1-1/4 inches
Weight
2.4 ounces (approx. 68 g)
Country of Origin
China
Shape Details
Oval single-section
Applicable Equipment
AC motor (permanent split capacitor motors)
Series / Model
TOCF
