Titan Pro TOCD305 Run Capacitor 370V (30+5 MFD Oval) Replacement TOCD305

Product Description

The Titan Pro TOCD305 is a dual motor run capacitor providing 30 + 5 microfarads at 370 VAC for HVAC motor and blower applications. The oval aluminum can is rated for 50/60 Hz operation and includes three tri-blade 1/4" male terminals labeled C, H, and F. The capacitor uses a metallized polypropylene film dielectric with Epoxidized Soybean Oil and meets industry safety and performance standards for motor run service.

• Dual capacitance 30 + 5 MFD at 370 VAC for fan, blower, and compressor motor run circuits

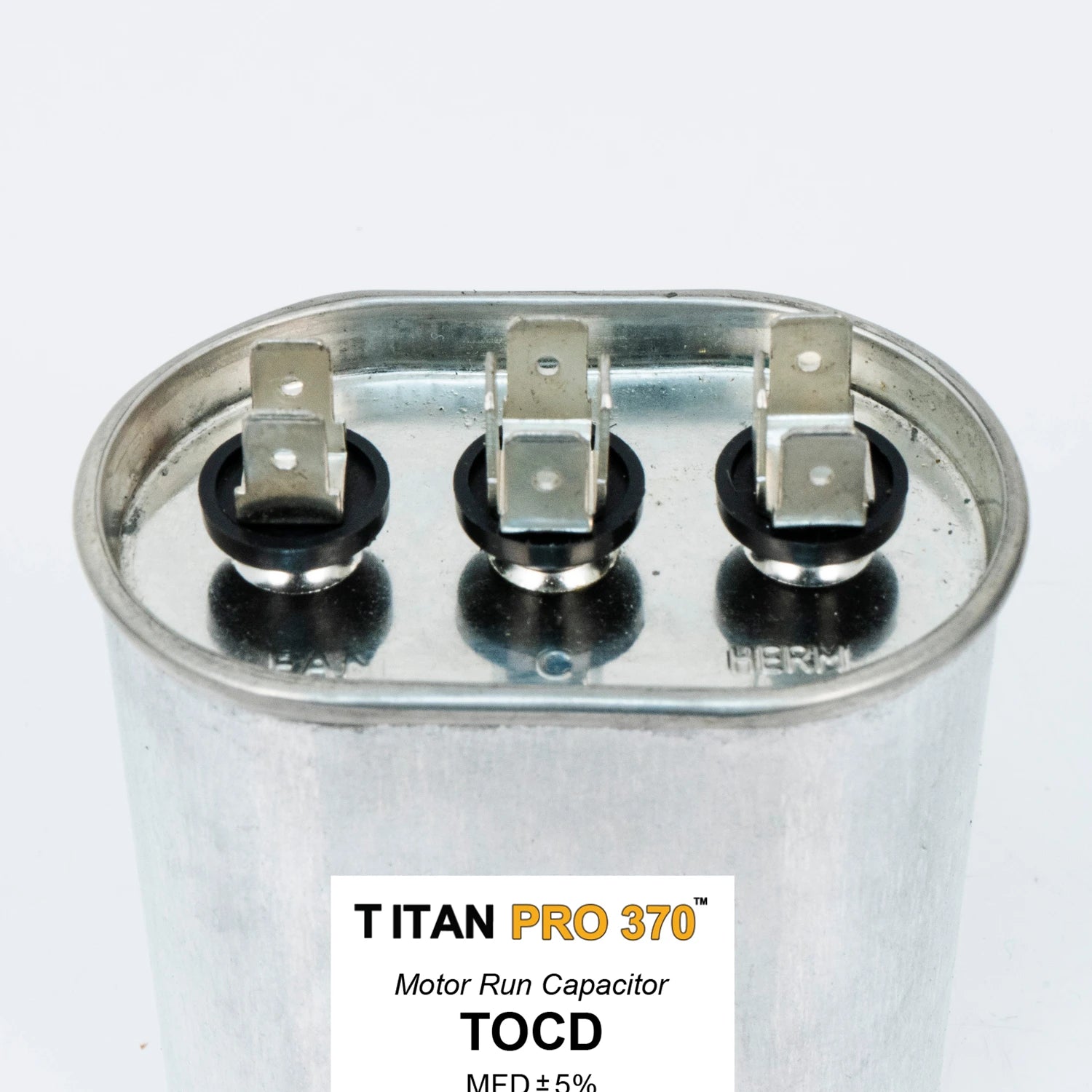

• Oval aluminum can with three 1/4" male tri-blade terminals (C, H, F); designed for 50/60 Hz systems
• Metallized polypropylene dielectric with Epoxidized Soybean Oil; rated to 158°F, protected to 10,000 AFC, meets EIA-456-A, IEC 60252-1:2001 and UL 810

Product Highlights

30+5 MFD dual run capacitor, 370 V, oval aluminum can, three tri-blade terminals, UL and IEC compliant

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TOCD305
• Country of Origin: China
