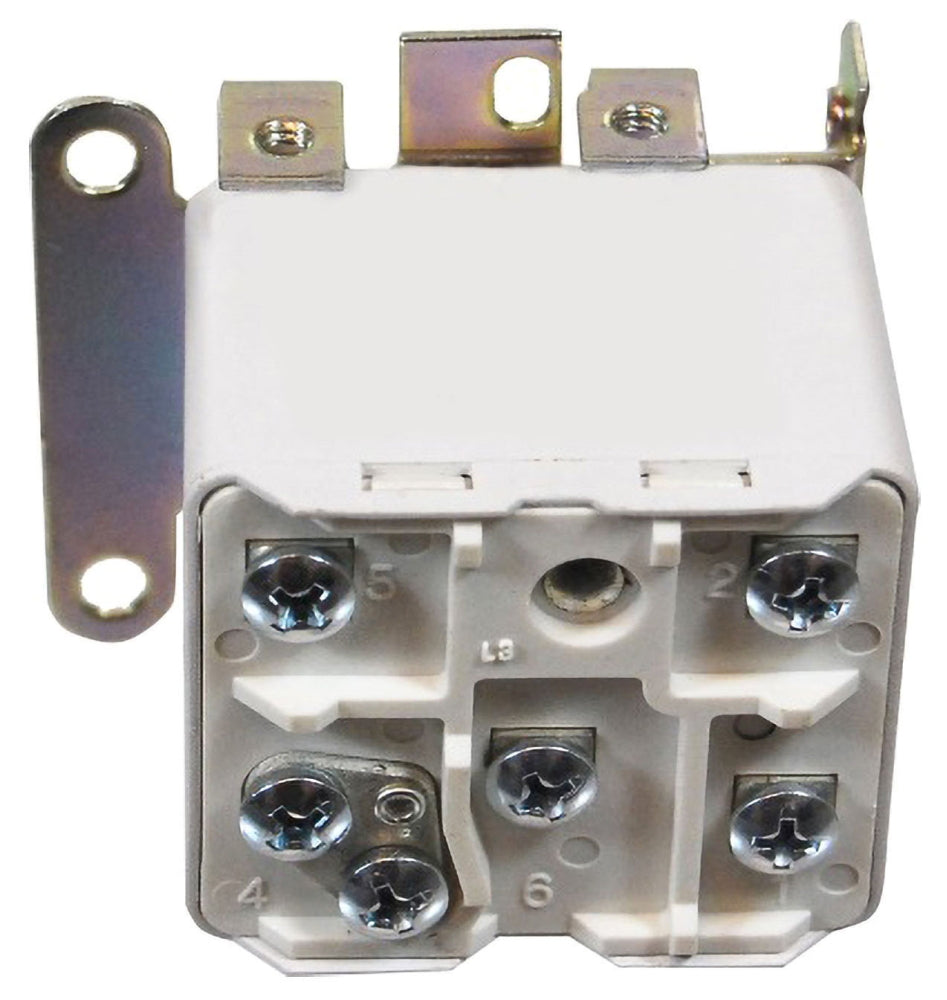

Titan Ice TR63 Potential Relay 170 Coil Voltage GE Replacement

Product Description

The Titan Ice TR63 is a potential relay ideal for HVAC applications. This unit has a coil voltage of one hundred seventy volts and a pick-up range of one hundred thirty-six to one hundred fifty-six volts. It features a contact current rating of thirty-five amps and is built for reliable performance in demanding environments.

• Coil voltage of one hundred seventy volts
• Rated for thirty-five amps
• Includes six quick connect terminals

Product Highlights

This relay is designed for use with central air conditioner compressors and submersible pump motors, making it a versatile choice for HVAC professionals.

Product Information

Standard Information

• Manufacturer: Titan Ice
• Part Number: TR63

Technical Specifications

• Coil Voltage: 170 Volt
• Contact Current Rating: 35 Amp
• Voltage Pick-Up Range: 136 to 156 Volt
• Drop-Out Voltage: 58 Volt
• Terminal Type: (6) Quick Connect and #8-32 TPI Screw
• Approval: UL (Canada and US)
• Applications: Central air conditioner compressor, submersible pump motor
• Endurance: Up to 500,000 operations
