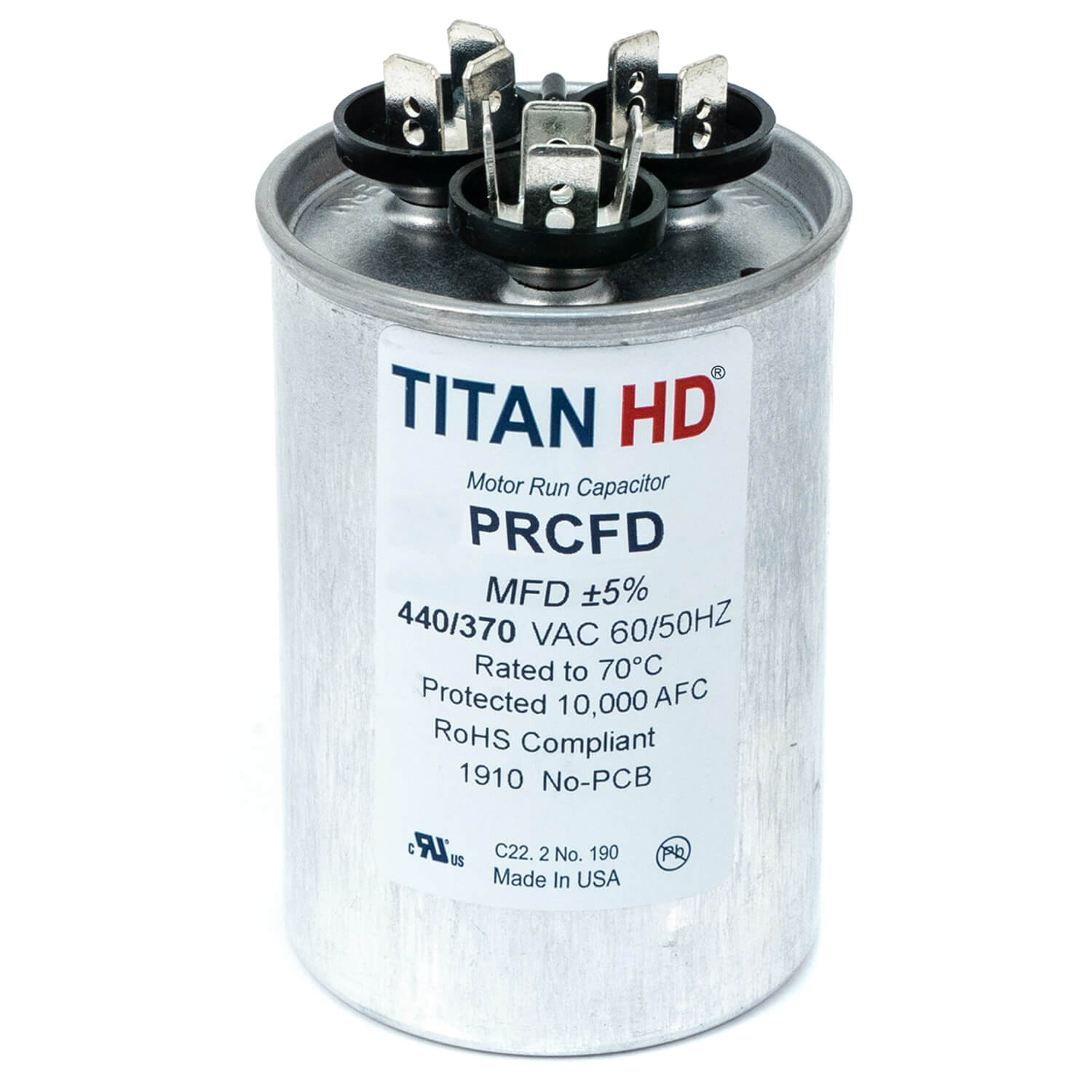

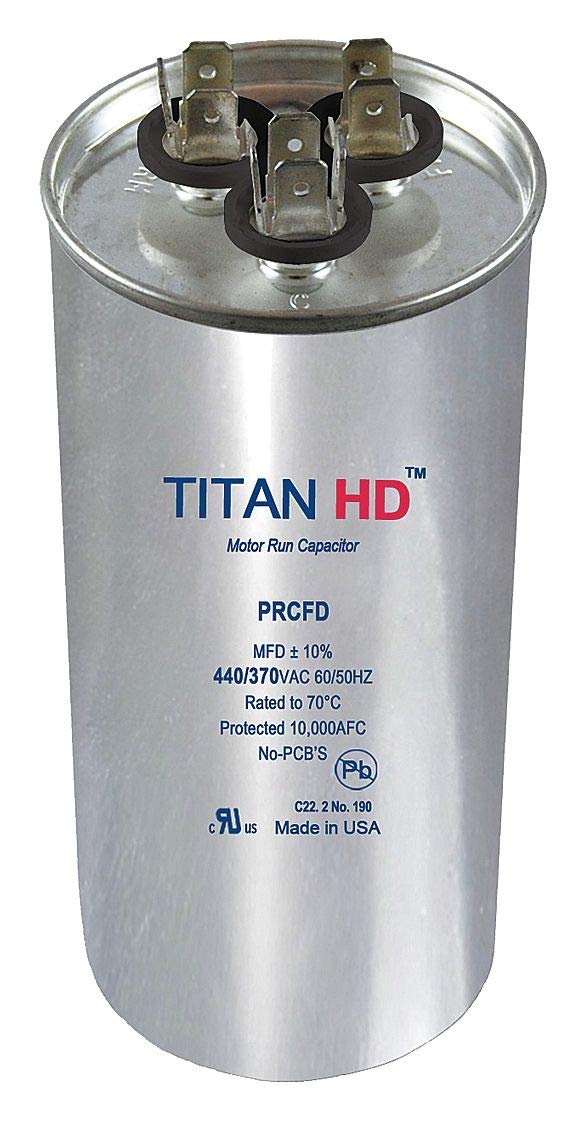

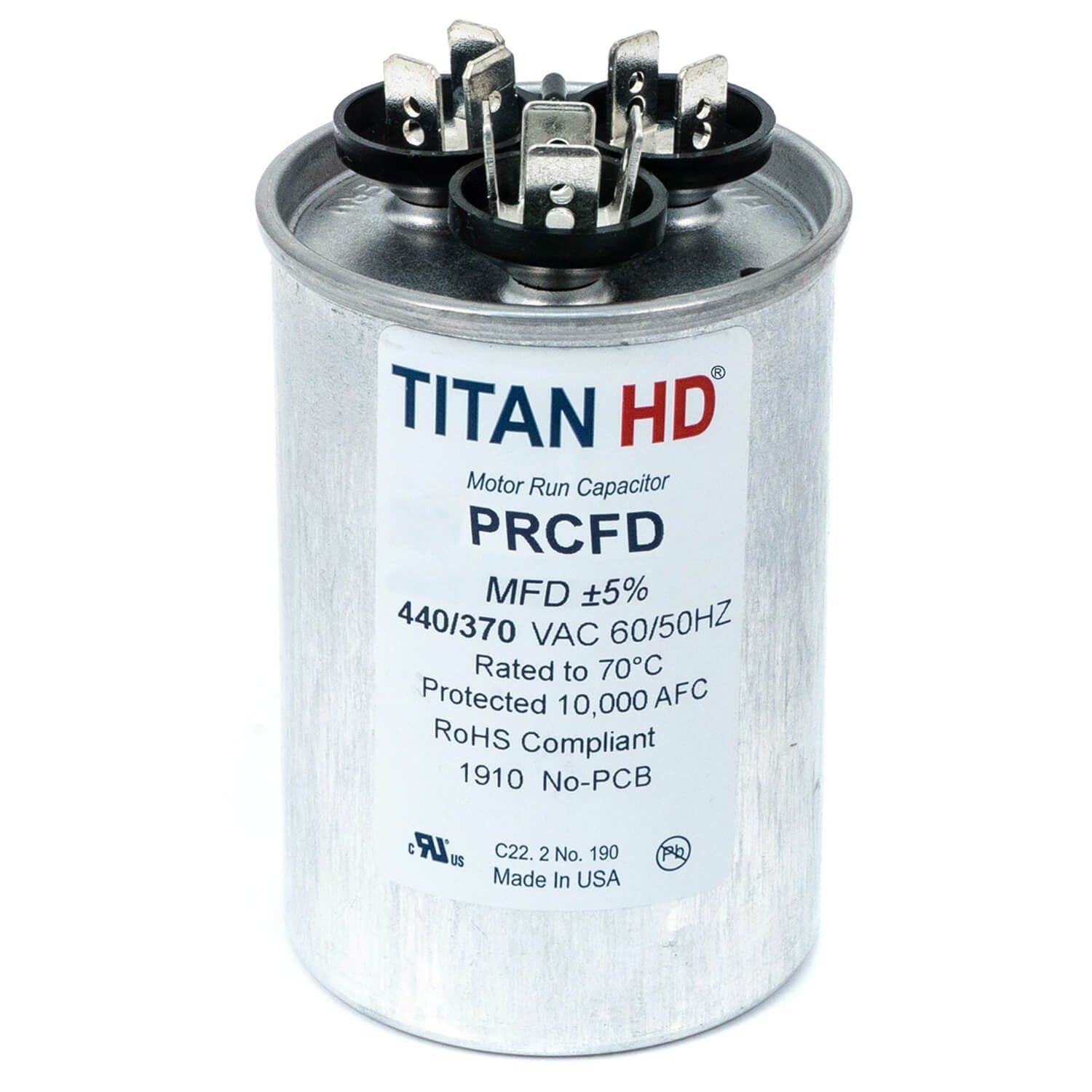

Titan Hd PRCFD255A Round Motor Dual Run Capacitor 25/5 Microfarad Rating

Product Description

The TITAN HD PRCFD255A is a motor run capacitor with a 25/5 microfarad rating and 440V voltage. It features a round shape, aluminum case, and steel cover. This capacitor is suitable for various applications requiring a durable and reliable motor run capacitor.

• Microfarad Rating: 25/5
• Voltage: 440V
• Terminal Type: 1/4" Male Quick-Connect

Product Highlights

Durable motor run capacitor with a 25/5 microfarad rating, 440V, and a round shape.

Product Information

Standard Information

• Brand: TITAN HD
• Manufacturer Part Number: PRCFD255A
• Country of Origin: USA

Technical Specifications

• Item: Motor Run Capacitor
• Microfarad Rating: 25/5
• Voltage: 440V
• Hz: 60/50
• Shape: Round
• Diameter: 2"
• Case Height: 3-27/32"
• Overall Height: 4-11/32"
• EIA UL Base: A
• Terminal Type: Standard Blade
• Temperature Range: -40 to 70 deg C
• Case Material: Aluminum
• Cover Material: Steel
• Standards: E136401, RoHS Compliant, IEC 60252
• UNSPSC: 32121501
• Capacitor Voltage: 440VAC
• Motor Capacitor Type: Motor Dual Run Capacitor
• MFD: 25/5
• Voltage Rating: 370/440 VAC
• Frequency Rating: 50/60 Hz
• Average Life: 60000 hr
• Standard Tolerance: +/-5 %
• Capacitance: 25+5 uF
• Item Name: Run Capacitor
• Standards/Approvals: RoHS Compliant, UL Listed
• Material: Aluminum Can
• Oil Type: Soybean-Based
• Tolerance: +/-5 %
• Volts: 440
