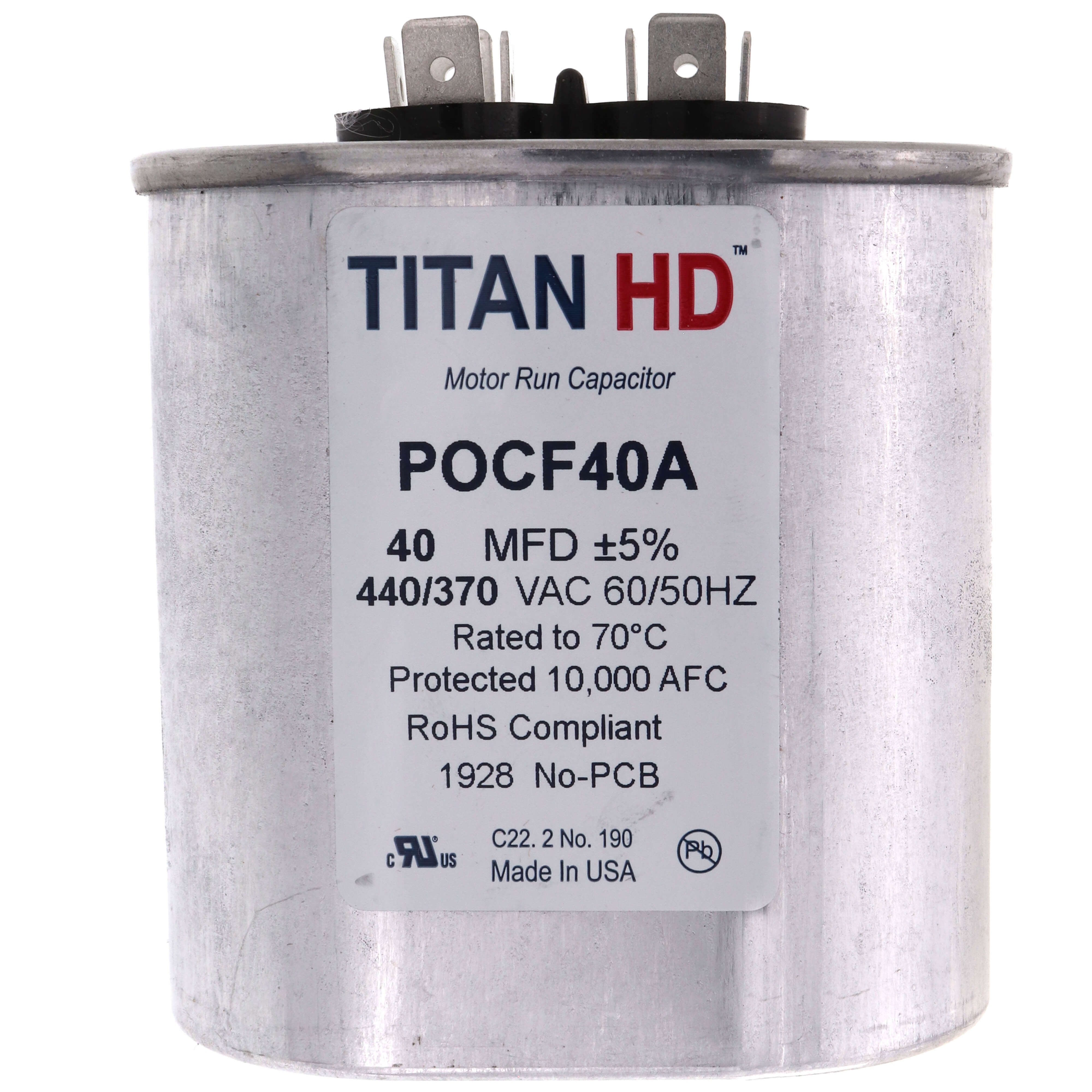

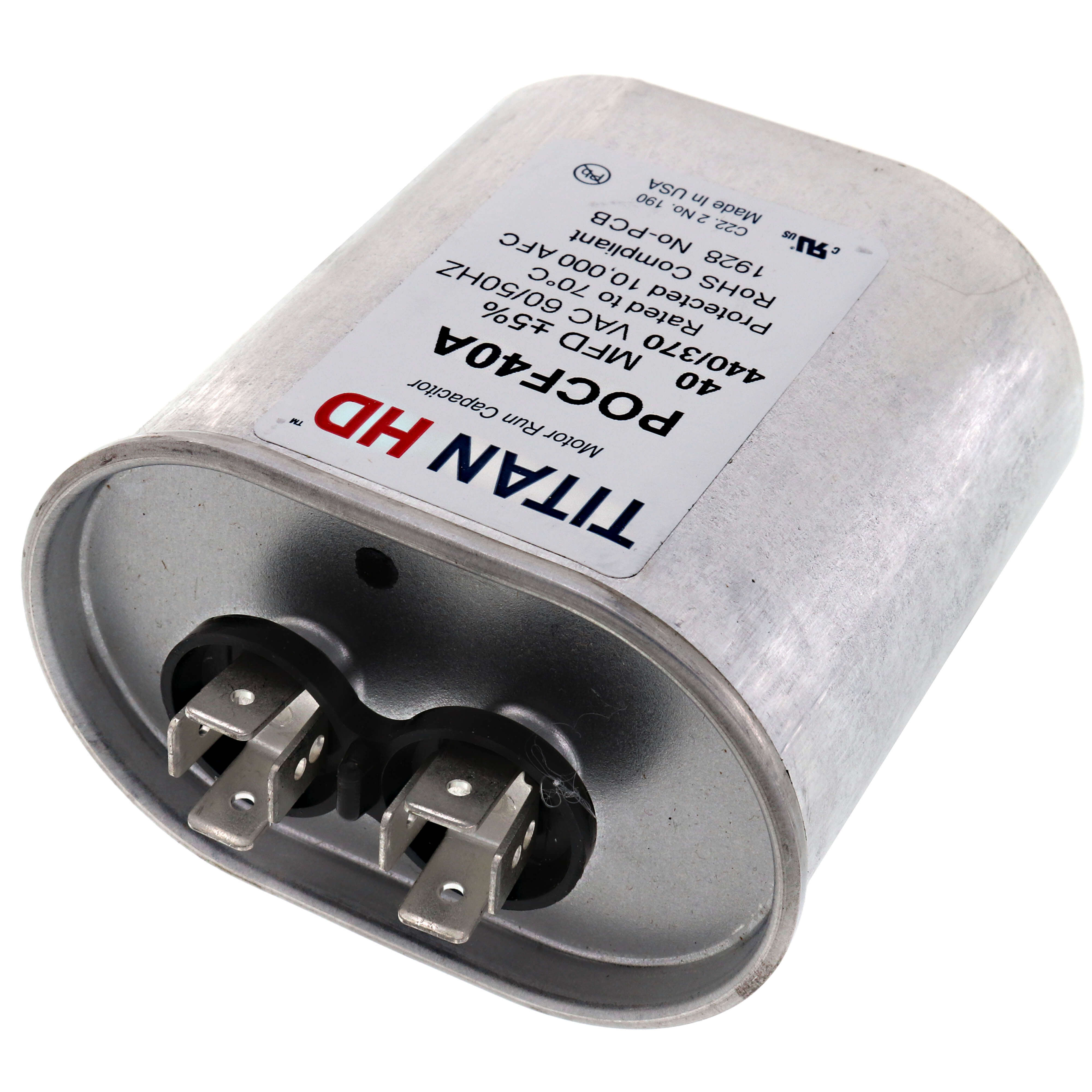

Titan Hd POCF40A 40 MFD Oval Motor Run Capacitor 440/370V REPLACEMENT 325P406H44C46N4X

Product Description

The TITAN HD POCF40A is a 40 MFD oval motor run capacitor designed for 440/370V applications. It features a substantial 60,000 hours of operating life and meets the rigorous EIA-456-A industry standard for performance and quality. It utilizes metalized polypropylene film technology for self-restoration and a UL-approved pressure sensitive interrupter.

• Made in USA
• 60,000 hours operating life
• Meets the rigorous EIA-456-A industry standard for performance and quality

Product Highlights

This TITAN HD capacitor provides contractors with confidence on the job. It is a compatible replacement for Packard 325P406H44C46N4X, Industry No. 12045, and Industry No. 12945.

Product Information

Standard Information

• Brand: TITAN HD
• Manufacturer Part Number: POCF40A
• Country of Origin: USA

Technical Specifications

• MFD: 40
• Shape: Oval
• Voltage: 440/370V
• Product Type: Capacitor
• Depth (Inches): 1.25
• Width (Inches): 2
• Height (Inches): 3.75
• Diameter (Inches): 2
• Frequency: 60/50 Hz
• Item: Motor Run Capacitor
• Standards: cUL, EIA-456-A, IEC 60252, UL
• EIA UL Base: A
• Temp. Range: -40 Degrees to 70 Degrees C
• For Use With: Electric Motors
• Case Material: Aluminum
• Overall Depth: 1.875
• Overall Width: 2.75
• Terminal Type: 1/4 in Male Quick-Connect
• Cover Material: Steel
• Overall Height: 3.40625
• Capacitor Shape: Oval
• Connection Type: Quick Connect
• Terminal Gender: Male
• Max. Temperature: 70 Degrees C
• Min. Temperature: -40 Degrees C
• Number of Pieces: 1
• Capacitor Voltage: 440/370V AC
• Microfarad Rating: 40
• EIA Tolerance Code: A
• Terminal Tab Width: 0.25 in
• Number of Terminals: 2
• Motor Capacitor Type: Motor Run Capacitor
• Terminal Designations: Standard
• Capacitor Voltage Group: 440V AC
• Capacitor Voltage (Merch): 440V AC
