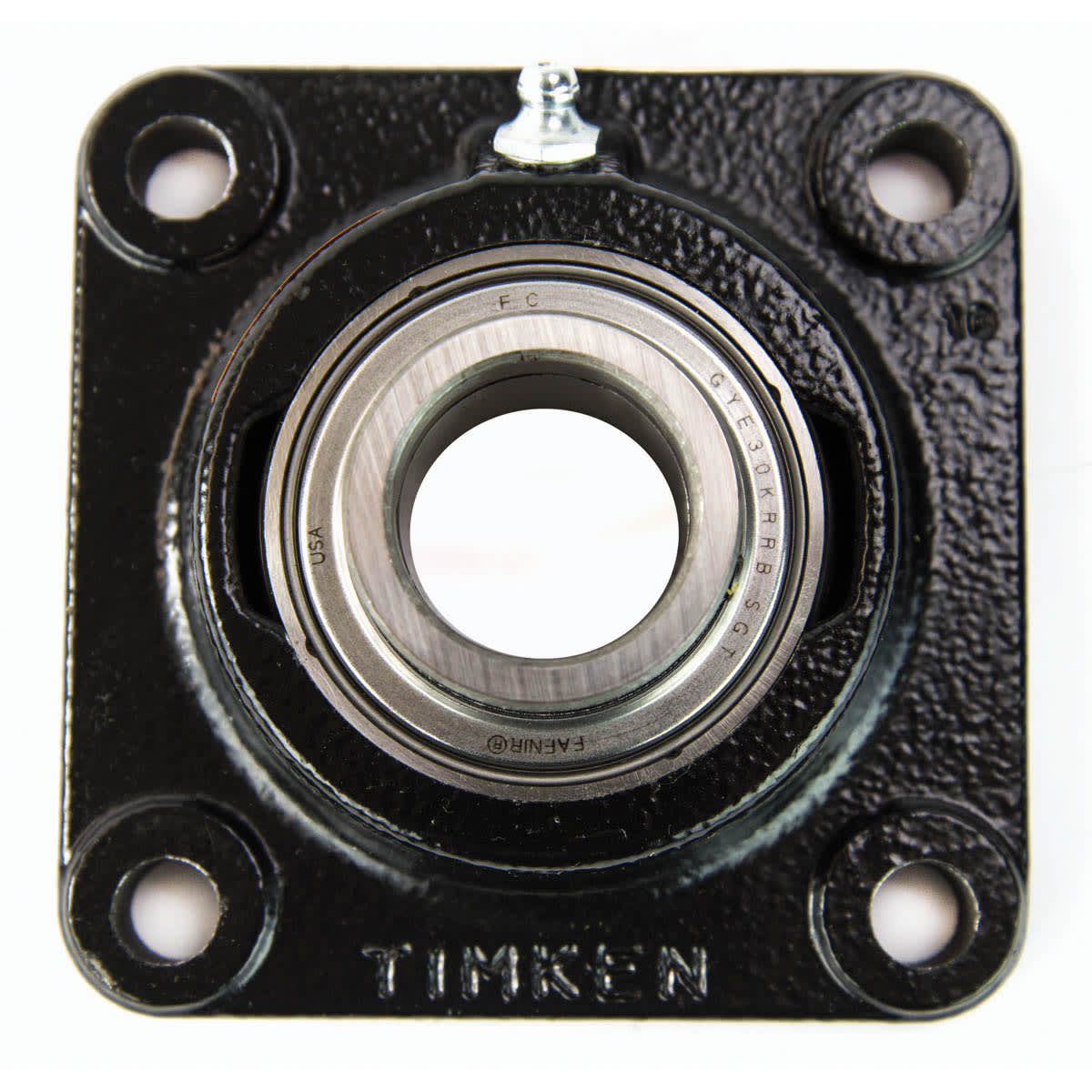

Timken YCJM17/16 Four Bolt Ball Flange Unit

Product Description

The Timken Fafnir YCJM17/16T is a four bolt ball flange unit. It integrates the bearing, housing, seal, and locking mechanism into a single assembly. This design allows for quick and easy installation. The unit is ideal for various applications where shaft alignment may be an issue. It is constructed to operate effectively even under challenging conditions.

• Designed for easy installation and operation
• Self-aligning wide-inner-ring ball bearings
• Factory prelubricated with grease fitting for further lubrication

Product Highlights

This ball bearing housed unit minimizes downtime and enhances operational efficiency.

Product Information

Standard Information

• Brand: Timken
• MPN: YCJM17/16T

Technical Specifications

• Type: Wide Inner Ring Ball Bearing Insert
• Material: Steel
• Bore Diameter: 1.43775 Inch
• Outside Diameter: 3.149 Inch
• Overall Width: 5.130 Inch
• Overall Height: 2.141 Inch
• Dynamic Load Capacity: 8130 lb
• Static Load Capacity: 4460 lb
• Rolling Element: Ball
