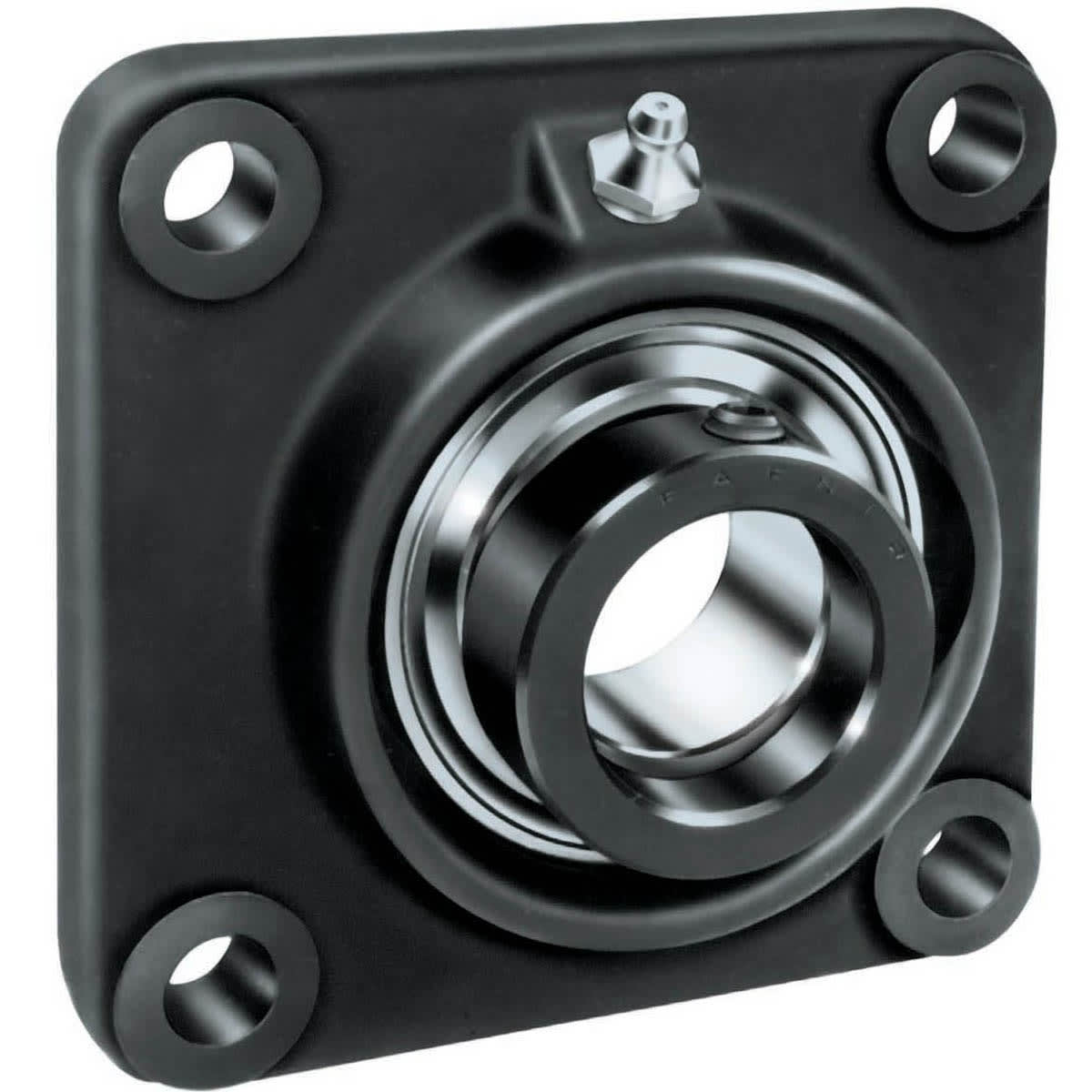

Timken VCJ23/16 Four Bolt Ball Flange Unit

Product Description

The Timken Fafnir VCJ23/16 ball bearing housed unit integrates the bearing, housing, seal, and locking system into a single assembly. This design facilitates straightforward installation and operation, which is ideal for various mechanical applications.

• The flange cartridges are pre-assembled and ready to mount.
• Constructed with GRA-RRB bearings and features positive-contact seals.
• They come pre-lubricated for immediate use.

Product Highlights

Timken's housed units are made to address specific application needs, helping to enhance equipment performance while minimizing downtime.

Product Information

Standard Information

• Brand: Timken
• Part Number: VCJ23/16T

Technical Specifications

• Type: Wide Inner Ring Ball Bearing Insert
• Material: Steel
• Bore Diameter: 2.1878 inches
• Outside Diameter: 3.9367 inches
• Overall Width: 6.380 inches
• Overall Height: 2.672 inches
• Overall Length: 6.38 inches
• Dynamic Load Capacity: 10800 lb
• Static Load Capacity: 6570 lb
• Rolling Element: Ball
• Retainer Material: Nylon
• Cage Type: One Piece Molded Nylon
• Precision Class: ISO Normal/ABEC1
• Radial Internal Clearance: P(C3)
