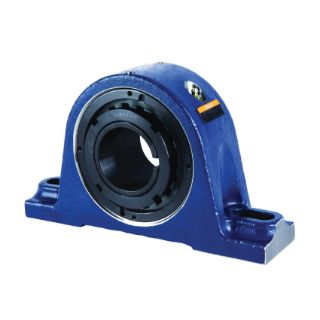

Timken TAPN20K307SM Pillow Block Spherical Roller Bearing Unit

Product Description

The Timken TAPN20K307SM is a pillow block spherical roller bearing unit designed for high radial load applications. This bearing features a cylindrical bore and is equipped with a tapered adapter for secure mounting. It's built to withstand harsh conditions in various industries.

• High-performance, low operating temperature design.
• Cast steel housing with a powder-coated finish.
• Triple-lip sealing for superior protection against contaminants.

Product Highlights

This bearing unit is ideal for heavy-duty applications in metal mills, power generation, and other industrial settings. It is designed to provide reliability and durability.

Product Information

Standard Information

• Brand: Timken
• Type: Extra Heavy Duty SN Style Solid Block

Technical Specifications

• MPN: TAPN20K307SM
• Bore Diameter: 3-7/16 inches
• Bolt Center-to-Center Length: 10.88 to 12.88 inches
• Base to Bore Centerline: 4.409 inches
• Overall Length: 14-3/4 inches
• Overall Width: 4.03 inches
• Overall Height: 8.54 inches
• Load Capacity: 97700 lb Dynamic / 113000 lb Static
• Maximum Speed: 1200 rpm
• Mounting Type: Two-Bolt Base
• Expansion Type: Non-Expansion (Fixed)
• Locking Device: Tapered Adapter
• Seal Type: Triple Lip M
• Material: Cast Steel
• Finish: Powder Coated
