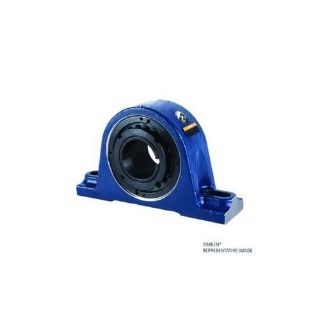

Timken TAPN20K307SEM Pillow Block 3.4375 in Bore TAPN

Product Description

The Timken TAPN20K307SEM is a robust pillow block designed for demanding environments. This unit features a bore diameter of three point four three seven five inches, making it suitable for various applications. It incorporates multiple steel housing options and a tapered adapter locking device, ensuring a secure fit and durability.

• Designed for high-load applications with a dynamic load capacity of ninety-seven thousand seven hundred pounds.
• Medium duty contact triple-lip seal made of nitrile rubber, offering superior sealing in moist and dirty applications.
• Temperature rating ranges from negative fifty to two hundred degrees Fahrenheit.

Product Highlights

This pillow block is engineered for reliable performance with multi-point sealing solutions, ensuring uptime in harsh operating conditions.

Product Information

Standard Information

• Brand: Timken
• Part Number: TAPN20K307SEM

Technical Specifications

• Bore Diameter: 3.4375 in
• Bolt Center-to-Center Length: 10.88 to 12.88 in
• Base Width: 3.42 in
• Overall Length: 14.7 in
• Overall Width: 4.03 in
• Overall Height: 8.54 in
• Mounting Type: 2-Bolt
• Load Capacity: 97700 lb Dynamic / 113000 lb Static
• Seal Type: M Seal
• Maximum Speed: 1200 rpm Grease / 1200 rpm Oil
• Expansion Type: Expansion
• Temperature Rating: -50 to 200 deg F
• Base to Bore Centerline: 4.41 in
