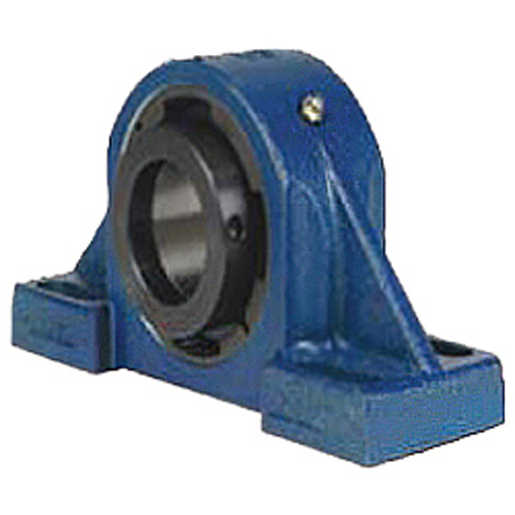

Timken TAPH20K307SET Pillow Block

Product Description

The Timken Pillow Block TAPH20K307SET is designed to perform in demanding environments. Its robust construction features a cylindrical bore measuring three point four three seven five inches and accommodates shaft sizes efficiently. The mounting design includes four bolts, which ensure a secure installation, while the tapered adapter locking mechanism provides an easy fit.

• Dynamic load capacity of ninety-seven thousand seven hundred pounds and static load capacity of one hundred thirteen thousand pounds
• Temperature range from minus one hundred to five hundred degrees Fahrenheit
• Suitable for high-speed applications with maximum speeds of one thousand six hundred RPM for grease and two thousand RPM for oil

Product Highlights

Engineered for high-load and dirty conditions, the Timken Pillow Block ensures reliable operation.

Product Information

Standard Information

• Brand: Timken
• MPN: TAPH20K307SET

Technical Specifications

• Bore Diameter: 3.4375 inches
• Bolt Center-to-Center Length: 10.88 to 13.38 inches
• Base Width: 4.31 inches
• Overall Length: 15 inches
• Overall Width: 4.46 inches
• Overall Height: 8.54 inches
• Mounting Type: 4-Bolt
• Seal Type: T Seal
