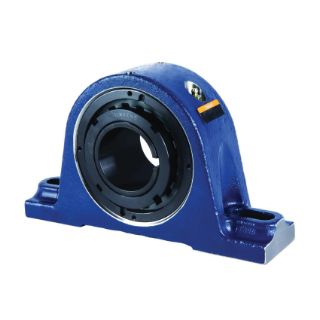

Timken TAPA17K215ST Pillow Block Spherical Roller Bearing Unit

Product Description

The Timken TAPA17K215ST is a pillow block spherical roller bearing unit that features a bore diameter of two and fifteen sixteenths inches. This unit is designed to handle significant radial loads and is suitable for various applications, including metal mills and HVAC systems.

• High-performance, low operating temperature design
• Cast steel housing for durability
• Unique locking and sealing options for protection against contaminants

Product Highlights

This Timken bearing unit is engineered for high reliability, providing robust performance in demanding environments.

Product Information

Standard Information

• Brand: Timken
• Manufacturer: Timken

Technical Specifications

• MPN: TAPA17K215ST
• Bore Diameter: 2-15/16 inches
• Bolt Center-to-Center Length: 9-1/2 to 11 inches
• Base to Bore Centerline: 3-3/4 inches
• Overall Length: 12.63 inches
• Overall Width: 3.47 inches
• Overall Height: 7.32 inches
• Load Capacity: 66900 lb Dynamic / 71900 lb Static
• Maximum Speed: 2000 rpm Grease / 2400 rpm Oil
• Mounting Type: Two-Bolt Base
• Locking Device: Tapered Adapter
• Expansion Type: Non-Expansion (Fixed)
• Finish: Powder Coated
• Material: Cast Steel
• Bore Type: Cylindrical
• Seal Type: Labyrinth T
• Base Width: 3 inches
