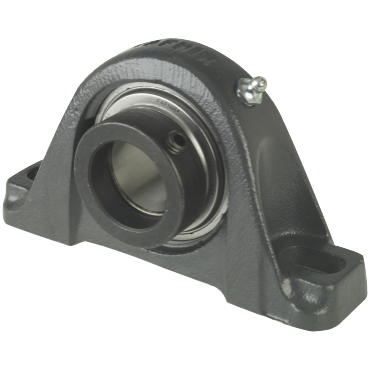

Timken TAK1 3/16 Pillow Block Ball Bearing Housed Unit

Product Description

The Timken TAK1 3/16 is a pillow block ball bearing housed unit designed for standard duty applications. This unit includes a bearing, housing, seal, and locking mechanism, all in one assembly for easy installation. It features a bore diameter of one point one eight inches, ideal for various industries including agriculture and food processing.

• Manufactured from cast iron for durability.
• Has a load capacity of seven thousand eight hundred ninety pounds dynamic and five thousand two hundred ten pounds static.
• Equipped with a tri-ply contact seal for enhanced protection against contaminants.

Product Highlights

This pillow block unit helps prevent equipment downtime due to its superior sealing technology and supports demanding applications.

Product Information

Standard Information

• Brand: Timken
• Type: Standard Duty

Technical Specifications

• Series: TAK Industrial Series
• Bore Diameter: 1.18 inches
• Bolt Center-to-Center Length: 4-5/8 inches
• Base to Bore Centerline: 1.444 inches
• Overall Length: 6-3/16 inches
• Overall Width: 4.62 inches
• Overall Height: 3-7/32 inches
• Base Width: 1-11/16 inches
• Mounting Type: Low Base
• Load Capacity: 7890 lb Dynamic / 5210 lb Static
• Locking Device: Eccentric
• Seal Type: Tri-Ply Contact
