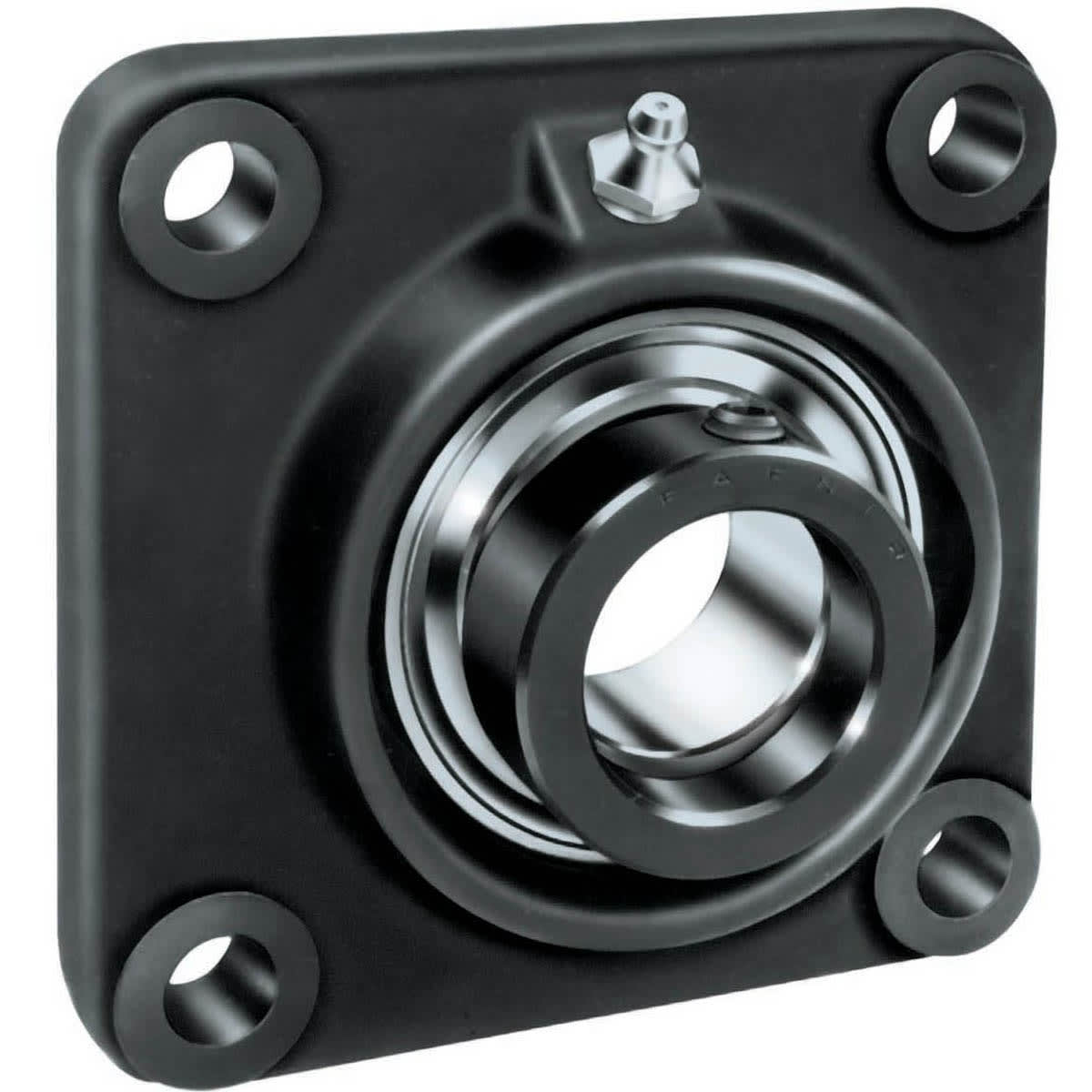

TIMKEN RCJO115/16 Four Bolt Ball Flange Unit

Product Description

The Timken Fafnir RCJO115/16 four bolt ball flange unit includes the bearing, housing, seal, and locking system in one device for straightforward installation and operation. These units are designed to address specific application needs through advanced technology, reducing downtime and enhancing performance.

• Each unit comes fully assembled for easy mounting.
• Features self-aligning B-type wide-inner-ring ball bearings for shaft misalignment compensation.
• Factory prelubricated with an option for relubrication via a grease fitting.

Product Highlights

Timken's engineering solutions are proven to improve efficiency and reliability in various applications.

Product Information

Standard Information

• Brand: TIMKEN
• Part Number: RCJO115/16T

Technical Specifications

• Type: Wide Inner Ring Ball Bearing Insert
• Material: Steel
• Bore Diameter: 1.938 Inch | 49.2252 mm
• Outside Diameter: 4.3307 Inch | 109.99978 mm
• Overall Width: 5.625 Inch | 142.875 mm
• Overall Height: 2.178 Inch | 55.3212 mm
• Static Load Capacity: 8510 lb
• Dynamic Load Capacity: 13900 lb
