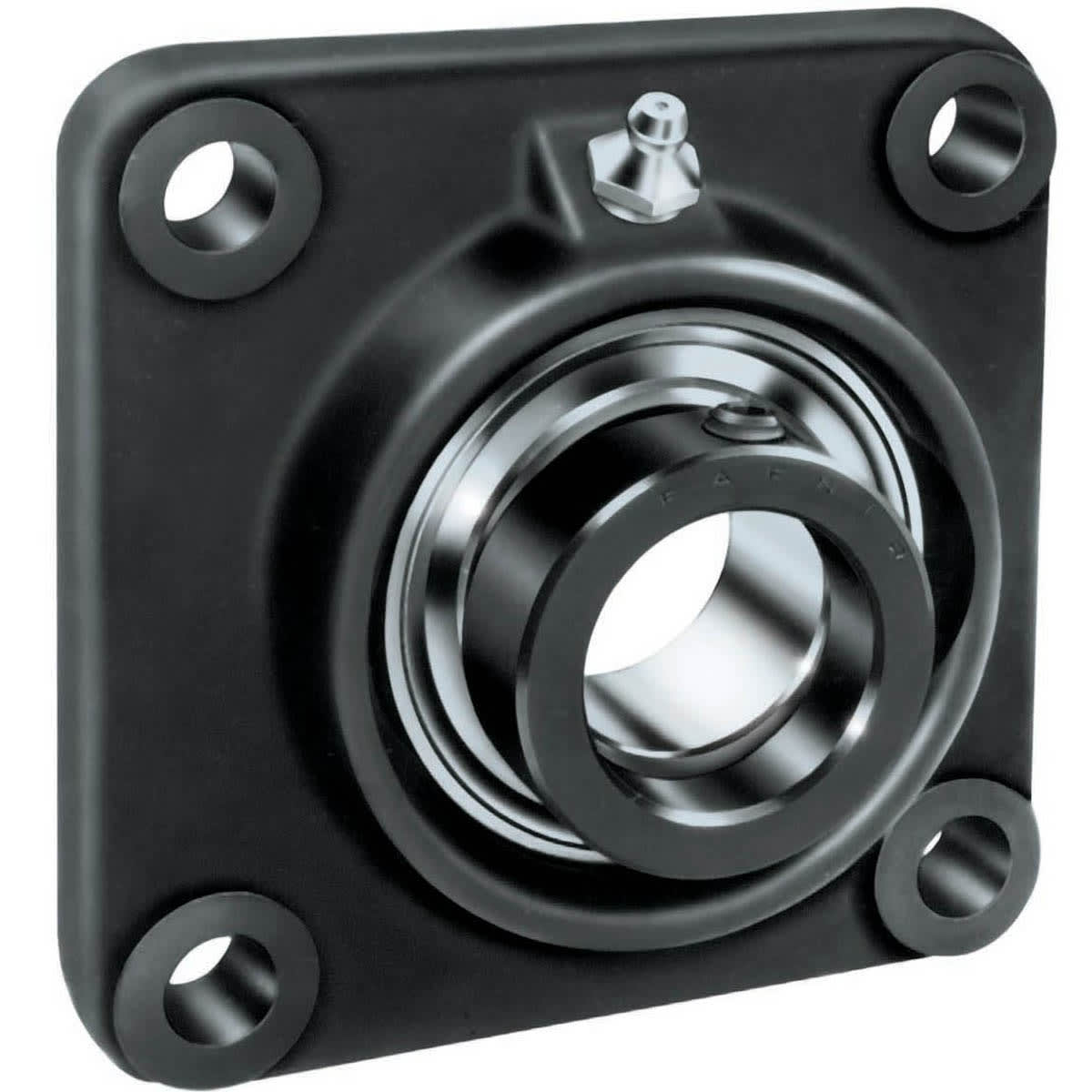

Timken RCJC23/16 Four Bolt Ball Flange Unit

Product Description

The Timken Fafnir RCJC23/16 is a four bolt ball flange unit designed for reliability. This product incorporates the bearing, housing, seal, and locking system into one efficient device, making installation and operation straightforward. Its design focuses on solving application-specific issues, helping to minimize downtime and enhance performance.

• Assembled and ready for mounting
• Self-aligning design compensates for shaft misalignment
• Factory prelubricated with option for relubrication

Product Highlights

Timken Fafnir housed units offer superior technology to keep equipment running efficiently.

Product Information

Standard Information

• Brand: Timken
• MPN: RCJC23/16

Technical Specifications

• Type: Wide Inner Ring Ball Bearing Insert
• Material: Steel
• Bore Diameter: 2.1878 Inch | 55.57012 mm
• Outside Diameter: 3.937 Inch | 100 mm
• Overall Width: 6.375 Inch | 161.925 mm
• Overall Height: 2.336 Inch | 59.3344 mm
• Overall Length: 6.375 Inch | 161.925 mm
• Net Weight: 2.082 lb
• Dynamic Load Capacity: 10800 lb
• Static Load Capacity: 6570 lb
• Precision Class: ISO Normal/ABEC1
• Rolling Element: Ball
• Cage Type: One Piece Molded Nylon
