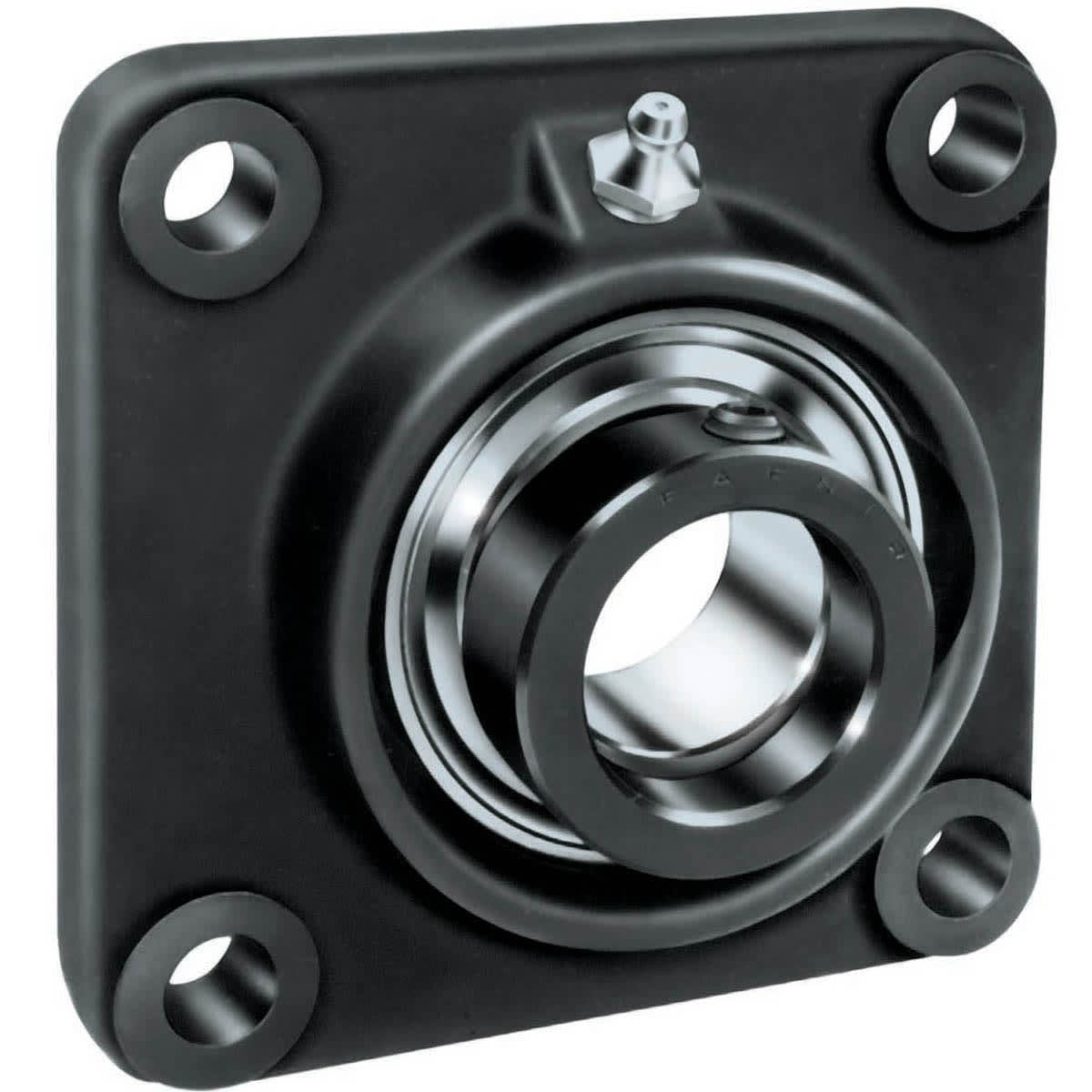

Timken RCJ3/4 Four Bolt Ball Flange Unit | 0.75 in Bore

Product Description

The Timken RCJ3/4 is a four bolt ball flange unit designed to ensure efficient performance. This unit integrates a bearing, housing, seal, and locking system in one easy-to-install product. It is engineered for specific application needs, helping to minimize downtime through advanced technology.

• Simple installation process with an assembled unit.
• Self-aligning design accommodates shaft misalignment.
• Factory pre-lubricated with a grease fitting for future lubrication.

Product Highlights

This product guarantees smooth operation through its reliable design and construction.

Product Information

Standard Information

• Brand: Timken
• MPN: RCJ3/4

Technical Specifications

• Type: Wide Inner Ring Ball Bearing Insert
• Bore Diameter: 0.75025 Inch | 19.05635 mm
• Overall Width: 3.380 Inch | 85.852 mm
• Overall Height: 1.828 Inch | 46.4312 mm
• Outside Diameter: 1.85017 Inch | 46.994318 mm
• Net Weight: 21.5 lb
• Dynamic Load Capacity: 3190 lb
• Static Load Capacity: 1480 lb
