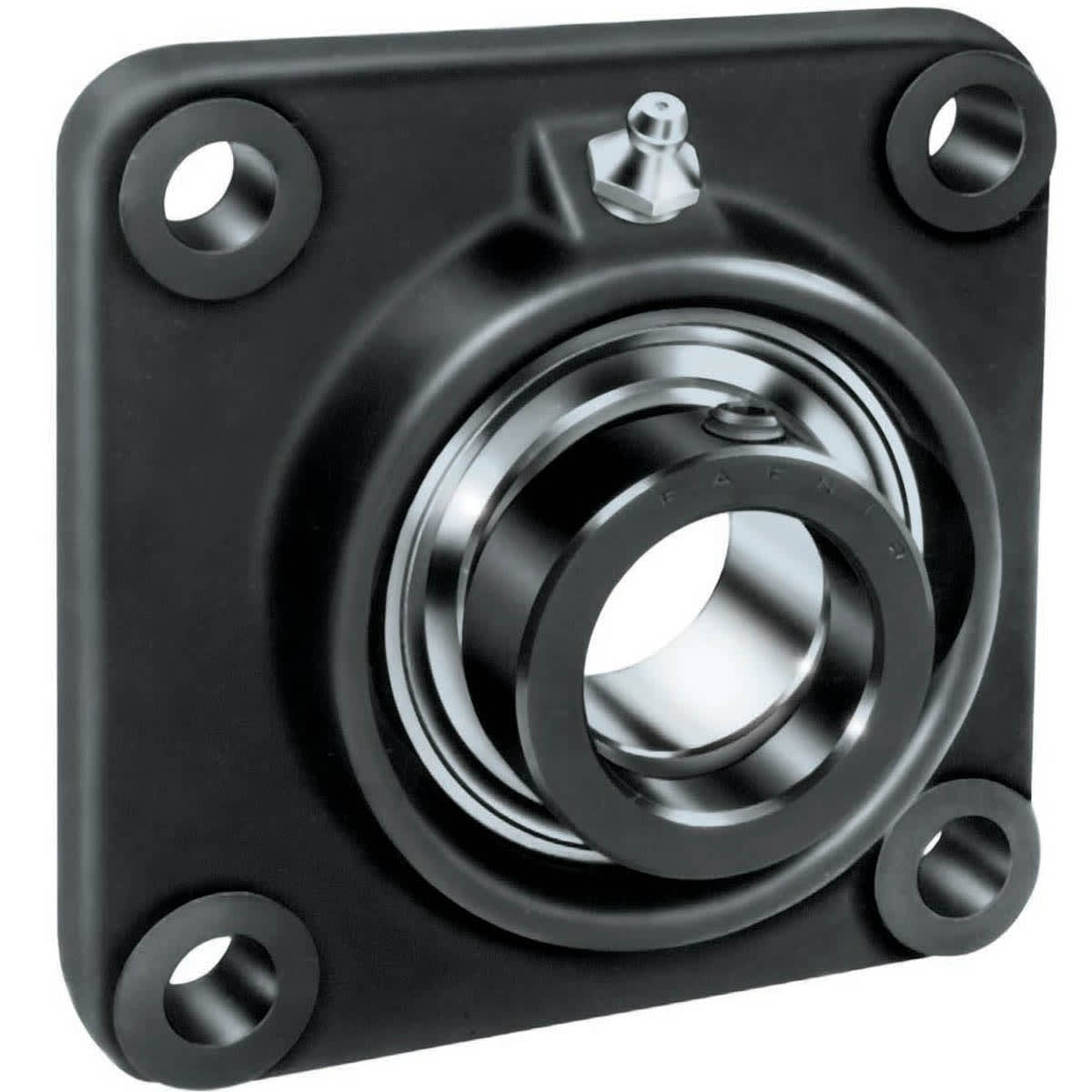

Timken RCJ27/16 Four Bolt Ball Flange Unit

Product Description

The Timken RCJ27/16 is a four bolt ball flange unit designed for optimal performance. This unit combines the bearing, housing, seal, and locking system into one compact device, which simplifies installation and operation.

• Each unit comes fully assembled for easy mounting.
• Features self-aligning wide-inner-ring ball bearings that adjust for shaft misalignment.
• Factory prelubricated with a grease fitting for relubrication.

Product Highlights

This high-performance flange unit reduces downtime with innovative technology, making it suitable for various applications where efficiency is critical.

Product Information

Standard Information

• Brand: Timken
• Part Number: RCJ27/16T

Technical Specifications

• Type: Wide Inner Ring Ball Bearing Insert
• Bore Diameter: 2.4378 Inch | 61.92012 mm
• Outside Diameter: 4.3304 Inch | 109.99216 mm
• Overall Width: 6.875 Inch | 174.625 mm
• Overall Height: 3.214 Inch | 81.6356 mm
• Overall Length: 6.875 Inch | 174.625 mm
• Net Weight: 1.73 lb
• Static Load Capacity: 8080 lb
• Dynamic Load Capacity: 13100 lb
• Rolling Element: Ball
• Precision Class: ISO Normal/ABEC1
• Cage Type: One Piece Molded Nylon
