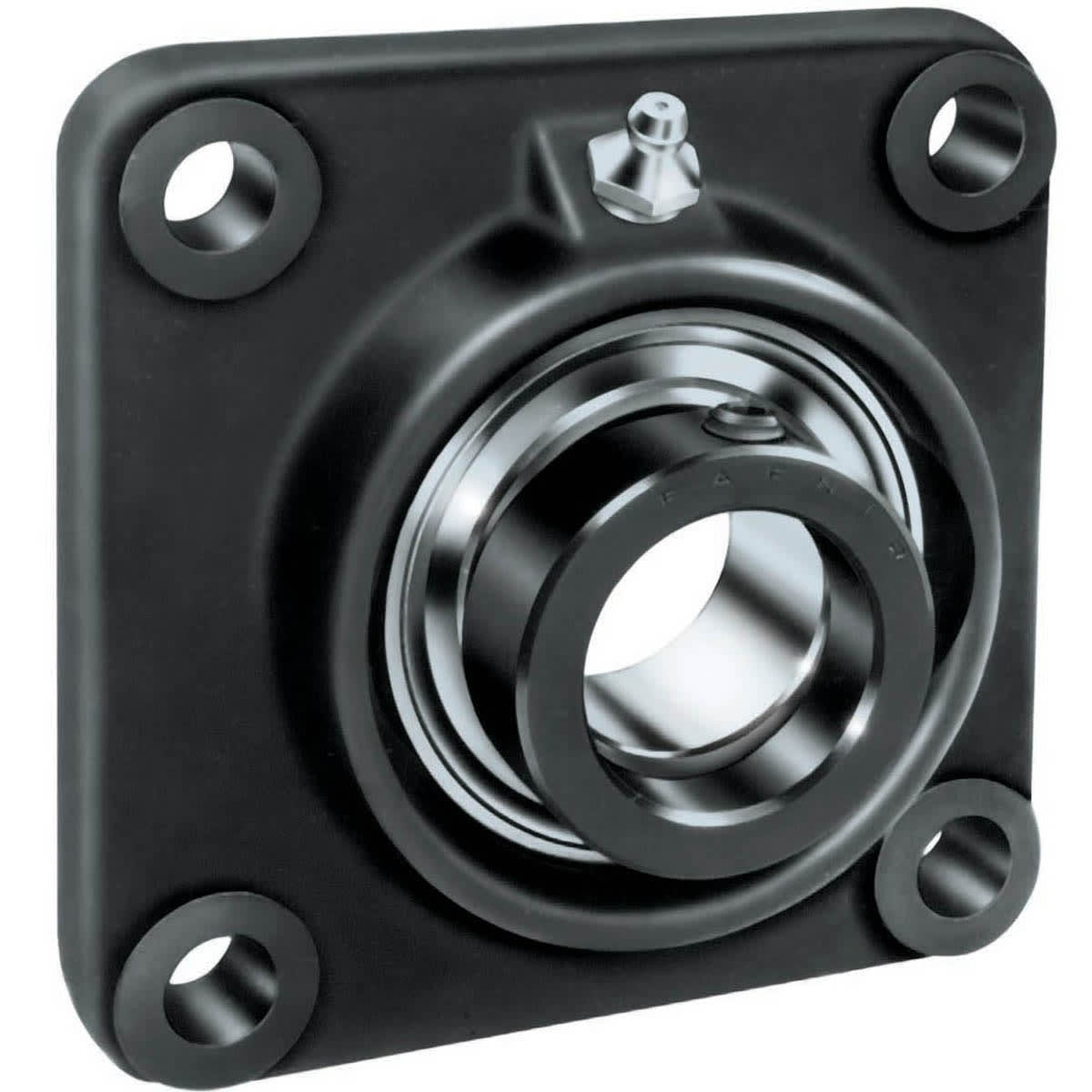

Timken RCJ23/16 Four Bolt Ball Flange Unit

Product Description

Timken RCJ23/16 is a four-bolt ball flange unit designed for reliable performance. This unit combines the bearing, housing, seal, and locking system to ensure easy installation and operation.

• Preassembled for easy mounting
• Self-aligning feature compensates for shaft misalignment
• Factory pre-lubricated with a grease fitting for relubrication

Product Highlights

This ball bearing housed unit is a problem solver that helps prevent downtime. It uses advanced technology to enhance equipment efficiency.

Product Information

Standard Information

• Brand: Timken
• Part Number: RCJ23/16T

Technical Specifications

• Bore Diameter: 2.1878 Inch | 55.57 mm
• Outside Diameter: 3.9367 Inch | 99.99 mm
• Overall Width: 6.375 Inch | 161.93 mm
• Overall Height: 2.958 Inch | 75.13 mm
• Net Weight: 67.5 lb
• Dynamic Load Capacity: 10800 lb
• Static Load Capacity: 6570 lb
• Material: Steel
