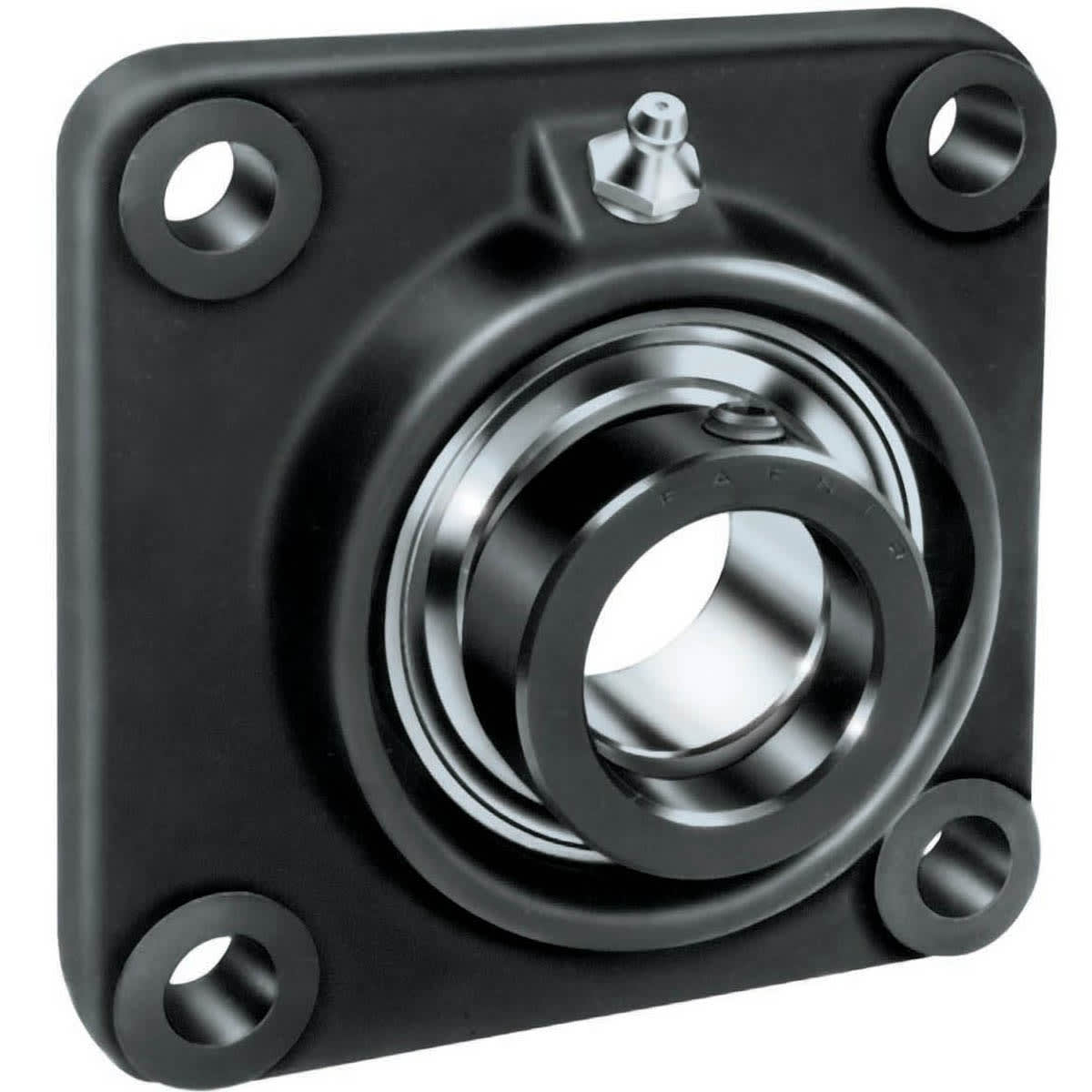

Timken RCJ13/4 Four Bolt Ball Flange Unit

Product Description

The Timken RCJ13/4 is a four bolt ball flange unit designed for ease of installation and operation. This unit integrates the bearing, housing, seal, and locking system into a single package. The ball bearing housed units are crafted to meet various application challenges with superior technology.

• Each unit comes fully assembled for quick mounting.
• Wide-inner-ring ball bearings compensate for shaft misalignment.
• Units are prelubricated with a grease fitting for additional relubrication.

Product Highlights

Timken's problem solver series aids in reducing downtime and optimizes equipment performance.

Product Information

Standard Information

• Brand: TIMKEN
• MPN: RCJ13/4

Technical Specifications

• Type: Wide Inner Ring Ball Bearing Insert
• Material: Steel
• Bore Diameter: 1.75025 Inch | 44.45635 mm
• Overall Width: 5.375 Inch | 136.525 mm
• Overall Height: 2.334 Inch | 59.2836 mm
• Overall Length: 5.375 Inch | 136.525 mm
• Outside Diameter: 3.3462 Inch | 84.99348 mm
• Static Load Capacity: 4600 lb
• Dynamic Load Capacity: 8160 lb
• Radial Internal Clearance: P(C3)
