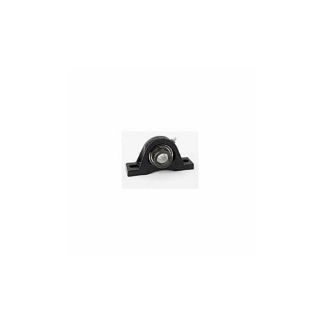

Timken RAK3/4 Pillow Block Ball Bearing Unit

Product Description

Timken RAK3/4 is a pillow block ball bearing unit designed for heavy-duty applications. This unit features a three-quarter inch bore and is designed for mounting on straight shafts with ease. The solid, flat feet provide increased strength and reliability in various applications such as agriculture and food processing.

• Designed for quick and easy installation.
• Pre-lubricated and ready for immediate use.
• Equipped with a shroud seal for added protection.

Product Highlights

This bearing unit supports high dynamic loads and operates at maximum speeds of 6270 RPM. This makes it ideal for use in fans, blowers, and conveyors.

Product Information

Standard Information

• Brand: Timken
• Type: Normal Duty

Technical Specifications

• MPN: RAK3/4
• Bore Diameter: 3/4 in
• Load Capacity: 5680 lb Dynamic / 2850 lb Static
• Maximum Speed: 6270 RPM
• Material: Cast Iron
• Temperature Rating: 250 deg F
• Mounting Type: Two-Bolt Base
• Overall Length: 5 in
• Overall Width: 1-23/32 in
• Overall Height: 2.531 in
• Base Width: 1.311 in
• Base to Bore Centerline: 1-1/4 in
• Bolt Center-to-Center Length: 3.78 in
• Expansion Type: Non-Expansion (Fixed)
