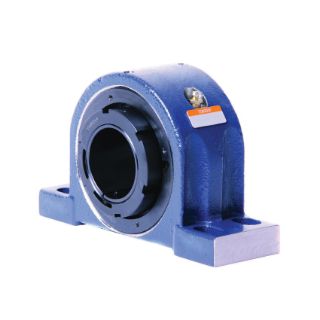

Timken QVVPG13V203ST Pillow Block Spherical Roller Bearing Unit

Product Description

The Timken QVVPG13V203ST is a pillow block spherical roller bearing unit designed for heavy-duty applications. This unit features a bore diameter of two and thirteen-sixteenths inches and a bolt center-to-center length that ranges from seven point eighteen to eight point fifty-six inches.

• Robust cast steel housing for durability.
• Designed for high radial loads in demanding environments.
• Equipped with a patented Double V-Lock locking device.

Product Highlights

Ideal for industries such as mining, power generation, and HVAC, this bearing unit provides reliability and longevity in harsh conditions.

Product Information

Standard Information

• Brand: Timken
• MPN: QVVPG13V203ST

Technical Specifications

• Bore Diameter: 2-13/16 in
• Overall Length: 10.31 in
• Overall Width: 4.02 in
• Overall Height: 6.1 in
• Base Width: 3-1/4 in
• Maximum Speed: 2800 rpm Grease / 3200 rpm Oil
• Load Capacity: 46400 lb Dynamic / 48600 lb Static
• Mounting Type: Four-Bolt Base
• Seal Type: Labyrinth T
• Locking Device: Double V-Lock
• Expansion Type: Non-Expansion (Fixed)
• Base to Bore Centerline: 3.15 in
• Bolt Center-to-Center Length: 7.18 to 8.56 in
