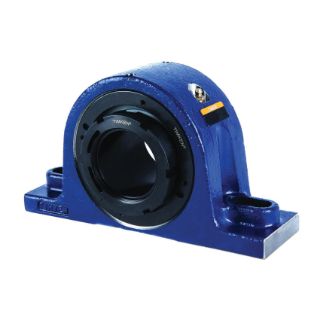

Timken QVP16V300SM Pillow Block Spherical Roller Bearing Unit

Product Description

The Timken QVP16V300SM is a durable pillow block spherical roller bearing unit designed for heavy-duty applications. This unit features a three-inch bore and is made with high-quality cast steel for longevity. The design includes a unique locking mechanism and sealing options that provide protection from contaminants, making it suitable for harsh environments.

• Designed for high radial load handling.
• Stable performance under maximum speeds of one thousand five hundred RPM.
• Quick installation with a two-bolt base mounting.

Product Highlights

This bearing unit excels in various industrial applications, including metal mills, power generation, and HVAC systems.

Product Information

Standard Information

• Brand: Timken
• MPN: QVP16V300SM

Technical Specifications

• Bore Diameter: 3 inches
• Overall Length: 11.63 inches
• Overall Width: 3.59 inches
• Overall Height: 6.47 inches
• Base Width: 3 inches
• Bolt Center-to-Center Length: 7.8 to 9.63 inches
• Base to Bore Centerline: 3.13 inches
• Dynamic Load Capacity: 57200 lb
• Static Load Capacity: 62500 lb
• Maximum Speed: 1500 RPM
• Material: Cast Steel
• Mounting Type: Two-Bolt Base
• Locking Device: Single V-Lock
• Expansion Type: Non-Expansion (Fixed)
• Seal Type: Triple Lip M
• Finish: Powder Coated
