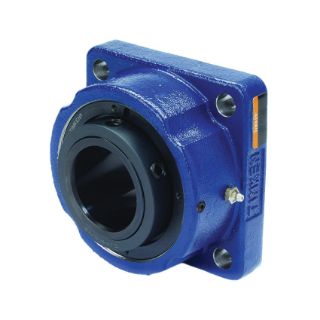

Timken QAAFX20A400SO QM Heavy Duty Non-Expansion Cylindrical Bore Spherical Roller Bearing Unit

Product Description

Timken QAAFX20A400SO is a heavy duty non-expansion cylindrical bore spherical roller bearing unit designed for high performance. This unit features a four bolt square flange for secure mounting in various applications. Its robust construction makes it suitable for challenging environments.

• Handles high radial loads effectively
• Compatible with harsh conditions safeguarding against contaminants
• Designed for efficient operation with low temperature rise

Product Highlights

Ideal for industrial applications, this bearing unit ensures durability and reliability in demanding situations.

Product Information

Standard Information

• Brand: Timken
• Manufacturer: Timken

Technical Specifications

• Type: Heavy Duty Non-Expansion Cylindrical Bore
• Bore Diameter: 4 in
• Load Capacity: 97700 lb Dynamic / 113000 lb Static
• Maximum Speed: 900 rpm
• Overall Depth: 5.92 in
• Seal Material: Urethane
• Locking Device: Double Concentric Collar
• Overall Height: 10.56 in
• Temperature Rating: -40 to 250 deg F
• Bolt Circle Diameter: 11-3/4 in
• Flange Mounting Type: 4-Bolt Square
• Overall Length/Diameter: 10.56 in
• Bolt Center-to-Center Length: 8.31 in
