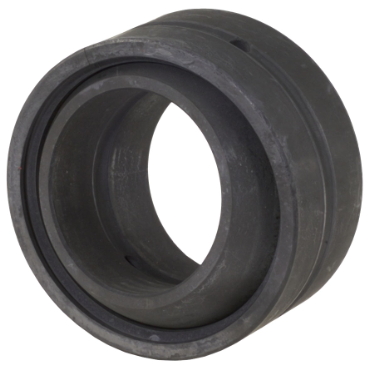

Timken Co. 5SF8 Type SF Spherical Plain Bearing

Product Description

The Timken Co. 5SF8 is a Type SF spherical plain bearing designed for use in various applications. This bearing is suitable for mining equipment, construction equipment, and hydraulic or pneumatic actuators. It features a bore size of one half inch and an outer diameter of zero point eight seven five inches, providing a robust solution for heavy-duty tasks.

• Bore size: 1/2 inch
• Dynamic load rating: 2690 lbf
• Unsealed design for easier maintenance

Product Highlights

Ideal for demanding applications, the Timken 5SF8 offers reliable performance in severe conditions.

Product Information

Standard Information

• Brand: Timken Co.
• Part #: 100740329

Technical Specifications

• I.D.: 1/2 inch
• O.D.: 0.875 inch
• Dynamic Load Rating: 2690 lbf
• Static Load Rating [Max]: 8330 lbf
• Enclosure: Unsealed
• Ball Material: Phosphate treated, coated with MoS2
• Inner Ring Width: 7/16 inch
• Outer Ring Width: 3/8 inch
