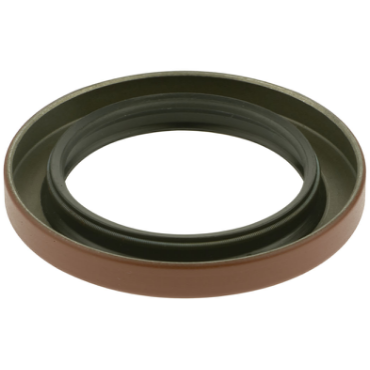

Timken Co. 417556 Dual Lip with One Spring

Product Description

The Timken Co. 417556 is a dual lip shaft seal designed for general purpose applications. This seal features a nitrile lip material suitable for various industrial needs. It is crafted to meet the requirements for both shaft and housing dimensions, ensuring effective sealing to prevent leakage.

• 5.625 inches shaft diameter
• 6.874 inches housing bore diameter
• Internal lip style for better fluid containment

Product Highlights

This dual lip design offers enhanced sealing capability and durability.

Product Information

Standard Information

• Brand: Timken Co.
• Part Number: 100753978

Technical Specifications

• Shaft Diameter: 5.625 inches
• Housing Bore Diameter: 6.874 inches
• Width: 0.500 inches
• Lip Material: Nitrile
• Spring Material: Carbon Steel Garter
• Pressure: 7 psi
• Temperature Range: -40 °F to 225 °F
• Misalignment & Runout: 0.015 @ 800, 0.010 @ 4200
• Seal Design: Assembled Design
• Case Construction: Steel Case with Inner Case
• Seal Application: General Purpose
• Inch/Metric: Inch
• Construction: 41
• Lip Type: Dual Lip w/One Spring
• Lip Style: Internal
• EAN or UPC: 53893486062
