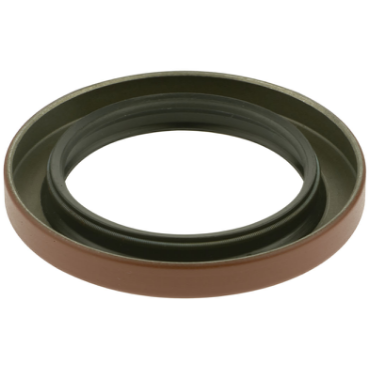

Timken Co. 410520 Dual Lip with One Spring

Product Description

The Timken Co. 410520 is a dual lip shaft seal designed for general applications. This product is suitable for various purposes where effective sealing is required. The dual lip design helps maintain pressure and reduce leakage, ensuring better performance. The seal is made of durable nitrile material, making it resilient against wear and tear.

• Shaft Diameter: 2.25 inches
• Housing Bore Diameter: 3 inches
• Temperature Range: -40 to 225 degrees Fahrenheit

Product Highlights

This seal is ideal for use in multiple industrial applications where reliability is critical. With an assembled design and dual lip for added protection, it is perfect for high-pressure environments.

Product Information

Standard Information

• Brand: Timken Co.
• Part #: 100753627

Technical Specifications

• Shaft Diameter: 2.25 inches
• Housing Bore Diameter: 3 inches
• Pressure Rating: 7 psi
• Temperature Range (Min): -40 degrees Fahrenheit
• Temperature Range (Max): 225 degrees Fahrenheit
• Surface Speed (Nominal): 3,000 ft/min
• Lip Material: Nitrile
• Spring Material: Carbon Steel Garter
• Lip Style: Internal
• Seal Application: General Purpose
• Case Construction: Steel Case with Inner Case
• Misalignment & Runout: 0.015” at 800, 0.010” at 4200
