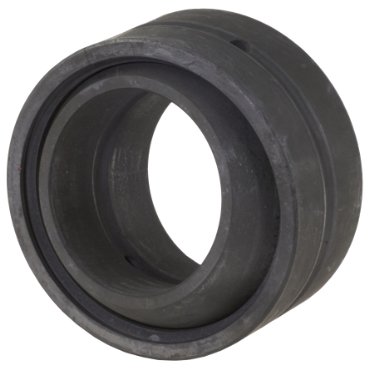

Timken Co. 27SF44 Type SF Spherical Plain Bearing

Product Description

The Timken Co. 27SF44 is a Type SF spherical plain bearing designed for robust applications. It features a bore size of two and three-quarters inches and an outer diameter of four and three-eighths inches. The bearing is unsealed, suitable for various demanding tasks.

• Bore Size: 2 3/4 inches
• Outer Diameter: 4 3/8 inches
• Dynamic Load Rating: 81600 lbf

Product Highlights

This bearing is ideal for machinery in mining, construction, and hydraulic systems.

Product Information

Standard Information

• Brand: Timken Co.
• Part Number: 100740353

Technical Specifications

• Ball Material: Phosphate Treated, Coated w/MoS2
• Housing Fillet Radius: 0.032 inches
• Self-Lubricating: No
• Enclosure: Unsealed
• Weight: 5.94 lb
• Static Load Rating [Max]: 252000 lbf
• Spherical Diameter: 3.95 inches
• EAN or UPC: 87796019713
• NSN Number: 3120-00-441-9875
