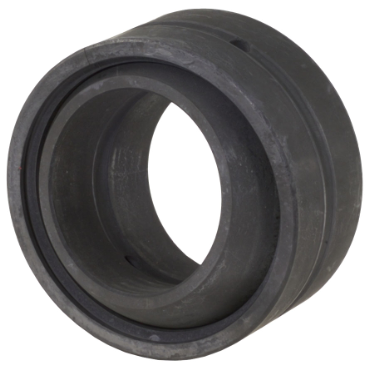

Timken Co. 25SF40 Type SF Spherical Plain Bearing

Product Description

The Timken Co. 25SF40 is a Type SF spherical plain bearing designed for heavy-duty applications. Its robust design makes it suitable for mining and construction equipment, as well as hydraulic actuators. This bearing features a bore size of two and a half inches and an outer diameter of three and nine thirty-seconds inches.

• Unsealed design for straightforward maintenance
• Dynamic load rating of sixty-seven thousand four hundred pounds
• Static load rating max of two hundred eight thousand pounds

Product Highlights

This spherical plain bearing is engineered for high-stress environments, providing reliable performance in various industrial applications.

Product Information

Standard Information

• Brand: Timken Co.
• MPN: 25SF40

Technical Specifications

• I.D.: 2 1/2 in
• O.D.: 3.9375 in
• Inner Ring Width: 2 3/16 in
• Outer Ring Width: 1 7/8 in
• Weight: 4.17 LB
• Dynamic Load Rating: 67400 lbf
• Static Load Rating [Max]: 208000 lbf
• Spherical Diameter: 3.59 in
