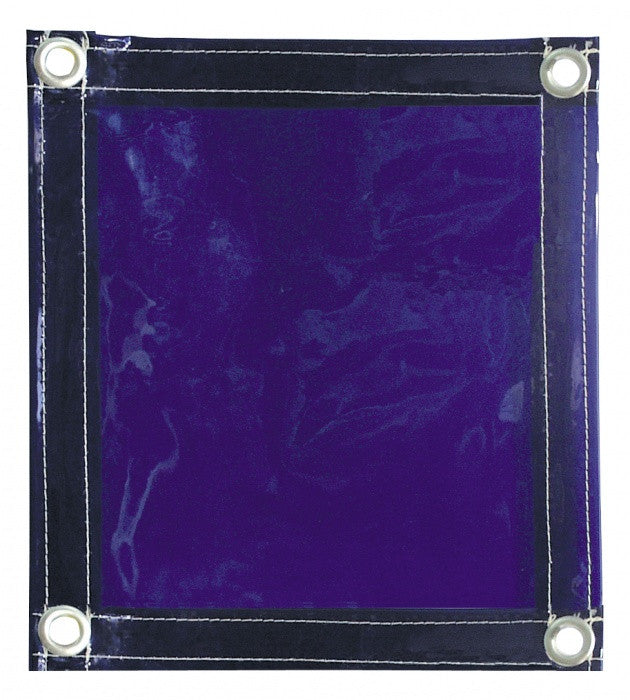

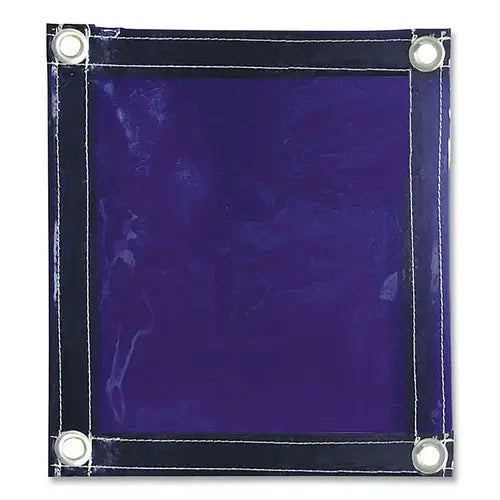

Tillman 604R610 ArcShield Welding Curtain (6 x 10 ft)

Product Description

The Tillman 604R610 is a vinyl welding curtain sized 6 x 10 ft with a 14 mil thickness. It is made from transparent flame-retardant vinyl formulated to disperse arc image while allowing light back into the work area. Edges are sewn with para-aramid reinforcement and grommets are placed on 12 in centers on all sides for hanging. The curtain is intended for indoor welding and fabrication use and provides optical protection while permitting visibility.

• 14 mil transparent flame-retardant vinyl construction
• Grommets on 12 in centers on all sides with para-aramid sewn reinforcement
• Meets FM 4950, NFPA 701, CPA 1-8 and California Fire Marshal flame-resistance approvals

Product Highlights

6 x 10 ft flame-retardant transparent vinyl welding curtain with grommets on all sides; disperses arc image while allowing light into the work area.

Product Information

Standard Information

• Brand: TILLMAN
• Manufacturer Part Number: 604R610
• Country of Origin: China

Technical Specifications

• Brand: Tillman
• MPN: 604R610
• Manufacturer: John Tillman Company
• Product Type: ArcShield welding curtain
• Material: Transparent vinyl
• Thickness: 14 mil (0.014 in)
• Size: 6 x 10 ft
• Dimensions: 72 x 120 in (6 x 10 ft)
• Color: Blue (transparent/tinted - may be tinted transparent)
• Flame Retardant: Yes
• Approvals: FM 4950; NFPA 701; CPA 1-8; California Fire Marshal
• Sewn With: Para-aramid reinforcement
• Grommet Spacing: 12 in centers
• Grommet Locations: All sides
• Intended Use: Welding; Fabrication; Indoor use
• Opacity / Formulation: Disperses arc image while allowing light back into work area
• Maximum Operating Temperature: 150 F
• Country Of Origin: China
• Item Weight: 23.1 lb (listed)
