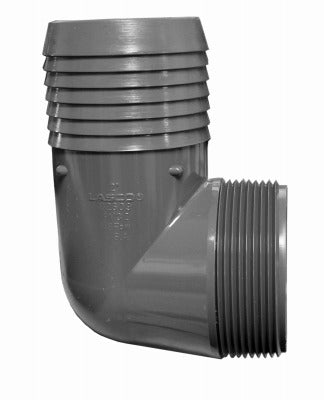

Tigre Usa Inc 1413-020 2 Inch Combo Elbow Poly Insert

Product Description

The TIGRE USA INC 1413-020 is a 2-inch combination elbow fitting designed for polyethylene (PE) pipe systems. It connects using an Insert (Ins) end on one side and a Male Iron Pipe (MIP) thread on the other, allowing directional changes within a cold-water distribution line. The fitting is manufactured for use with PE polyethylene pipe and is secured with stainless steel clamps. It carries ASTM D-2609 listing and is NSF 14 and 16 listed for potable water service, making it appropriate for drinking water and irrigation applications where code compliance is required.

This combination elbow is suited for residential and light commercial cold-water supply lines, underground PE pipe runs, and service connections where a directional change and transition to a threaded iron pipe fitting are needed in a single component. It is sold in packages of 10 units. Plumbers and pipefitters working on polyethylene water service lines are the primary installers of this fitting. It is not approved for use with compressed air or gases and must not be installed inside a dwelling.

Key Features

• Insert x Male Iron Pipe (Ins x MIP) combination elbow provides both directional change and thread transition in one fitting
• ASTM D-2609 listed construction for PE polyethylene pipe compatibility
• NSF 14 and NSF 16 listed for potable cold-water service
• Connects to PE pipe using stainless steel clamps for a secure, leak-resistant joint
• Rated for cold water only — not approved for compressed air, gases, or interior dwelling use
• Sold as a package of 10 fittings per unit of measure

Compatibility

Designed for use with PE polyethylene pipe in cold-water service applications. Fitting must be installed with stainless steel clamps per manufacturer requirements. Fitting modifications void the warranty.

Installation Notes

Installation is performed by a licensed plumber following applicable plumbing codes such as the International Plumbing Code (IPC). Shut off the water supply and relieve line pressure before cutting into any existing PE pipe. Secure the insert end with appropriately sized stainless steel clamps torqued per clamp manufacturer guidelines. Do not use this fitting on hot-water lines, compressed air systems, gas lines, or any interior dwelling application.

Technical Specifications

• Size: 2 inches
• Connection Type: Insert x Male Iron Pipe (Ins x MIP)
• Fitting Type: Combination Elbow
• Pipe Material Compatibility: PE Polyethylene
• Service: Cold water only
• Certifications: ASTM D-2609, NSF 14, NSF 16
• Package Quantity: 10 per package
• Weight: 3.2 pounds

Standard Information

• Brand: TIGRE USA INC
• Manufacturer Part Number: 1413-020
