Thomson Industries FSB16 Flange Mount Shaft Support 1 in

Product Description

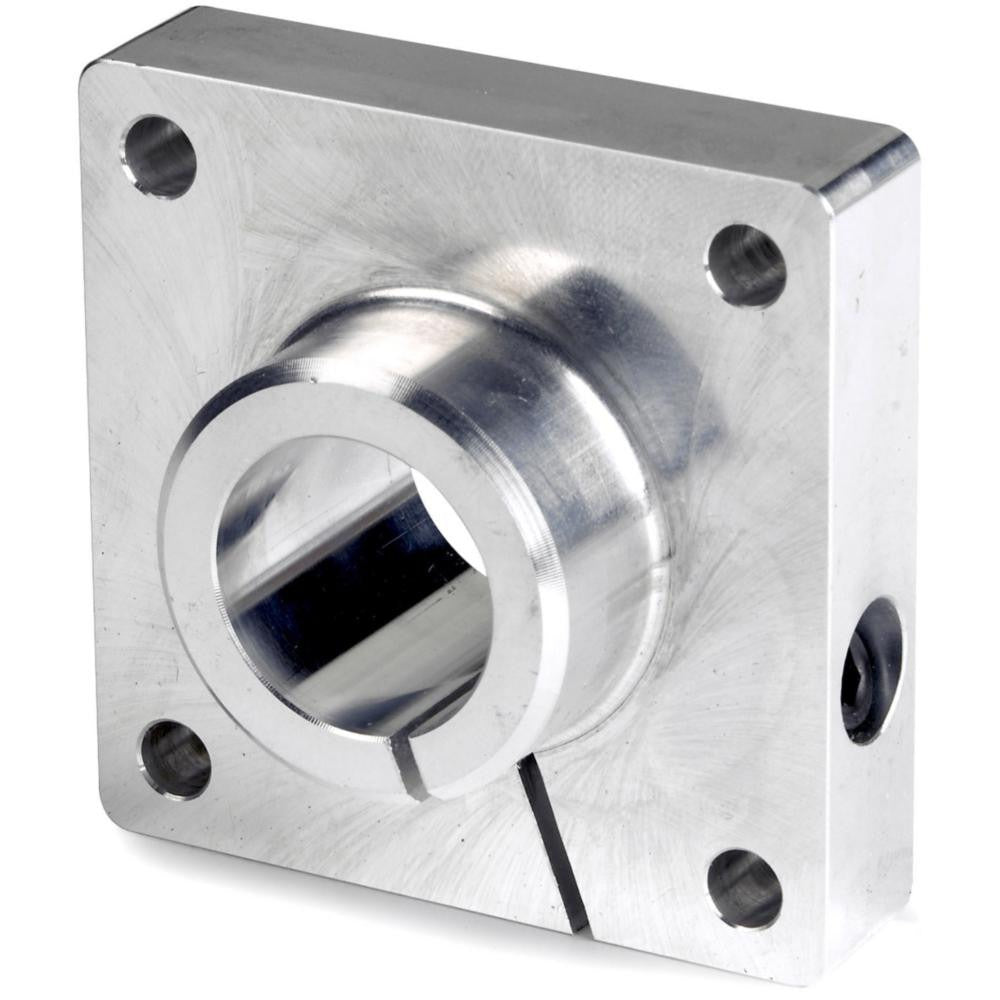

The THOMSON INDUSTRIES FSB16 is a flange-mount shaft support designed for plain shafting applications in linear motion systems. Machined from aluminum alloy, this support block holds a 1-inch diameter shaft securely in position while the flange base provides a stable, bolt-down mounting interface. The FSB16 stands 2.75 inches overall height with a center height of 1.06 inches, making it a compact but rigid support for linear actuator assemblies, conveyor systems, and machine tool setups. Maintenance technicians and mechanical assemblers typically install this component during initial machine build or shaft replacement service.

The FSB16 is suited for light-to-medium duty linear motion applications where a plain shaft must be supported at fixed intervals along its run. Typical installations include linear slide assemblies, automation equipment, and industrial machinery frames where consistent shaft alignment is critical to smooth carriage travel. The flange mount base allows the support to be fastened directly to a flat surface using standard hardware through the 0.27-inch mounting holes spaced 2.125 inches center-to-center.

Key Features

• Accepts 1-inch diameter plain shafts for standard linear motion configurations
• Flange mount base with 0.27-inch mounting holes on 2.125-inch center-to-center spacing for direct surface attachment
• Aluminum alloy construction provides a lightweight and corrosion-resistant support body
• 1.06-inch center height positions the shaft axis precisely above the mounting surface
• Overall length of 1.25 inches and height of 2.75 inches for a compact footprint in tight assemblies
• 5/8-inch thread size for shaft retention or set hardware compatibility

Compatibility

Designed as an OEM-style replacement or new-installation shaft support for plain shaft linear motion assemblies requiring a 1-inch shaft diameter and flange-style mounting.

Installation Notes

Installation is typically performed by mechanical technicians or machine builders. De-energize all power sources and relieve any load on the shaft assembly before removing or installing shaft supports. Use appropriately sized fasteners through the flange mounting holes and verify shaft alignment across all support points before final torque of mounting hardware. Consult the equipment manufacturer documentation and applicable machinery safety standards for your application.
