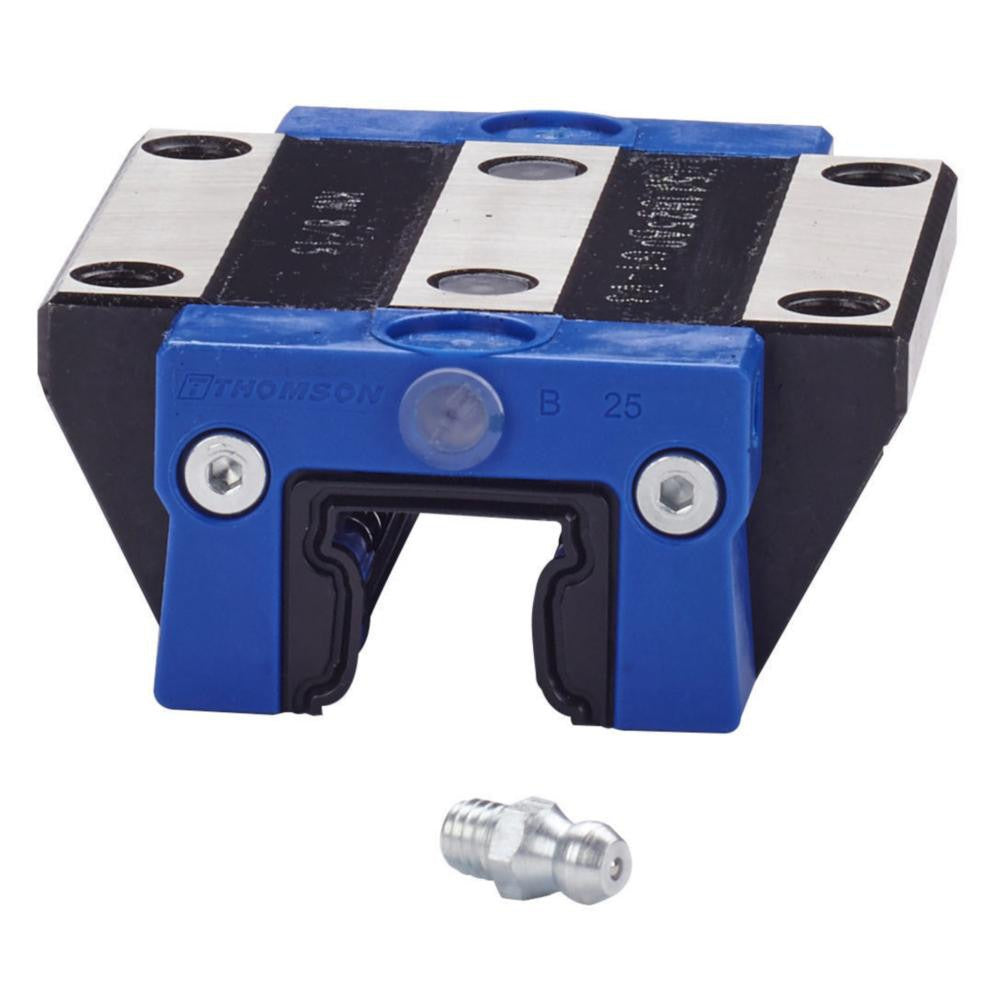

Thomson Industries 511H15A0 Standard Ball Carriage

Product Description

The THOMSON INDUSTRIES 511H15A0 is a standard ball carriage designed for linear motion applications. It provides smooth, low-friction travel along compatible linear rail systems. The carriage measures 2.228 inches in length, 1.85 inches in width, and 0.795 inches in height, with a 16mm overhang and an M5 mounting hole pattern. Constructed from steel, this carriage is built for industrial-grade load handling and repeat positioning tasks. It carries a 4406-unit static load capacity, making it suitable for moderate to high-load linear motion assemblies. Mechanical technicians and automation technicians are the typical installers for this type of component.

The 511H15A0 is used in linear motion systems found in industrial machinery, automation equipment, and precision positioning assemblies. Its compact footprint suits applications where space is limited but structural rigidity is required. The steel carriage construction handles both radial and axial loading conditions common in horizontal and vertical rail configurations. It is a standard Series 500 carriage intended for use in systems requiring consistent, repeatable linear travel.

Key Features

• Steel carriage construction for durability in industrial environments
• 4406 static load capacity for moderate to high-load applications
• Compact form factor: 2.228 inches L x 1.85 inches W x 0.795 inches H
• M5 mounting hole pattern for standard fastener compatibility
• 16mm overhang accommodates standard rail profiles
• Series 500 designation for straightforward catalog cross-referencing

Compatibility

Designed as an OEM-style replacement or direct-fit component for Series 500 linear rail systems requiring a standard ball carriage with a 16mm overhang and M5 mounting hole configuration.

Installation Notes

Installation should be performed by a qualified mechanical or automation technician. De-energize and lock out all power to the equipment before removing or installing the carriage. Ensure the mating linear rail is clean and free of debris before seating the carriage. Do not force the carriage onto the rail; confirm rail profile compatibility before installation to avoid damaging the ball recirculation channels.
