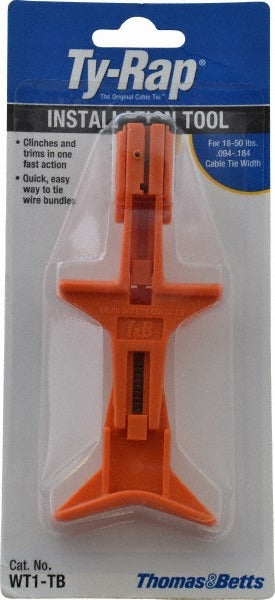

Thomas Betts WT1-TB Cable Tie Installation Tool

Product Description

The THOMAS BETTS WT1-TB is a manual-actuation cable tie installation tool designed for fast, consistent tensioning and cutting of plastic cable ties. Built from plastic construction, this hand tool applies controlled tension to nylon cable ties ranging from 0.094 to 0.184 inches in width and supports tensile strength ratings from 18 to 50 pounds. Electricians, panel builders, and wire harness technicians use this tool to secure cable bundles cleanly and efficiently without over-stressing the tie or leaving a sharp tail. RoHS compliant construction meets common environmental standards for commercial and industrial applications.

This tool is suited for residential and commercial electrical installations, control panel wiring, HVAC equipment wiring harnesses, and general-purpose bundling tasks. Any application that calls for repeatable tie tensioning with a clean flush cut benefits from a dedicated installation tool over hand-tightening. The WT1-TB handles a wide range of standard nylon cable tie widths, making it a versatile addition to a field technician or panel shop toolkit.

Key Features

• Manual actuation — no pneumatic or powered source required
• Compatible with nylon cable ties from 0.094 to 0.184 inches wide
• Supports tensile strength range of 18 to 50 pounds
• Plastic tool body keeps weight low for extended hand use
• RoHS compliant materials
• Single-unit packaging suitable for individual technician use

Compatibility

Designed for use with nylon cable ties ranging from 0.094 to 0.184 inches in width with tensile strengths between 18 and 50 pounds. No specific cable tie model compatibility was provided in the product data.

Installation Notes

This tool is installed and operated by hand — no power source or air supply is required. Before use, confirm the cable tie width and tensile strength rating fall within the tool's specified range to avoid tool damage or improper tensioning. When bundling wiring inside energized panels or enclosures, follow NFPA 70 (NEC) safe work practices and de-energize circuits where required. Inspect the tool periodically for cracks or wear in the plastic body, particularly around the tensioning mechanism.
