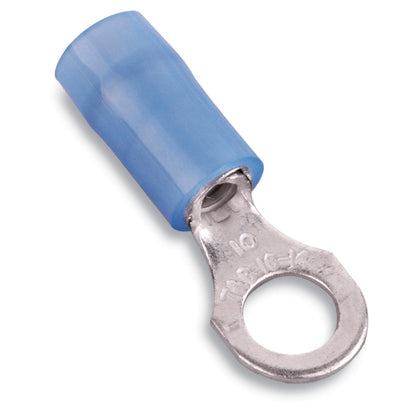

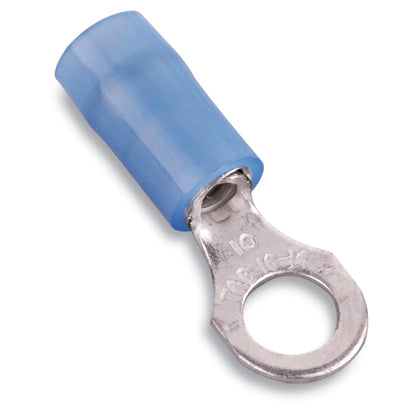

Thomas & Betts RB14-6 Insulated Ring Terminal 18-14 AWG

Product Description

The THOMAS & BETTS RB14-6 is a nylon insulated ring terminal with a length of 0.89 inches and a width of 0.31 inches. It features a maximum insulation of 0.162 inches and is designed for a #6 bolt hole. This terminal accommodates wire sizes ranging from 18 to 14 AWG and is tin plated.

• Nylon Insulated
• Ring Terminal
• Wire Range NO.18-NO.14 AWG

Product Highlights

The THOMAS & BETTS RB14-6 ring terminal ensures secure electrical connections. It is suitable for various applications requiring reliable wire termination.

Product Information

Standard Information

• Brand: THOMAS & BETTS
• Manufacturer Part Number: RB14-6
• Country of Origin: US - United States

Technical Specifications

• Length: 0.89 Inches
• Width: 0.31 Inches
• Maximum Insulation: 0.162 Inches
• Bolt Hole: NO.6
• Wire Range: NO.18-NO.14 AWG
• Material: Copper
• Plating: Tin Plated
• Category: Electrical terminals
• Voltage Rating: 600 V
• Standard: UL E9809
• RoHS: RoHS3 Compliant
• REACH: REACH 240 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Flange shape: Ring shape
• Insulation: PA
• Colour insulation: Blue
• AWG-range: 18-14
• Surface protection: Tinned
• Stud size (imperial): 6
• Packaging: 100 Per Package
• Insulation Material: Nylon
• Rated Voltage: 600V
• Allowable Gauge Range: 18 - 14
