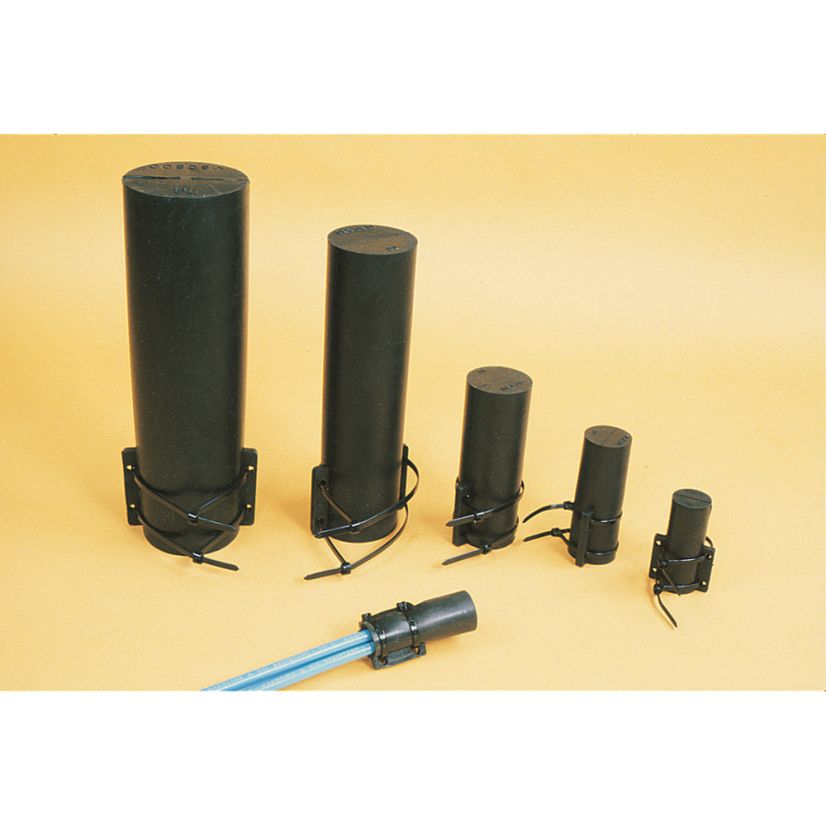

THOMAS & BETTS MSC20 Shrink-Kon Motor Stub Splice Insulator

Product Description

The THOMAS & BETTS MSC20 Shrink-Kon Motor Stub Splice Insulator is essential for insulating motor stub splices. It supports wire sizes from two to two over zero American Wire Gauge (AWG) and is rated for six hundred volts alternating current (VAC). Made of neoprene elastomer, it includes an effective insulating cover, ensuring safety and reliability. To install, simply place the insulator over the bolted splice.

• Fits wire sizes of two to two over zero AWG
• Rated for six hundred VAC
• Manufactured from neoprene elastomer

Product Highlights

Durable construction and reliable insulation properties make this splice insulator necessary for motor applications.

Product Information

Standard Information

• Voltage Rating: 600 VAC
• Wire Size: 2 to 2/0 AWG

Technical Specifications

• Material: Neoprene elastomer
• Color: Black
• Dimensions: 1.385 inches Diameter x 4.25 inches Length
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL File No. E9809, CSA Certified
