Thomas Betts E986F Lb Conduit Body 1 Inch Imc Rigid Pvc

Product Description

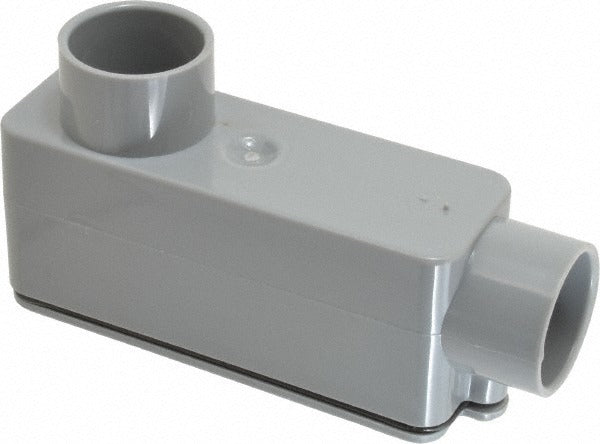

The THOMAS BETTS E986F is an LB-style conduit body designed for use with 1-inch trade size IMC and rigid PVC conduit systems. The LB configuration provides a 90-degree pull point with a rear access cover, allowing wire pulling and splicing at directional changes in conduit runs. The oval body shape offers a 12 cubic centimeter interior volume. This fitting is installed by licensed electricians in both new construction and retrofit wiring projects where conduit direction changes are required.

This conduit body is suited for commercial and industrial electrical installations where IMC or rigid PVC conduit is specified. It is commonly installed at wall-entry and wall-exit transition points, allowing conductors to be routed from vertical to horizontal runs or pulled through angular transitions without damage to wire insulation. The LB body is a standard fitting used wherever the National Electrical Code requires accessible junction or pull points in a conduit system.

Key Features

• LB configuration provides a rear-access 90-degree pull point for conductor routing
• Compatible with 1-inch trade size IMC and rigid PVC conduit
• Oval body shape with 12 cubic centimeter interior capacity
• UL Listed under File E11461 for verified safety compliance
• RoHS compliant construction

Compatibility

Designed for use with 1-inch trade size IMC and rigid PVC conduit systems in standard electrical installations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code and applicable local codes. De-energize the circuit and verify with a voltage tester before working on any conduit run. The access cover must remain accessible after installation per NEC requirements. Do not exceed the conductor fill capacity of the body as determined by NEC fill calculations.
