Thomas & Betts CPL3/4-G Coupling 3/4-Inch

Product Description

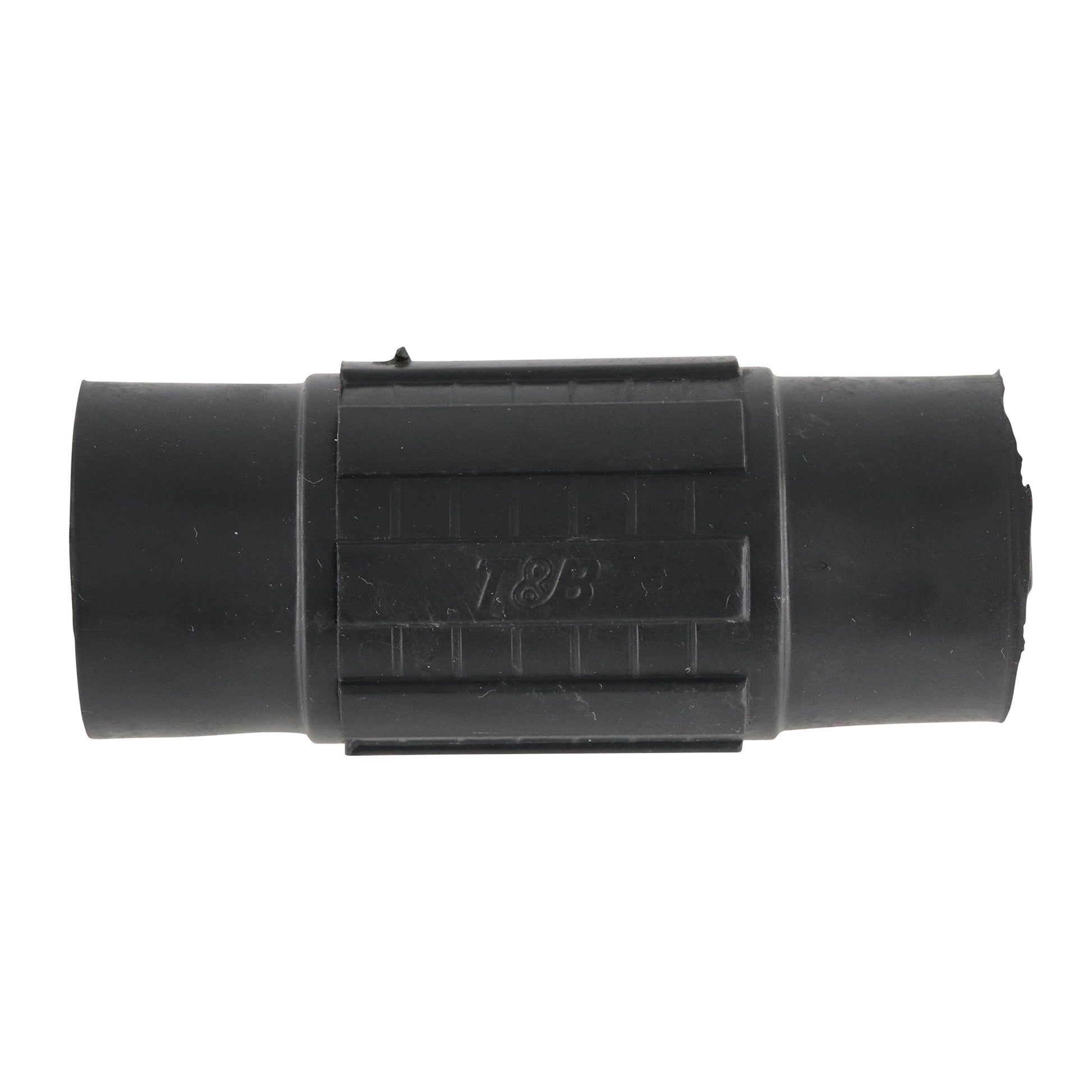

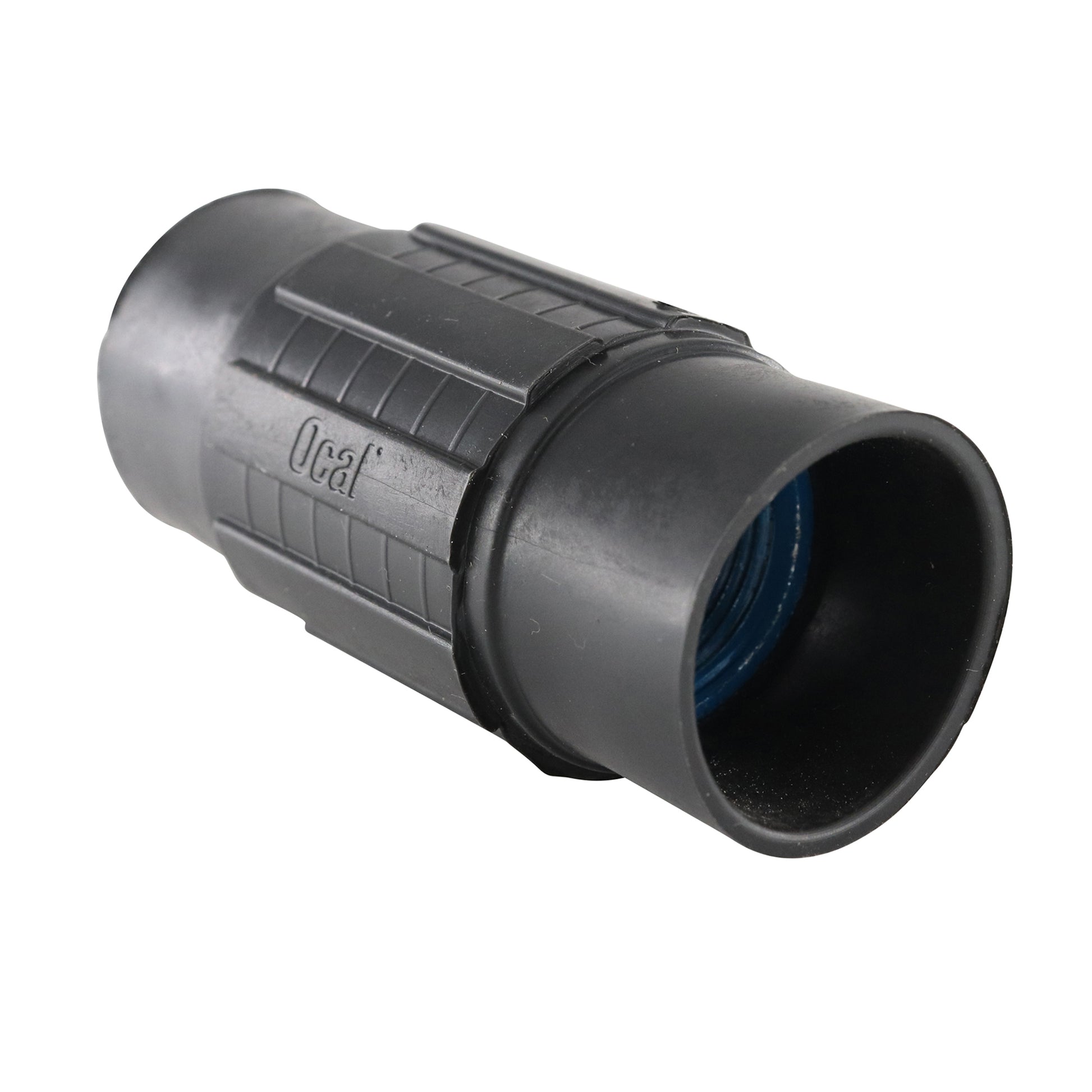

The THOMAS & BETTS CPL3/4-G is a 3/4 inch gray PVC coated steel coupling. It provides corrosion protected connections for conduit sections. Designed for use with rigid conduits, this coupling features pressure sealing sleeves to protect connections and molded ribs on the outer coating for easy installation.

• Pressure sealing sleeves protect connections

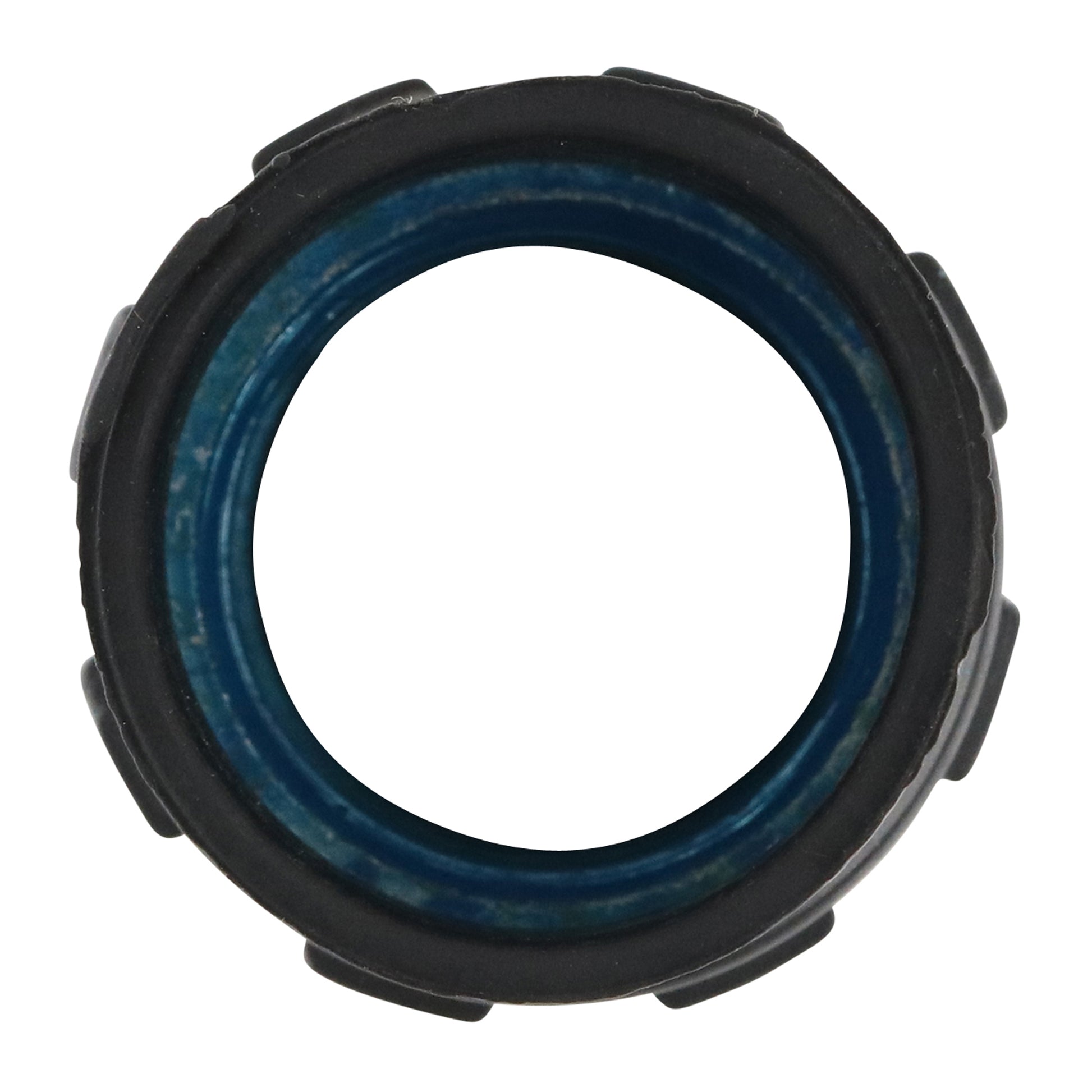

• Blue urethane coating on interior and threads
• Molded ribs on outer coating for easy installation

Product Highlights

This coupling has a galvanized/PVC coated finish and is suitable for use with rigid conduits.

Product Information

Standard Information

• Brand: THOMAS & BETTS
• Manufacturer Part Number: CPL3/4-G
• Country of Origin: US - United States

Technical Specifications

• Color: GREY
• Type: Straight Threaded
• MPN: CPL3/4-G
• Manufacturer: Thomas & Betts Group
• Brand: Thomas & Betts
• Finish: 2 Mil Blue Urethane Coated Interior, 40 Mil Gray PVC Coated Exterior
• Suitable For Use With: Rigid Conduits
• For Use with: Rigid Conduit
• Connection: Female - Female
• Size: 3/4-Inch
• Model: CPL3/4-G
• Package quantity: 1
• Standard: UL E46453 and CSA Listed
• Connection Type: Straight Threads (NPS)
• Material: Galvanized Steel
• Approval: UL, CSA C22.2
• End Type: Threaded
• Applicable Standard: ANSI C80.1
• Trade Size: 3/4 inch
