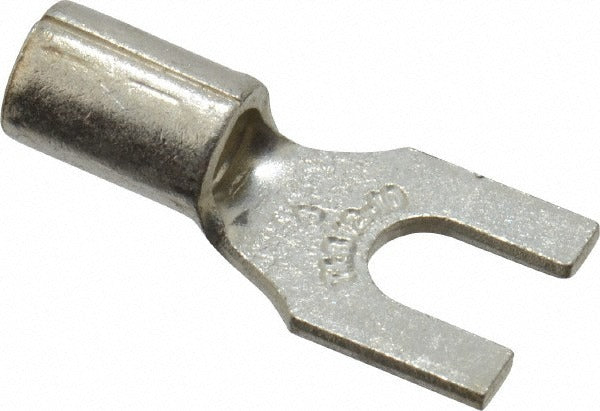

Thomas Betts C10-8F Fork Terminal 8 Stud 600V 50 Pack

Product Description

The THOMAS BETTS C10-8F is a non-insulated, standard fork terminal designed for crimp-style wire termination in electrical assemblies and panel wiring. Rated at 600 volts, this terminal is constructed from copper with a tin (TiN) contact plating for reliable conductivity and corrosion resistance. The yellow color coding aids in quick visual identification during installation and inspection. At 0.82 inches overall length and 0.38 inches fork width, it is sized for a number 8 stud connection. Electricians and panel builders use this terminal where a secure, low-profile ring-free fork connection is needed on a screw or stud termination point.

The C10-8F is suited for use in residential and commercial electrical panels, control panels, switchgear, and equipment wiring applications. Its non-insulated construction is common in applications where insulation is provided by the surrounding assembly or where a clean, compact termination profile is preferred. The crimp connection method provides a gas-tight, mechanically secure joint when applied with the appropriate crimp tooling. This terminal ships in a package quantity of 50 units, making it practical for service work and panel builds alike.

Key Features

• 600-volt rating suitable for standard branch circuit and control wiring applications
• Copper contact material with TiN plating for conductivity and corrosion resistance
• Crimp connection type provides a mechanically secure, gas-tight termination
• Number 8 stud size with 0.38-inch fork width for precise fitment
• Non-insulated, yellow-coded body for fast visual identification
• Meets UL 486A, UL 486B, UL 94 V-0, CSA 22.2, and RoHS requirements

Compatibility

Designed as a standard OEM-style crimp fork terminal for use with number 8 studs in residential and commercial electrical termination applications where a 600-volt non-insulated fork terminal is required.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements. De-energize and lock out the circuit before terminating or inspecting connections. Use a calibrated crimp tool rated for the wire gauge and terminal type to ensure a proper gas-tight crimp. Do not re-crimp a terminal that has already been installed and removed, as this may compromise connection integrity.
