Thomas Betts C10-14 Ring Terminal 10-12 Awg Crimp 50 Pack

Product Description

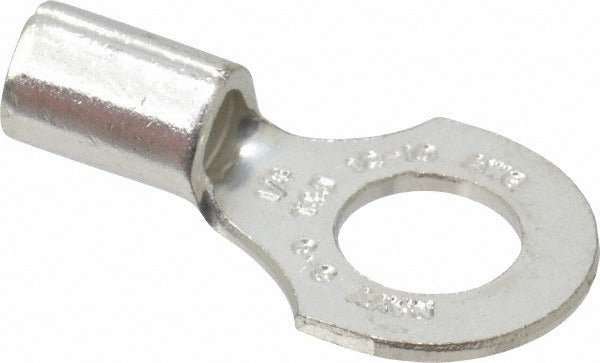

The THOMAS BETTS C10-14 is a non-insulated, D-shaped ring terminal designed for crimp connections on 12 to 10 AWG copper wire. It features a copper contact body with a titanium nitride (TiN) plating and fits a 1/4-inch stud. At 0.91 inches in length and 0.5 inches in width, this terminal is suited for compact termination points in electrical panels, control enclosures, and equipment wiring. It ships in a package quantity of 50, making it practical for service kits and panel builds. Electricians and controls technicians rely on this part for clean, code-compliant ring terminations.

This ring terminal is used in residential and commercial electrical applications where a secure, low-resistance crimp connection is required. Typical installations include control panel wiring, motor terminations, and branch circuit connections where 10 or 12 AWG conductors need to terminate at a screw or stud point. The non-insulated design allows for post-crimp inspection of the conductor and is compatible with standard ratcheting crimp tools rated for the applicable AWG range.

Key Features

• D-shaped ring terminal with 1/4-inch stud size for secure fastening
• Compatible with 12 to 10 AWG wire for versatile application across common circuit sizes
• Copper contact with TiN plating for reliable conductivity and corrosion resistance
• Non-insulated barrel allows visual inspection of crimp after installation
• UL 486A and UL 486B listed, CSA certified, and RoHS compliant
• UL 94 V-0 rated, meeting flammability requirements for electrical components

Compatibility

Designed as an OEM-style crimp ring terminal for use with 12 to 10 AWG conductors on 1/4-inch studs in standard electrical panel and equipment wiring applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating or inspecting any connections. Use a ratcheting crimp tool rated for the wire gauge and terminal type to ensure a gas-tight crimp. Do not solder over a crimped connection, as this can introduce brittleness at the barrel transition.
